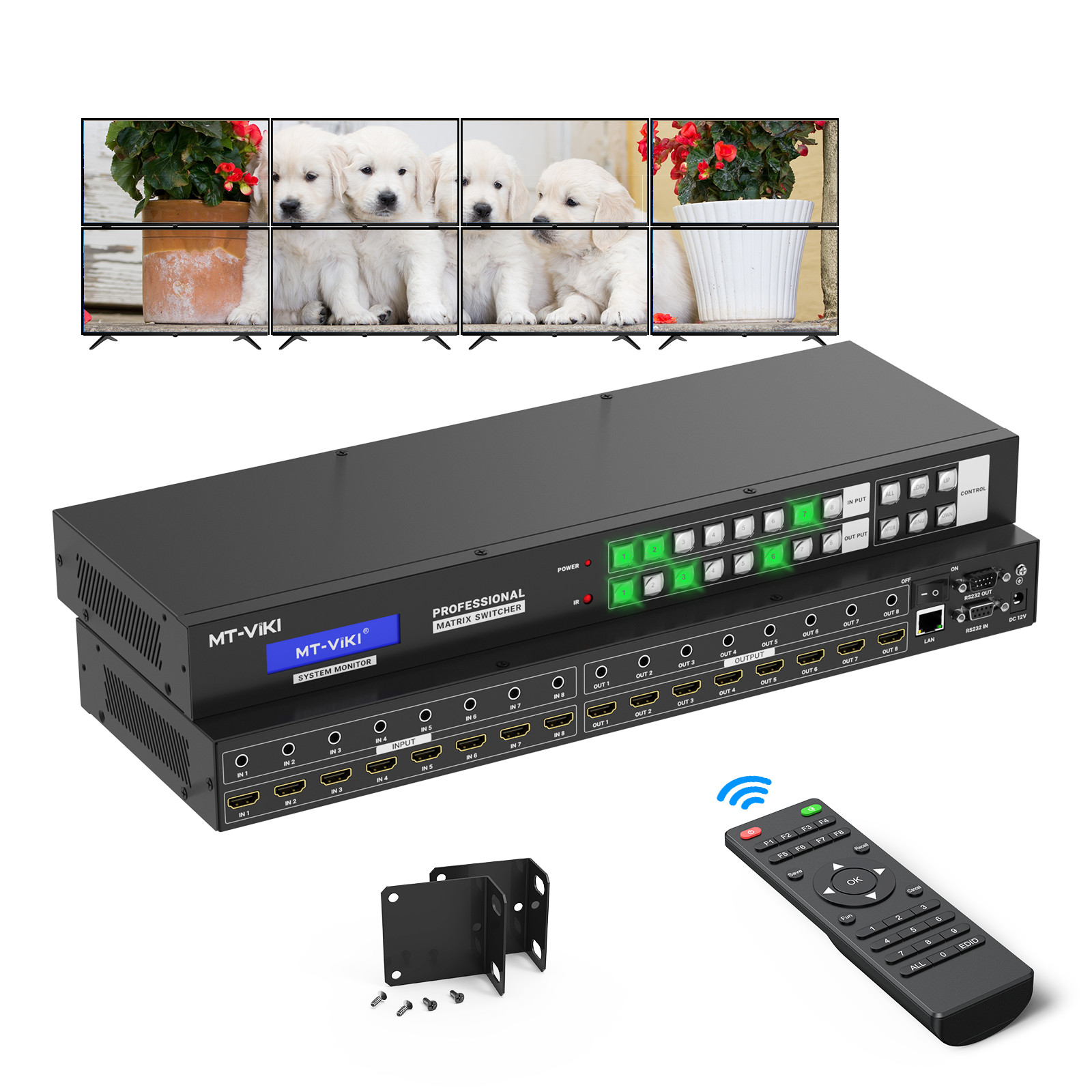

MT-VIKI 4K Seamless multi-functional HDMI Matrix 8X8, MT-HD88LH
This multi-functional HDMI matrix switch has 4 display modes: Split/Splicer/Seamless matrix/Bypass matrix. Only in seamless matrix mode can support seamless switching.
Technical Parameters Input interface： HDMI*8 +3.5MM Audio*8 Power supply： DC 12V 3A Output Interface： HDMI*8 +3.5MM Audio*8 Height： 1U Display method： Mirror, Matrix, Splicing （HDMI Matrix Switch Splitter+ Video wall controller） Power consumption： ≤15w Switch speed： Seamless, 0s Electrostatic Protection： Human Body model:±≤8KV(air discharge), ±4KV(contact diacharge) HDM compatible： HDM1.4 (Downward compatibility) Operating Temperature： 0°C ~ 40°C / 32°F ~ 104°F Resolution： 1080p3D@60Hz、4K*2K@30Hz Storage Temperature： -20°C ~ 40°C / -4°F ~ 104°F Control Methods： Button, IR remote control, RS232, LAN port, WEB GUI, The-third-party Size： 16.9*5.78*1.77inch （430*147*45mm） Color space： RGB,YCbCr4:4:4/4:2:2 Splicing mode： 4x2/2x4/2x2/1x8/8x1/2x3/3x2 etc.
Key Features：1. 8x8 Full Matrix Switching
Effortlessly route any of the 8 HDMI inputs to any of the 8 HDMI outputs independently. Whether you're managing multiple sources in a control center, conference room, or commercial installation, this 8x8 matrix gives you complete flexibility to distribute content exactly where it's needed.
2. Powerful Video Wall & Seamless Switching
This is more than just a switcher—it's a professional video wall processor.
Seamless Switching: Switch between input sources with no black screen, no tearing, no delay. Critical for live events, presentations, and surveillance monitoring where every second matters.
Video Wall / Splicing: Combine multiple displays into a large video wall (e.g., 2x2, 2x3, 2x4, 4x2 configurations). Perfect for command centers, retail displays, and commercial signage.
Note: The 8x8 configuration supports more complex video wall layouts compared to smaller matrices.
3. Comprehensive Audio Embedding & De-embedding
Equipped with independent 3.5mm analog audio input and output jacks for each channel.
Audio De-embedding: Extract digital audio from HDMI signals and output to external amplifiers or sound systems—perfect for connecting to professional audio equipment.
Audio Embedding: Mix external audio (from a microphone or music player) into the HDMI output.
Flexible audio routing allows independent selection of HDMI audio or 3.5mm audio per output.
4. Six Control Methods for Every Scenario
Full flexibility for both simple operation and complex integration:
Visual Front Panel: LCD display with tactile buttons—shows real-time input/output status.
IR Remote: Included remote for quick everyday control.
RS-232 Serial Port: Seamlessly integrates with professional control systems (Crestron, Control4, AMX, etc.)—essential for system integrators.
TCP/IP LAN & Web GUI: Access via any web browser on the same network—no software installation required. Perfect for remote management.
Android/iOS APP: Free mobile app for wireless control from smartphones or tablets.
5. 1U Rackmount Design
Built with a durable metal chassis and standard 1U height. Includes rackmount ears for secure installation in server racks, AV racks, or equipment cabinets. Designed for 24/7 continuous operation with excellent heat dissipation.
6. EDID Management
Built-in EDID (Extended Display Identification Data) management ensures optimal compatibility between sources and displays. Eliminates handshake issues and ensures stable signal transmission across all connected devices.
Application Scenarios：
- Command & Control Centers：Route multiple surveillance feeds to a video wall with seamless switching for real-time monitoring.
- Large Conference Rooms / Auditoriums：Connect 8+ sources (laptops, cameras, video conferencing systems) to 8 displays or projectors.
- Commercial Digital Signage：Create large video walls for retail stores, hotels, and exhibition halls.
- Sports Bars / Hospitality：Display multiple games across multiple screens simultaneously.
- Broadcast & Live Events：Seamless switching and reliable routing for professional production setups.
- Educational Institutions：Manage AV distribution across lecture halls, classrooms, and campus facilities.
Package：
1x Seamless HDMI Matrix 8x8
1x RS232 Cable
1x IR Remote
1x Rack ears & screws
1x Power cable & adapter
1x Ground wire
Scan code for user manual and software
