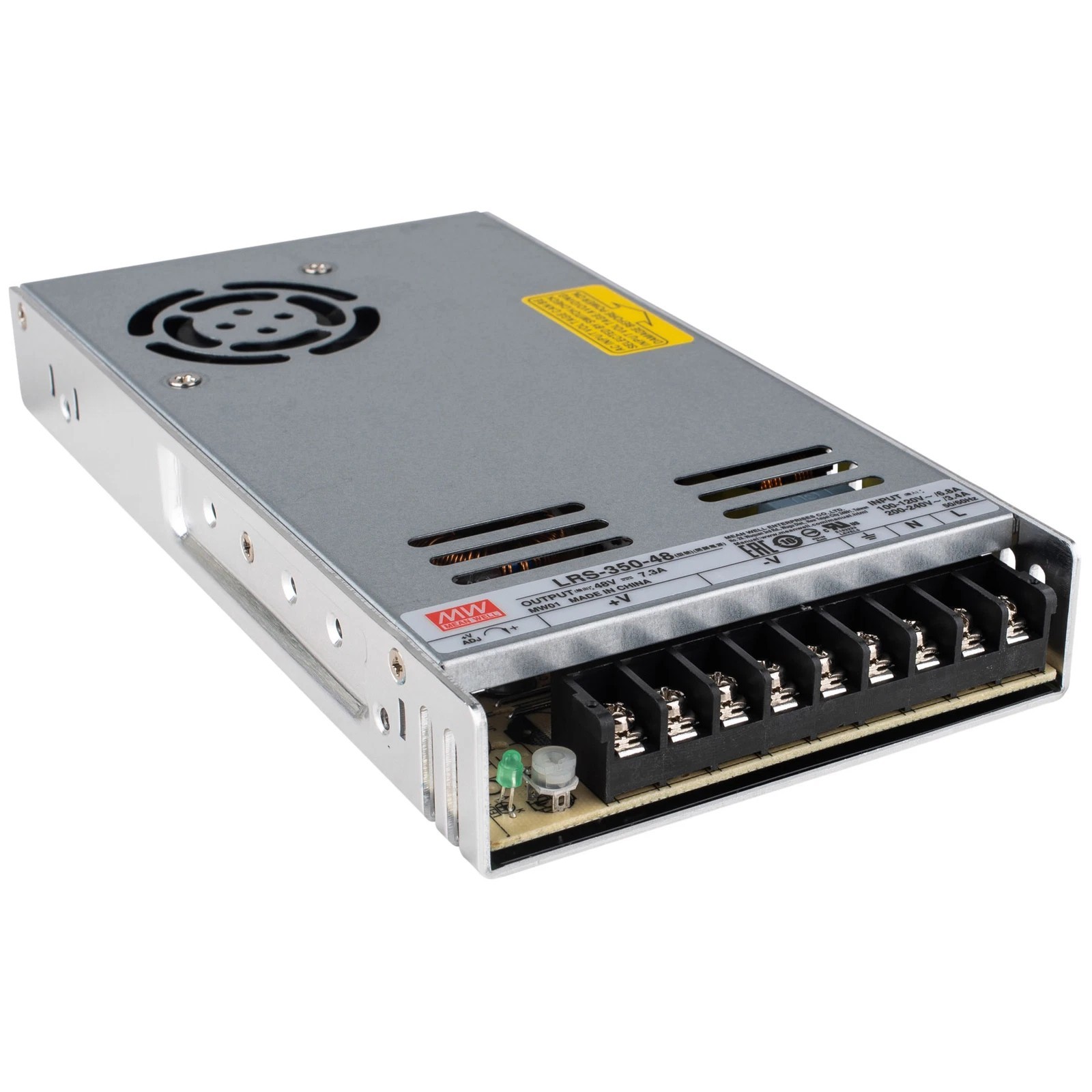

Mean Well LRS-350-48 350.4W 48V 7.3A Single Output Switchable Power Supply For Sale

350.4W 48V 7.3A Single-Output Enclosed Power Supply48 Volts DC @ 7.3 AmpsFeaturesAC input range selectable by a switchWithstand 300 VAC surge input for 5 secondsNo load power consumption <0.75W1U low profileHigh operating temperature, up to 70°CProtections: Short circuit / Overload / Over voltage / Over temperatureBuilt-in cooling fan, ON-OFF controlCompliance to UL 60950-1Withstand 5G vibration testHigh efficiency, long life and high reliabilityLED indicator for power on100% full load burn-in test3 year warrantyApplicationsIndustrial automation machineryIndustrial control systemMechanical and electrical equipmentElectronic instruments, equipment or apparatusRelated ProductsOther voltages in the 350W LRS-350 familyDetailed specificationsPrimary Output Voltage (VDC): 48.0Output Current (A): 7.3Maximum Output Power (W): 350.4Input Voltage (VAC): 90 to 132, 180 to 264Input Frequency: 47 to 63Maximum Input Current (A): 6.8Output Connector Type: Screw Terminal BlockNumber of Outputs: 1Agency Approvals: UL/CUL/CB/CE/EAC/BSMIEfficiency (%): 89Family: LRS-350Product Type: AC to DC Power SupplyMinimum Isolation Voltage: 3000VOperating Temperature-Min (Cel): -25Operating Temperature-Max (Cel): 70Length (inch): 8.5Width (inch): 4.5Height (inch): 1.2Color: SilverStyle: EnclosedOutput Voltage (Channel 1): 48 VDCOutput Current (Channel 1): 7.3 A
