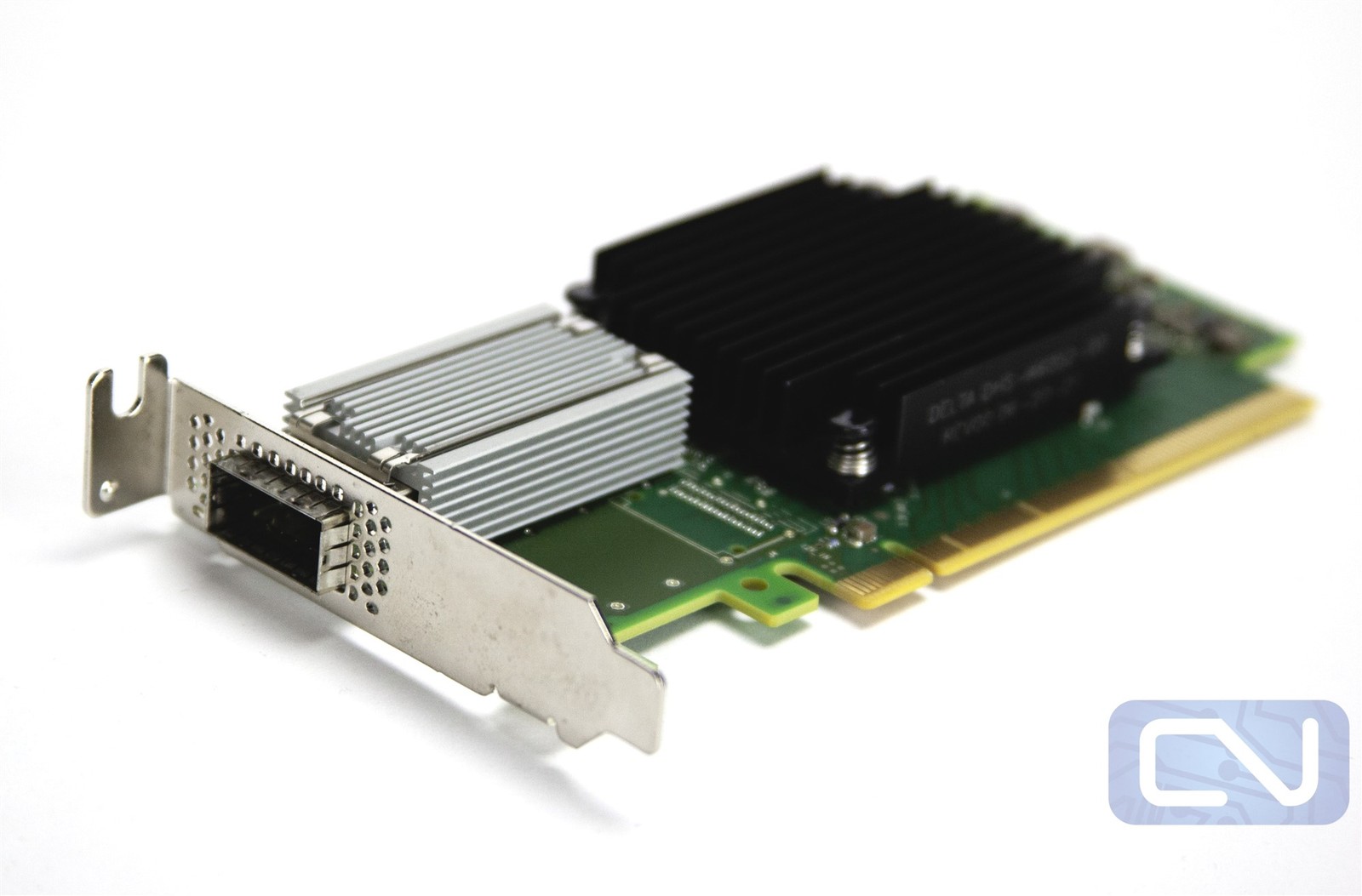

Mellanox MCX555A-ECAT ConnectX-5 100GbE 100G 1-Port QSFP28 NIC Network Adapter For Sale

Brand

Mellanox Technologies (Now Nvidia)

Model Name

ConnectX-5 VPI

Part Number

MCX555A-ECAT

Device Type

Network Adapter Card

Form Factor

Plug-in Card (low-profile)

Host Interface

PCI Express 3.0 x16 (compatible with PCIe 1.1, 2.0)

Network Ports

1x QSFP28

Ethernet Data Rates

1/10/25/40/50/100 Gb/s

InfiniBand Data Rates

SDR/DDR/QDR/FDR/EDR

Data Transfer Rate

100 Gbps total

Protocols Supported

Ethernet (IEEE standards), InfiniBand (IBTA v1.3), TCP/IP, UDP/IP, iSCSI

Dimensions

2.71 in. x 5.6 in. (68.90mm x 142.24 mm)

Cooling

Passive cooling (designed for server airflow)

Typical Power (Passive)

14.2W

Features

Virtual Protocol Interconnect (VPI), RDMA support (RoCE), NVMe-oF offloads, PXE boot support

OS Compatibility

Compatible with various x86, Power, Arm platforms and operating systems

Condition

Used, Low Profile bracket

There is no known MFG warranty. We offer a 90-day warranty within the USA and a 30-day International warranty
