Miller Fluid Power 051-KR011-175 H-Series Rod Seal Kit | 1-3/4\" Rod | Bolted For Sale

Description

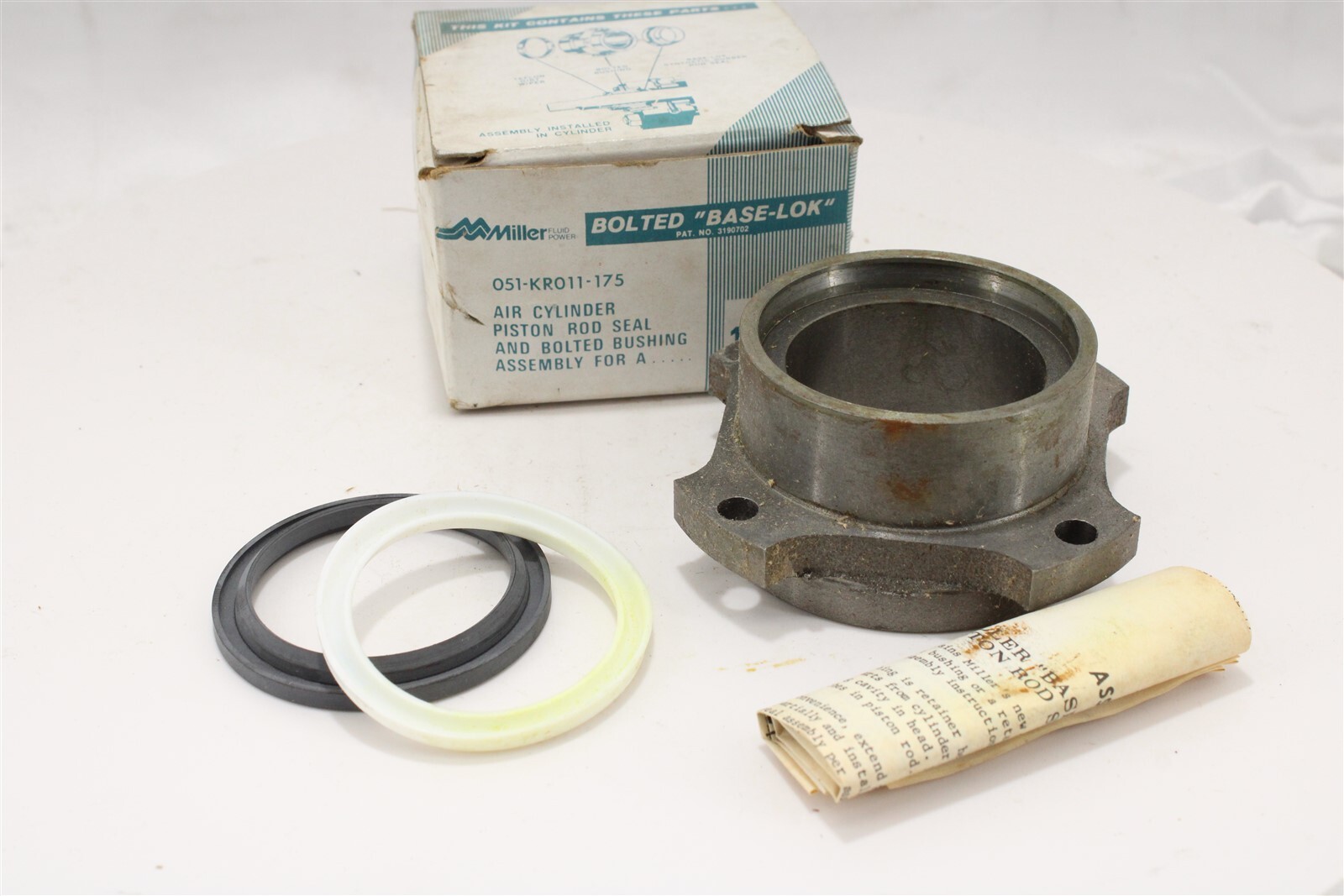

The Miller Fluid Power 051-KR011-175 is a piston rod bushing and seal assembly in the KR011 series, designed for Miller A, J, and H Series cylinders. It is the 1-3/4\" (One and Three-Quarter inch) rod diameter variant with bolted iron bushing retention. Refer to manufacturer documentation to confirm compatibility with your specific application.

This assembly services the rod gland of Miller air cylinders, providing the bushing, rod seal, rod wiper, and bolted retainer hardware required to restore rod sealing on the head end of the cylinder. The bolted bushing design is the standard retention method used across Miller H Series cylinders; on bore/rod combinations where the bolted bushing would interfere with tie rod nuts, a retainer-held bushing (KR010 series) is used instead — confirm your cylinder\'s gland construction before ordering.

Miller H Series cylinders are rated for operating pressures up to 3000 PSI; the rod gland seal assembly must match the cylinder\'s rod diameter exactly. The suffix -175 encodes the rod diameter as 1-3/4\" (1.75\"), consistent with the Miller seal kit part numbering convention across the entire KR011 size range.

• Brand: Miller Fluid Power (Parker Hannifin)
• MPN: 051-KR011-175
• Type: Piston Rod Bushing and Seal Assembly (Bolted Bushing Gland Kit)
• Series: KR011 — Bolted Iron Bushing
• Rod Diameter: 1-3/4\" (1.75 in)
• Bushing Retention: Bolted (Iron)
• Applicable Cylinder Series: Miller A Series (Air), J Series, H Series
• Suitable Media: Compressed Air (Air Cylinder Service)
• H Series Cylinder Max Operating Pressure: 3000 PSI
• Country of Manufacture: United States

Condition: New — Open Box. Sourced from manufacturing MRO turnover, plant closures, and industrial surplus; the part is new and unused but may have been in storage for years. Packaging may show shelf wear or be missing.
