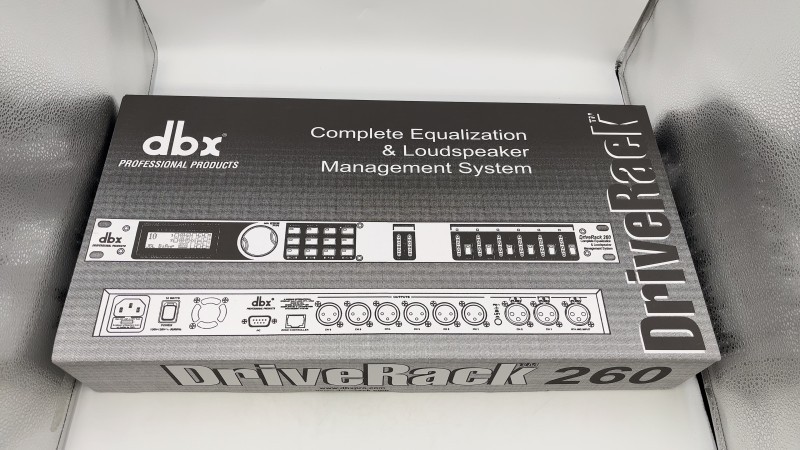

The dbx DriveRack 260 Loudspeaker Management System is a processor designed for complete system control of equalization,
dynamics, and routing possibilities in live or contractor sound applications. Its powerful processing includes both a linkable 28-band graphic and a 9-band parametric EQ,
while system dynamics are controlled by the built-in compressor. Further component protection is provided by DBX\'s PeakStopPlus limiters,
which help protect against too much power and sudden transient spikes.
Before users adjust the EQ, they may want to utilize the internal pink noise generator and real time analyzer to get familiar with the room acoustics.
In addition, an easy to assign, flexible alignment time delay and handy 15V phantom powered mic input are also provided for further room management and control.
The goal of a high-quality control processor is to help \"dial in\" a room and contribute to the overall system performance without directly interfering with audio integrity.
Custom templates are built-in for specific amplifier and speaker combinations with user setups easily adjusted using the Wizard setup system and complete DriveWare GUI control.
An outstanding tool for maximizing audio quality in a number of environments,
the DriveRack 260 is derived from an already proven series of processors and continues the tradition of providing flexible system control using simple, intuitive interfaces.
Compression and limiting
Graphic and parametric equalization
Full bandpass, crossover, and routing configurations
response elimination
Built-in subharmonic synthesizer
Pink noise generator and full-time RTA
2.7 seconds of alignment and zone delay
Auto-EQ function
Auto-gain control
DBX Driverack 260 Specifications | Product Specs
Frequency Response
20 Hz to 20 kHz
Dynamic Range
110 dB unweighted
>107 dB weighted
Input Connections
2 x XLR female
1 x XLR RTA Mic
Output Connections
6 x XLR male
Input Impedance
>40 kOhms
Output Impedance
120 Ohms
Maximum Input Level
34 dBu with input jumpers in +30 position
Maximum Output Level
22 dBu
Sample Rate
48 kHz
RTA Mic Phantom Voltage
15 V
Crosstalk (Main Outputs)
>100 dB
THD & Noise
0.002% typical at +4 dBu, 1 kHz, 0 dB input gain
Packaging Info
Package Weight
8.75 lb
