Specification:
Dual 15-band, 1/3-octave Constant Q frequency bands
Switchable boost/cut ranges of ±6 or ±12 dB
Front panel bypass switch
±12 dB input gain range
4-segment LED ladders for monitoring output levels
XLR and TRS Inputs and Outputs
Frequency Response of <10Hz to >50kHz
Dynamic range of greater than 108dB
Inputs:
Connectors: 1/4 inch TRS, female XLR (pin 2 hot)
Type: Electronically balanced/unbalanced, RF filtered
Impedance: Balanced 40k ohm, unbalanced 20k ohm
Max Input Level: >+21dBu balanced or unbalanced
CMRR: >40dB, typically >55dB at 1kHz
Outputs:
Connectors: 1/4 inch TRS, male XLR (pin 2 hot)
Type: Impedance-balanaced/unbalanced, RF filtered
Impedance: Balanced 100 ohm, unbalanced 50 ohm
System Performance:
Bandwidth: 20Hz to 20kHz, +0.5/-1dB
Frequency Response: <10Hz to >50kHz, +0.5/-3dB
Dynamic Range: Typically >112dB
Signal-to-Noise: Typically >95dB
THD+Noise: <0.003%
Interchannel Crosstalk: <-90dB, 20Hz to 20kHz
Function Switches:
EQ Bypass: Bypasses the graphic equalizer section in the signal path
Low Cut: Activates the 50Hz 12dB/octave high-pass filter
Range: Selects either +/- 6dB or +/- 12dB slider boost/cut range
Power Supply:
Operating Voltage: 100VAC-240VAC 50/60Hz
Power consumption: 15W
Mains Connection: IEC receptacle

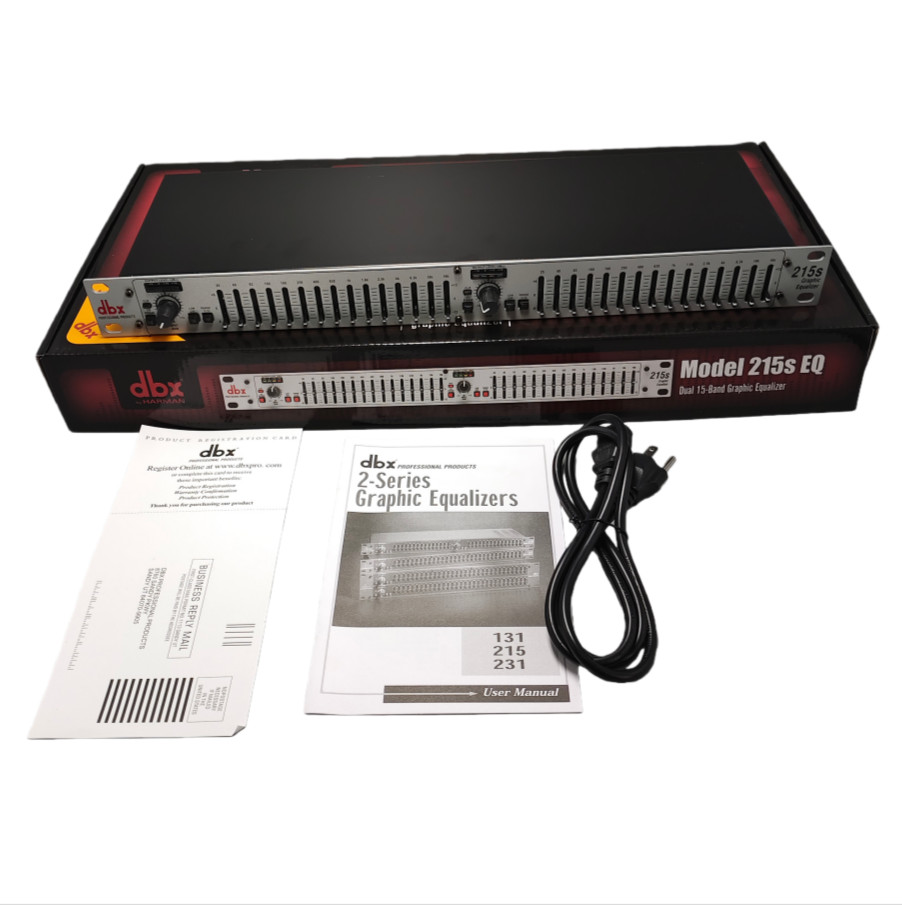

Package includes:
As shown in the figure
