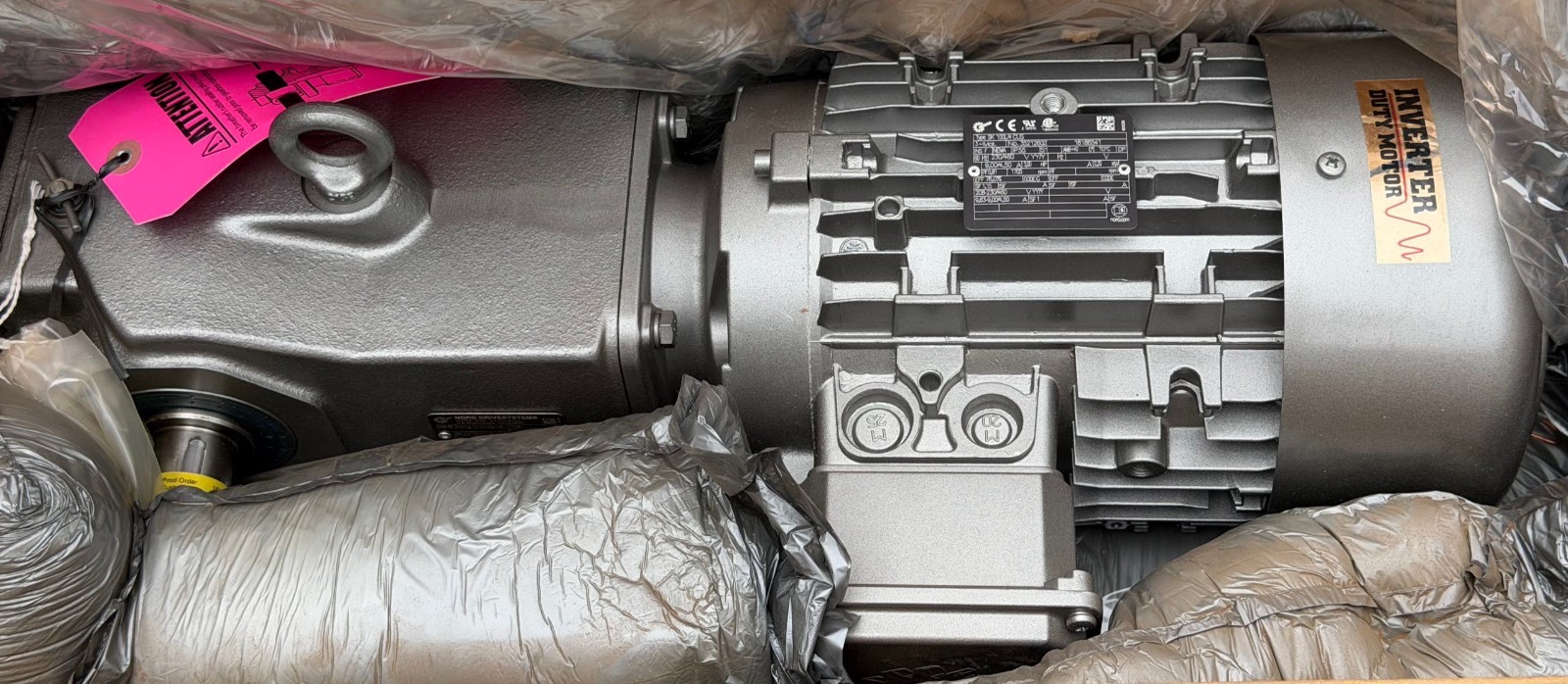

NORD DRIVESYSTEMS 3 HP GEAR MOTOR WITH GEARBOX WITH OUTPUT SHAFT:
$550.00
- Manufacturer: NORD Drivesystems / NORD Gear
- Motor Model: SK 100L/4 CUS
- Gearbox Model: SK 9012.1-100L/4 CUS
- Motor Power: 3 HP
- Voltage: 230/460 VAC
- Phase: 3 Phase
- Frequency: 60 Hz
- Full Load Amps: 9.0 / 4.5 A
- Motor Speed: 1,705 RPM
- Frame: 100L
- Service Factor: 1.15
- Insulation Class: F
- Enclosure: TEFC
- Protection: IP55
- Duty: S1 Continuous Duty
- Power Factor: 0.81
- NEMA Code: G
- Ambient Temperature: 40°C
- Type: Right Angle Speed Reducer
- Gear Type: Helical-Bevel
- Model: SK 9012.1-100L/4 CUS
- Output Speed: 41.65 RPM
- Output Torque: 4,542 lb-in
- Mounting Position: M1
- Output: Shaft
- Lubricant: Mobil 600 XP220
- Oil Capacity: 0.74 qt
- Gearbox Weight: Approximately 90 lb
Everything shown in the photographs. Please donot assume that accessories, mounting hardware, documentation, or othercomponents are included unless they are pictured.
|
|
