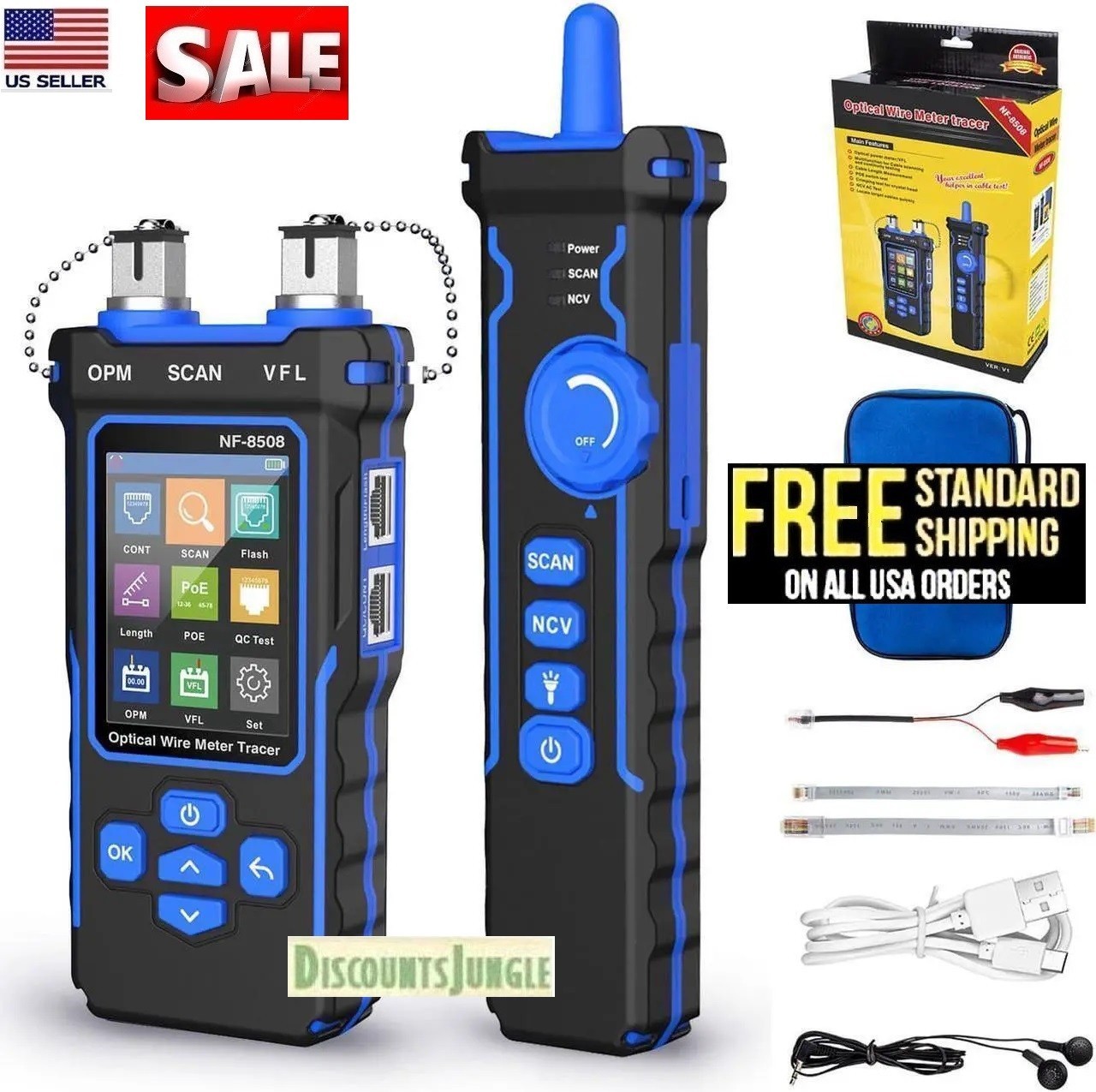

NOYAFA NF-8508 Optical Wire Meter Tracer, a 9-in-1 LAN Ethernet cable tester:
$57.95
Brand New. Factory Sealed. Warranty. Fast Free Shipping NF-8508 9 in 1 Multifunctional Network Cable Tester Optical Wire Tracer Optical Fiber Power Meter NCV Function Li-ion Battery USB Charge LED Light - Two scan modes selectable: AC filter /Analog mode, up to 300m.
- Measure cable (cat5/6) length accurately , the range is 2.5~200m.
- Hub blink for locating network port by the flashing port light on Hub / Switch. Available to 10M/100M/1000M Hub/ switch.
- It supports to test physical status for STP, UTP lan cable and detect the crimping condition of the crystal head.
- PoE testing : identify which pins are providing power and detect how much voltage, identify which the type of PSE (at/af standard) .
- OPM&VFL: Measure 6 standard wavelengths 850/980/1300/1310/1490/ 1550/1625/1650nm , test range: -70dBm~+10dBm, 10mw red light source (Check fiber breaks, damaged)
- NF-8508 is a very fashionable and beautiful optical power line finder both in appearance and design. The large LCD screen is clear at a glance and has complete functions. It integrates nine functions, network cable continuity testing, cable scan, port flash, length measurement, poe test, QC testing, optical power meter, VFL function, NCV function. It has bright LED lighting, can solve the trouble of dark work. It's built-in 3.7V 1500mAh polymer lithium battery, charging with USB interface, convenient and durable.
It is widely used in engineering wiring, equipment room maintenance, equipment update and other scenarious target cable.
Specifications
:
Cable type: CAT5/CAT6
Voltage protection: 60V
Battery: Type C charge
Transmitter function:
Continuity: wire map port RJ45, max range 300m, STP/NTP, digital modeland analog mode
Cable scan: frequency 455KHz
Port flash: quickly and exactly find out the target cable port to improve work efficiency
length: 20M+/- 1.6M, 20M-100M +/- 2.4M, 100M +/- 3.2M
PoE: quickly identify PoE device, standard/non standard, end connection /Middle jumper/powered by 8 cores, PoE power supply
NVL: 10Mw
OPM: 850/1300/1310/1490/1550/1625 (wavelength)
Crimping: RJ45-8 cores, min length 10cm
Lower voltage warning: <3.5V +-0.1V
Power supply: 3.7V 1500mAh polymer lithium battery
Transmitter size: 148x70x32 mm
Receiver function:
Sensitivity adjustable
Max range: 300M
Digital model and analog mode
Max working current 300mA
NCV
Lamp
Lower voltage warning
Power supply: 3.7V 1500mAh polymer lithium battery
Receiver size: 198x50x28 mm
|
|
