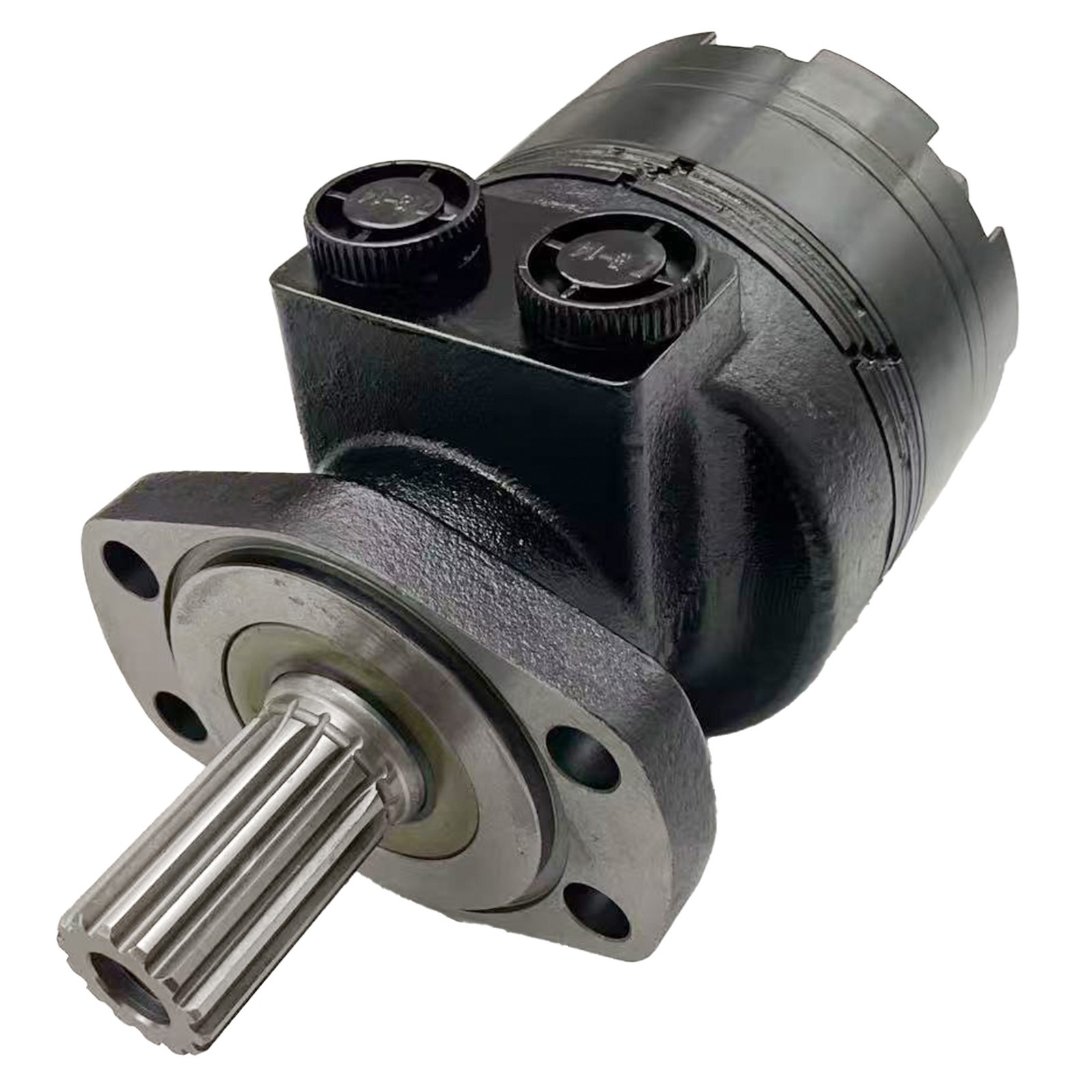

New Hydraulic Motor TG0310MS051AAAA TG0310 Series 4 Bolt for Parker:
$599.00
Product Overview
Model: TG0310MS051AAAA This is Parker TG Series Torqmotor low speed high torque orbital hydraulic motor, widely known as LSHT motor. Rugged heavy-duty design built for mobile hydraulic equipment, delivers stable high torque at low rotating speed, direct bolt-on replacement for original motor assembly.
Technical Specifications
- Model No.: TG0310MS051AAAA
- Type: Low Speed High Torque (LSHT) Orbital Torqmotor
- Displacement: 310 cm³/rev (18.9 cu in/rev)
- Max Continuous Flow: 20 GPM
- Intermittent Flow: 25 GPM
- Max Continuous Speed: 303 RPM
- Continuous Torque: 8184 in-lbs
- Intermittent Torque: 10817 in-lbs
- Mount: SAE "A" 4-hole magneto flange
- Shaft: 1-1/4", 14 tooth splined shaft
- Ports: #10 ORB SAE ports
- Rotation: Reverse rotation
- Seals: Standard mineral oil seals
- Weight: approx 15.7 kg (34.7 lbs)
