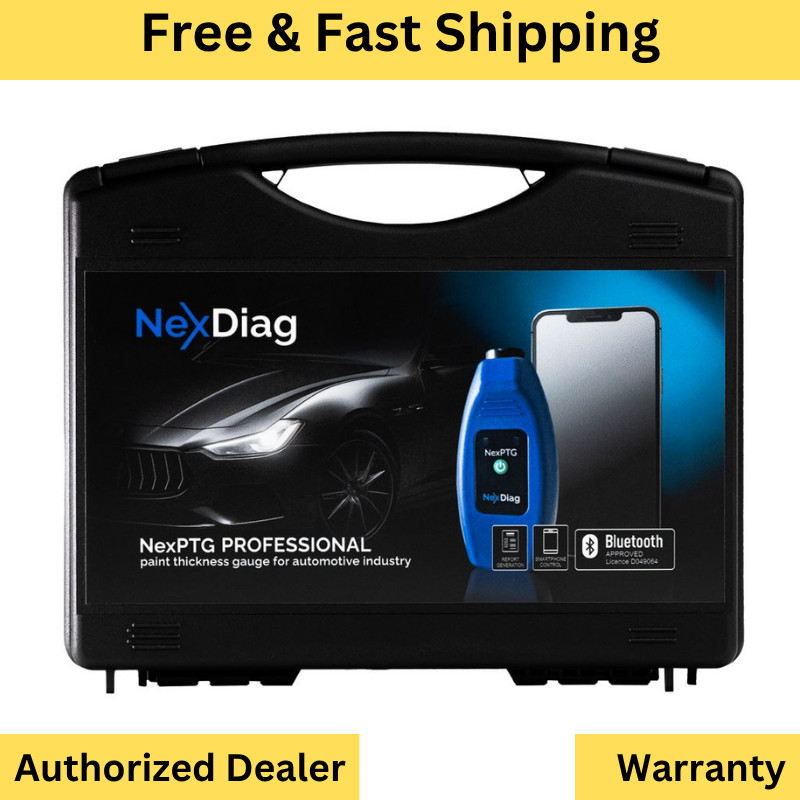

NexDiag NexPTG Professional Paint Coating Thickness Gauge
Professional Wireless Paint Depth & Coating Thickness Measurement Device
The NexPTG Professional is one of the most innovative wireless paint thickness gauges available. It performs up to 10 measurements per second, delivers highly accurate readings, and automatically recognizes steel, galvanized steel, and aluminum substrates.
An advanced version of the NexPTG, lacquer thickness gauge, which enables fast, accurate and intuitive vehicle testing. The Professional version has a movable head allowing for precise measurements on concave and convex elements.
Key Features
- Wireless Bluetooth 4.0 LE connectivity
- Professional report generation
- Spherical probe for curved surfaces
- Automatic substrate recognition
- Up to 4,000 measurement memory
- Dedicated NexPTG mobile application
- Fast and accurate vehicle inspection
- Compatible with iOS and Android devices
Why Choose NexPTG Professional?
The Professional version provides even greater measurement accuracy than the Standard and Advanced models. It is specifically designed for users who require reliable paint thickness analysis on both flat and curved vehicle surfaces.
- Improved inspection speed with suggested measurement points
- Automatic identification of substrate type
- Professional reporting tools for customers and records
- Accurate testing on complex body panel shapes
- Commercial and personal use supported
NexPTG has a dedicated application. You can install it on any mobile device equipped with iOS or Android. The dedicated application will allow you to examine the lacquer coat with unprecedented accuracy and precision. Professional Reporting
Using the dedicated NexPTG mobile application, you can generate detailed inspection reports containing measurement results, vehicle information, and company branding.
Reports can be customized with your logo, exported, and shared directly with clients, helping increase professionalism and customer confidence.
What\'s Included
- NexPTG Professional Device
- Calibration Set
- User Manual
- Set of Alkaline Batteries
- Protective Tool Case
Technical Specifications Specification Details Testing Substrates Steel (Fe), Galvanized Steel (Fe+Zn), Aluminum (Al) Recognized Substrates Fe, Fe+Zn, Al Measurement Range 0 – 98.43 mils Probe Type Movable Spherical Probe Curved Surface Measurement Yes Resolution 0.04 mils Memory Capacity Up to 4,000 Measurements Wireless Connection Bluetooth 4.0 LE Supported Systems iOS & Android Free Demo Application
- Download and install the NexPTG app.
- Launch the application.
- Select Demo Mode from the main screen.
- The app will simulate NexPTG Professional measurements.
- Explore the application\'s features without owning the device.
Professional Vehicle Paint Inspection Made Easy
Fast • Accurate • Wireless • Mobile App Enabled ```
