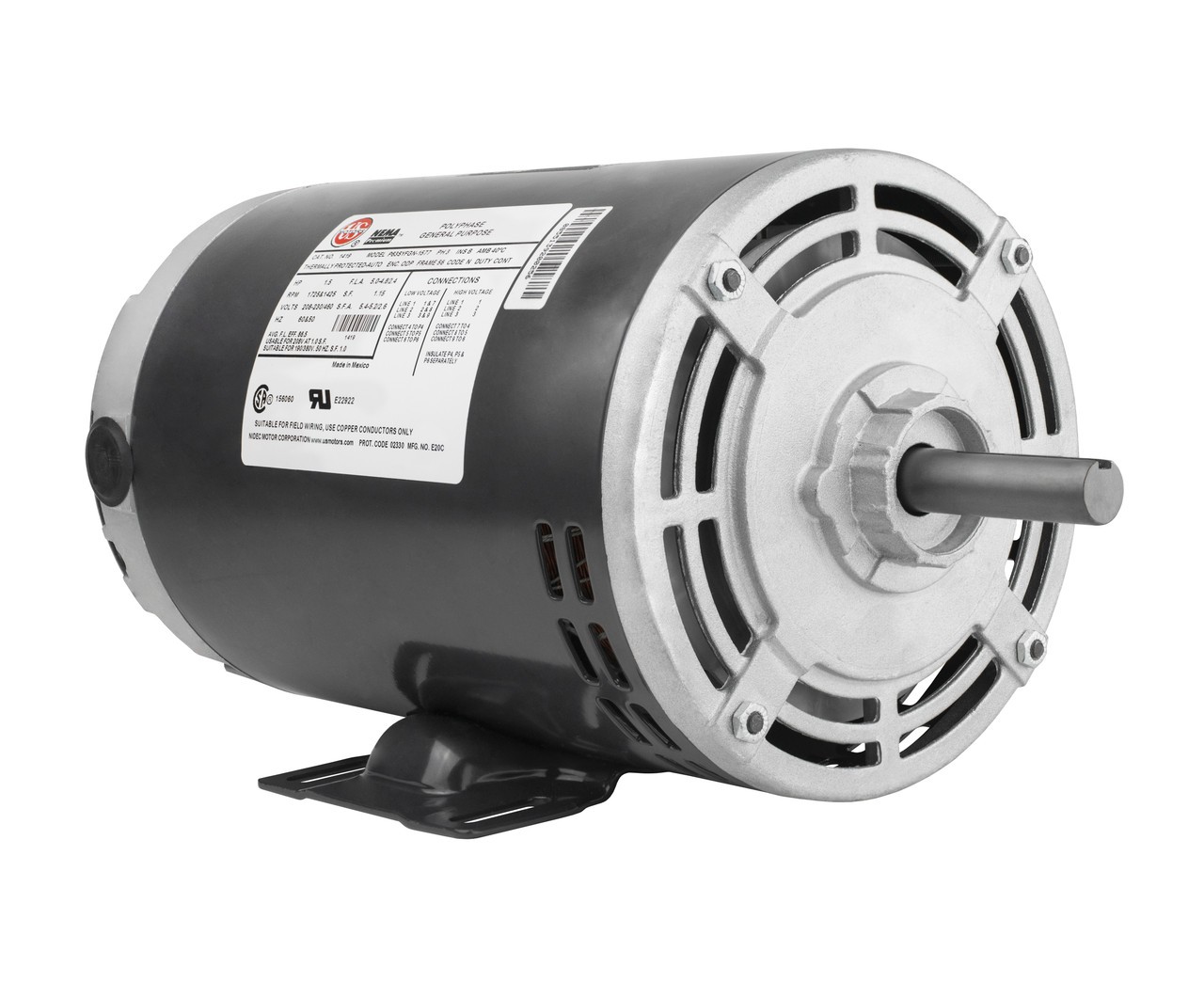

Nidec 1419 Electric Motor. 1.5 hp 1725 RPM 208-230V Carrier Replacement Motor.
1419 1.5 hp 1725 RPM 1-Speed 208-230V, 5.0-4 0.8 amps 3 phase power only NEMA 56 Frame, Shaft 5/8 in x 2 in Service Factor: 1.15 Continuous Duty 50/60hz rated Auto Overload Protection - Ball Bearings Class B Insulation Open Drip Proof Rigid Base Mounting Electrically Reversible Overall Motor Length = 12.89 inches, name plate shows wiring diagram Nidec replaces Carrier, Bryant, Payne HD56FL652 Frame Cross Ref: P63SYFGN-1577, HD56FL652, HD56FL651, 40LW35, HD56FE652, 5K49MN4250FZ, 1419Notes: Usable for 208V at 1.0 factor, Suitable 190/380V 50HZ., factor
Specifications
- Brand: Nidec
- Part number (MPN): 1419
- Type: Electric Motor
- Horsepower: 1.5 hp
- Maximum RPM: 1725
- Voltage: 208-230 V
- Frame Size: 56
- Amperage: 4.8 A
Condition
Used – top tier. Top-tier used condition. Inspected and bench-tested by our technicians before listing. May show minor cosmetic handling marks or shelf wear; fully functional.
What is included
One (1) Nidec 1419. Capacitors, brackets, fan blades, wiring accessories and mounting hardware are not included unless shown in the photos.
Before ordering
Confirm horsepower, RPM, voltage, rotation, shaft dimensions, frame and mounting against the unit you are replacing. Message us before ordering if the application is uncertain.
Shipping and returns
Ships fast and well packed from our Michigan warehouse. 30-day returns.
