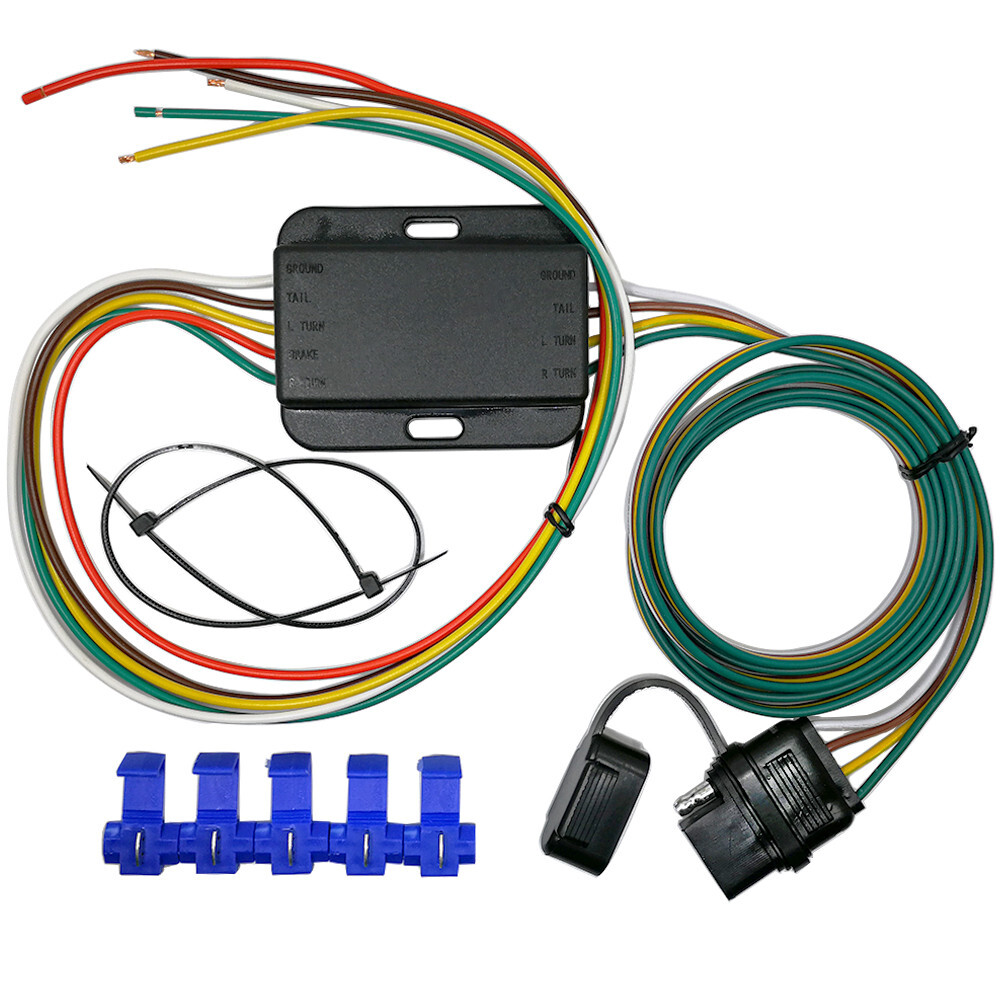

This taillight converter is specifically designed for use with tow vehicles that have LED lights and it doesn't require an extra wire to the battery. Harness splices into existing wiring to adapts your tow vehicle's 3-wire, separate tail light system to the trailer's 2-wire combined system and provide a standard 4-way flat connector socket to plug in your trailer, all hardware necessary included for easier
Adapts your 3-wire vehicle electrical system to standard 2-wire trailer wiring Hardwires to existing harness behind vehicle's tail lights Provides 4-wire flat, vehicle-end connector at the back of your vehicle to power your trailer's signal lights 4-way flat output connects tail lights, brake lights and turn signals Stores in the trunk, cargo area, or underneath the vehicle and out of harm's way Compatiable with both import and domestic vehicles with separate turn and stop lights Specs:
- Power: up to 2.1 amps per circuit
- Pigtail lead length: 20"
- Output Type 4-way flat
Wiring configuration:
- White: ground wire
- Red: brake light
- Green: right turn signal
- Yellow: left turn signal
- Brown: park/tail lights
*WARNING - Color coding may not standard among all manufacturers. Match the wire on the converter with the same function wire on the tow vehicle*
Frequently Asked Questions:
1.Does this converter works on my vehicle.....?
This is a universal converter, should work on any vehicle if directions are followed and connections are made properly. Only you have to splice some wires.
2.Does it Require Running A Wire to the Battery?
NO. It doesn't require an extra wire to the battery.
