Notifier SCS8L-CBL48 48\" Cable For SCS-8L/SCE-8L For Sale

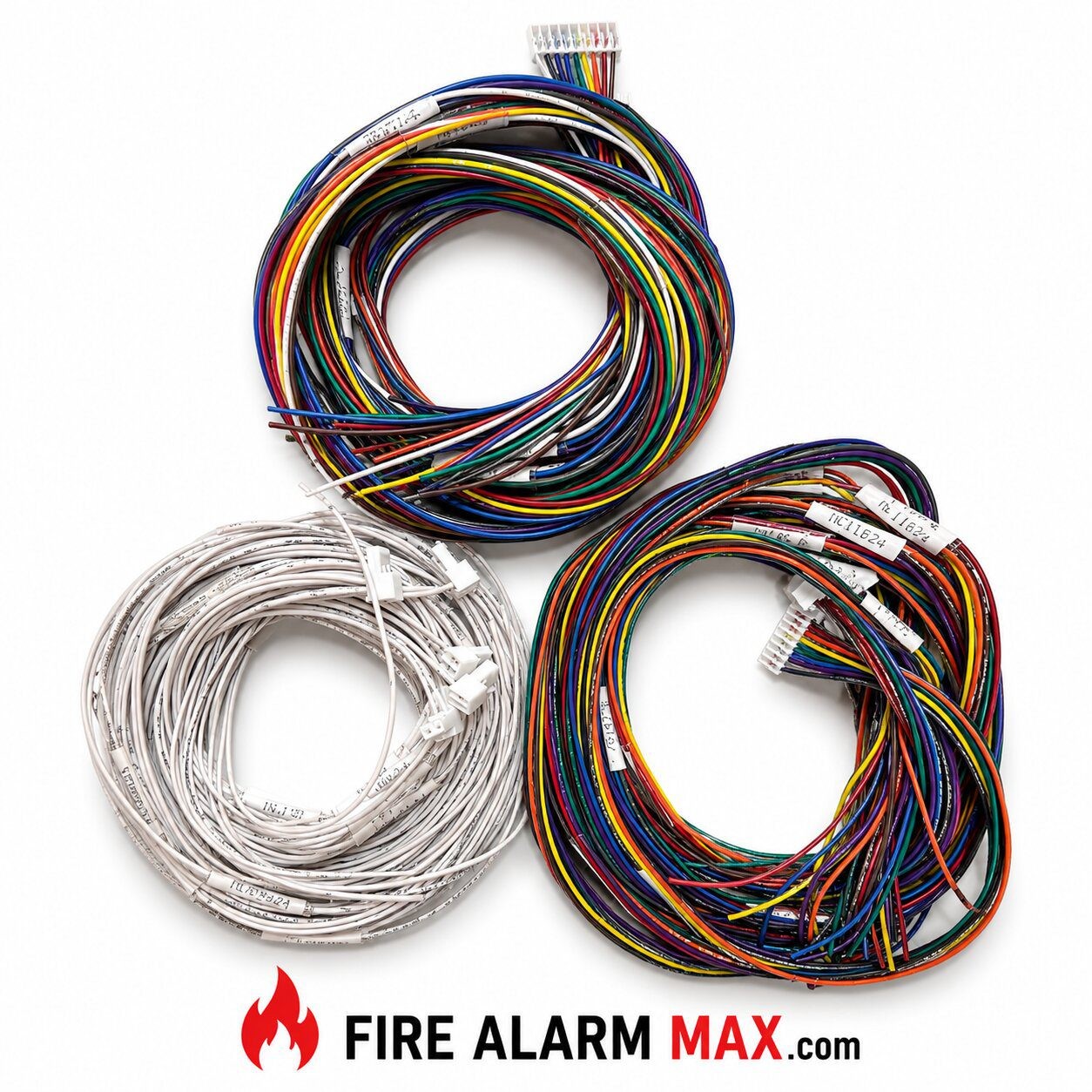

Notifier SCS8L-CBL48 Cable

This series includes the SCS-8 and SCE-8 Smoke control modules and the SCS-8L and SCE-8L lamp driver versions.
The SCE – used with the SCS, expanding the capability to control and monitor a total of 16 switch groups. One SCE Smoke Control Expander can – used to increase the number of switch groups. Up to 32 annunciator addresses – supported on NOTIFIER systems. This provides a maximum capability to control and monitor 512 separate switch groups.
The SCS-8L and SCE-8L lamp drivers – configured with a UL-Listed Custom Graphic Annunciator.
Features

The SCS-8/SCE-8 or SCS-8L/SCE-8L is capable of two modes of operation:

Firefighter’s Smoke Control Station (FSCS) or Heating, Ventilation, and Air Conditioning (HVAC).

IN THE FSCS MODE:

The SCS/SCE can: help maintain a tenable environment in evacuation routes. Help restrict the movement of smoke from the fire area. Help provide conditions in nonsmoker areas that will assist fire official’s search. Rescue operations and to find and combat the fire. Assist in protecting life and property.
Optional features for FSCS mode include support for redundant smoke control stations. Pairing and adjustable trouble timers.

IN THE HVAC MODE:

Has the capability to monitor and control the building’s heating. Ventilating and air conditioning. The HVAC mode is not consistent with UL and NFPA standards for smoke control. This mode should – used for fan shutdown and building heating, ventilating, and air conditioning purposes only.
Communication to the SCS – accomplished over a two-wire serial interface employing an EIA-485 communication standard.
Power is provided via a separate 24 VDC regulated power loop. If power – lost, a trouble signal will result at the control panel.
Each module has eight independent switch groups as well,

The SCS-8L/SCE-8L modules must – installed in a UL-approved Custom Graphic Annunciator panel.
