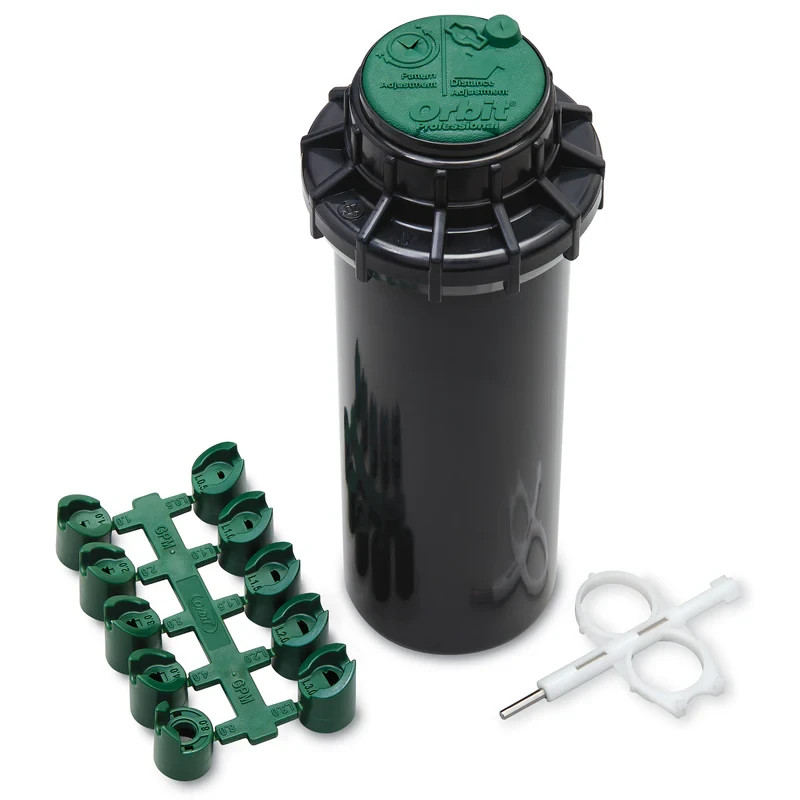

ORBIT 55661 VOYAGER II POP-UP GEAR DRIVE SPRINKLER NEW/SEALED For Sale

• Adjustable spray distance from 25 to 52 ft., the longest throw in its class, so fewer heads cover more yard
• Includes a matched-precipitation nozzle rack with 1.0, 2.0, 3.0, and 4.0 GPM standard and low-angle nozzles, plus an 8.0 GPM pasture nozzle
• Quiet gear-drive operation with all radius and arc adjustments made from the top of the head using the included key
• Pattern adjusts from 40 to 360 degrees, with radius reduction down to 75% of maximum distance
• 4 in. pop-up riser height clears tall grass, and low precipitation rate reduces runoff and puddling across soil types
• Bottom inlet filter helps prevent clogging from sediment and debris
• 3/4 in. FPT inlet is a compatible drop-in replacement for gear-drive rotors from any major brand
• Durable ABS can and riser stem with stainless steel internal components for long service life

The Voyager II gear-drive rotor is built for landscape areas that need real throw distance, covering up to 52 ft. with a quiet, reliable gear-drive mechanism. Its arc adjusts from 40 to 360 degrees in precise increments, so you can aim water exactly where you want it and keep it off sidewalks, driveways, and siding. The 4 in. pop-up height keeps the nozzle clear of tall grass, and the pre-installed 3-gallon-per-hour nozzle delivers a low 0.24 in. per hour precipitation rate at 35-ft. square spacing — slow enough to soak in rather than run off, even on slopes or clay soil.

Every Voyager II comes with a matched-precipitation nozzle rack right in the box: 1.0, 2.0, 3.0, and 4.0 GPM standard and low-angle nozzles, plus an 8.0 GPM pasture nozzle for wide-open spaces. That means even coverage across quarter, half, and full patterns without buying nozzles separately. A radius adjustment screw lets you dial back distance down to 75% of the rated throw, and a bottom inlet filter helps keep the nozzle running clean.

Both radius and arc adjustments happen at the top of the head with the included gear-drive key — no digging required. The can and riser stem are built from high-impact ABS with stainless steel internal components, and the 3/4 in. female pipe thread inlet makes the Voyager II a straightforward replacement for gear-drive rotors from any major brand. Mount it on a 3/4 in. male pipe thread Blu-Lock swing joint for the easiest install, or use standard Funny Pipe fittings, swing fittings, or rigid risers.

Item ID: 55661

Spray Distance:25 to 52 ft. adjustable radius

Arc Adjustment:40 to 360 degrees

Radius Adjustment:Down to 75% of maximum distance

Pop-Up Height:4 in.

Inlet:3/4 in. Female Pipe Thread (FPT)

Pre-Installed Nozzle:3.0 GPM

Precipitation Rate:0.24 in./hr. at 35-ft. square spacing, 60 PSI

Included Nozzle Rack:1.0, 2.0, 3.0, and 4.0 GPM standard and low-angle nozzles; 8.0 GPM pasture nozzle

Recommended Operating Pressure:60 PSI

Body Material:High-impact ABS

Internal Components:Stainless steel

Filtration:Bottom inlet filter

Adjustment Tool:Gear-drive rotor key (included)

Mounting Compatibility:3/4 in. MPT Blu-Lock combination swing joint, Funny Pipe fittings, swing fittings, and rigid risers

Compatibility:Direct replacement for gear-drive rotors from Orbit, Hydro-Rain, and other major brands
