🌵 AZ SUN VALLEY SALES ★ Trusted Arizona Reseller · Fast Shipping · Quality Checked ★Okin Okimat 6 IPS Dual Drive Bed Motor Actuator

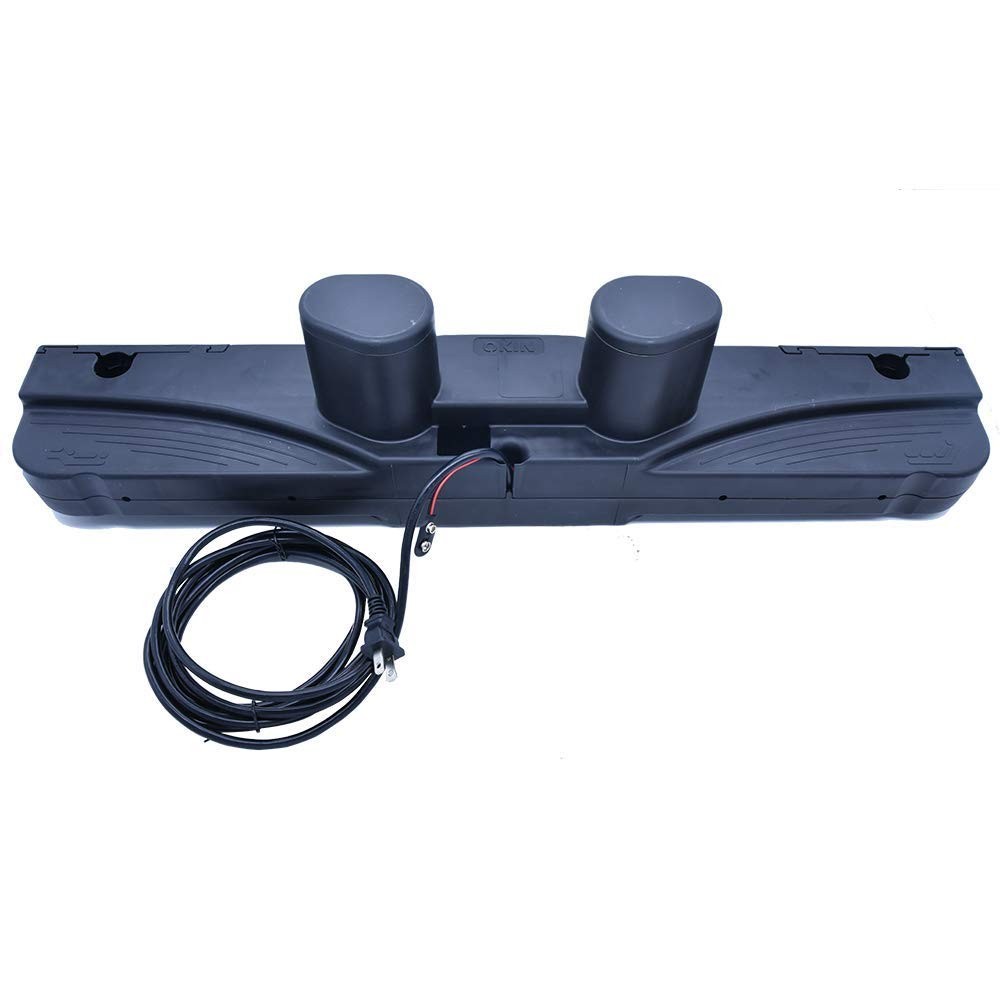

Replacement dual drive (double actuator) motor unit for fully electric hospital and adjustable beds. This is the drive assembly that raises and lowers the head and foot sections. It is sold as a repair part for an existing bed frame.
Specifications
- Brand: Okin (DewertOkin GmbH, a Phoenix Mecano brand)
- Model: Okimat 6 IPS
- Type / part number: 73535
- Supply: 100V-240V, 50/60 Hz, max 3.15 A. IPS means integrated power supply, so no separate transformer box is used.
- Max force / stroke, head: 4500 N / 87 mm
- Max force / stroke, foot: 4500 N / 69 mm
- Duty cycle: 2 min ON / 18 min OFF
- Protection rating: IP20
- Overall size: 708 mm x 118 mm x 165 mm (about 27.9 x 4.6 x 6.5 in)
- Mounting bar spacing: 581 mm centre to centre
- Colour: black
Check fitment before ordering
Okin builds a number of bed drives that look alike and are not interchangeable. Before ordering, compare your existing motor with this one: the 581 mm centre to centre mounting bar spacing, the 708 mm overall length, the mains powered IPS configuration, and the shape of the hand control socket shown in the label photo. If your bed uses a different Okimat variant, a low voltage unit fed from an external power supply, or a different connector, this unit will not drop straight in.
Condition and what is included
Open box. The carton has been opened, but the drive unit inside is still sealed in its factory bubble wrap and was not unwrapped. It has not been bench tested or powered up. A printed instruction sheet is in the carton.
The wired hand control that appears in the manufacturer reference images could not be confirmed present in this carton, so please buy this as the drive motor unit only. The presence of mounting hardware, slide covers and cabling is likewise unconfirmed.
About the photos
Photo 2 is a photograph of the actual carton and the actual wrapped unit being sold. The other photos are manufacturer reference images of this model, shown so you can check the design, the rating label and the mounting detail. The serial number visible on the reference label photo is the manufacturer sample, not this unit.
