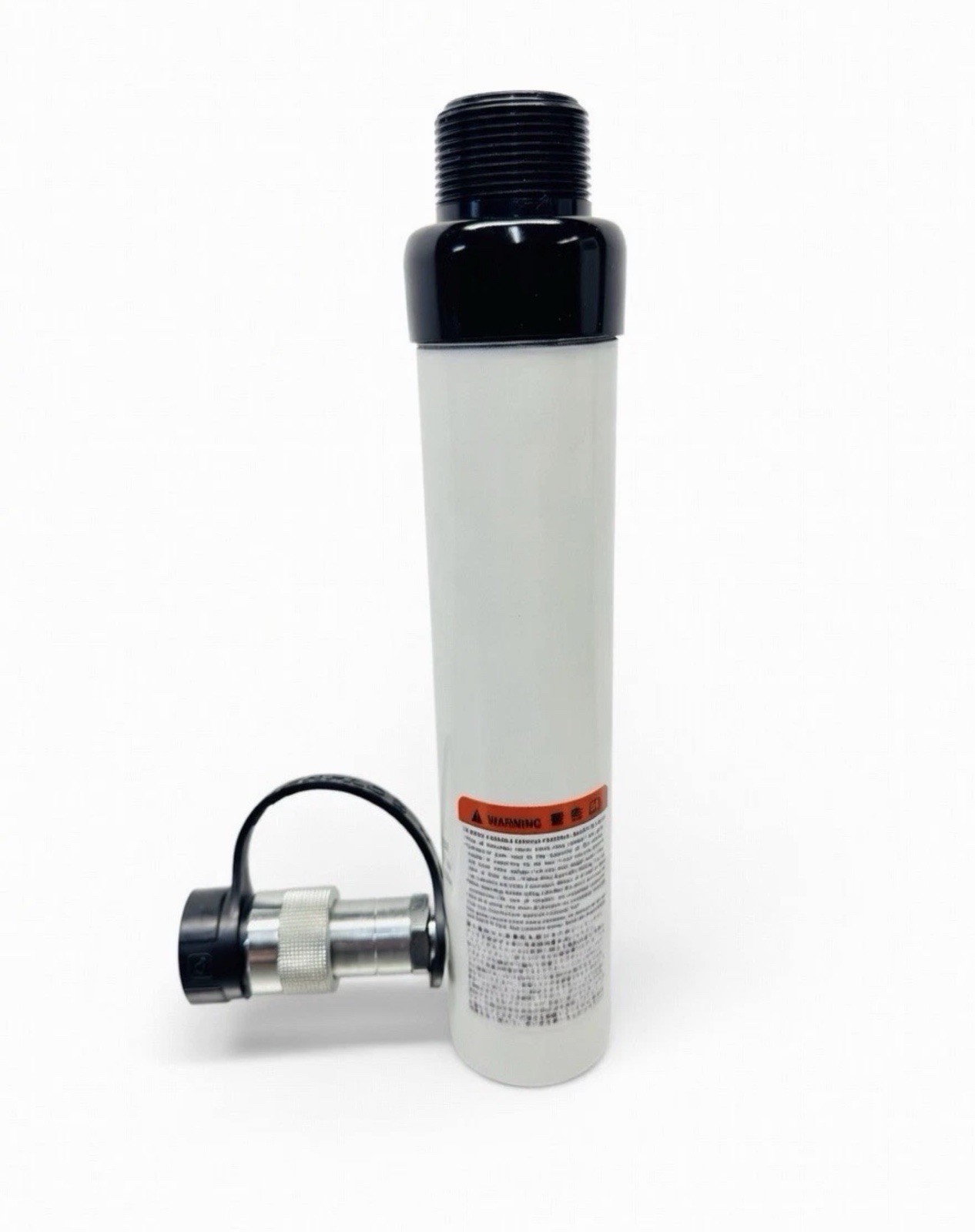

10-ton, 6” stroke threaded-bottom ram used on older Kansas Jack and Blackhawk pulling posts Power Tower, and as the lift ram on Star-A-Liner Cheetah, Continental Flat Rack, and Star Rack frame machines.
2 year warranty
Specifications
• Capacity: 10 ton
• Stroke: 6 in
• Closed length: 11.5 in
• Open length: 17-5/8 in
• Bottom thread: 1-1/4 NPT female
• Top adapter: 1-1/4 NPT male
• Barrel collar: 2-1/4”-14 × 1 in long
• Port: 3/8 NPT
• Type: single-acting, internal spring return
• Rebuildable commercial-grade cylinder
• Hard-chrome polished rod
• side-load bearing for off-center / horizontal use
• Seamless steel body, internally polished
These units are white, but sometimes come in yellow or blue. Please specify if you have a preference.
