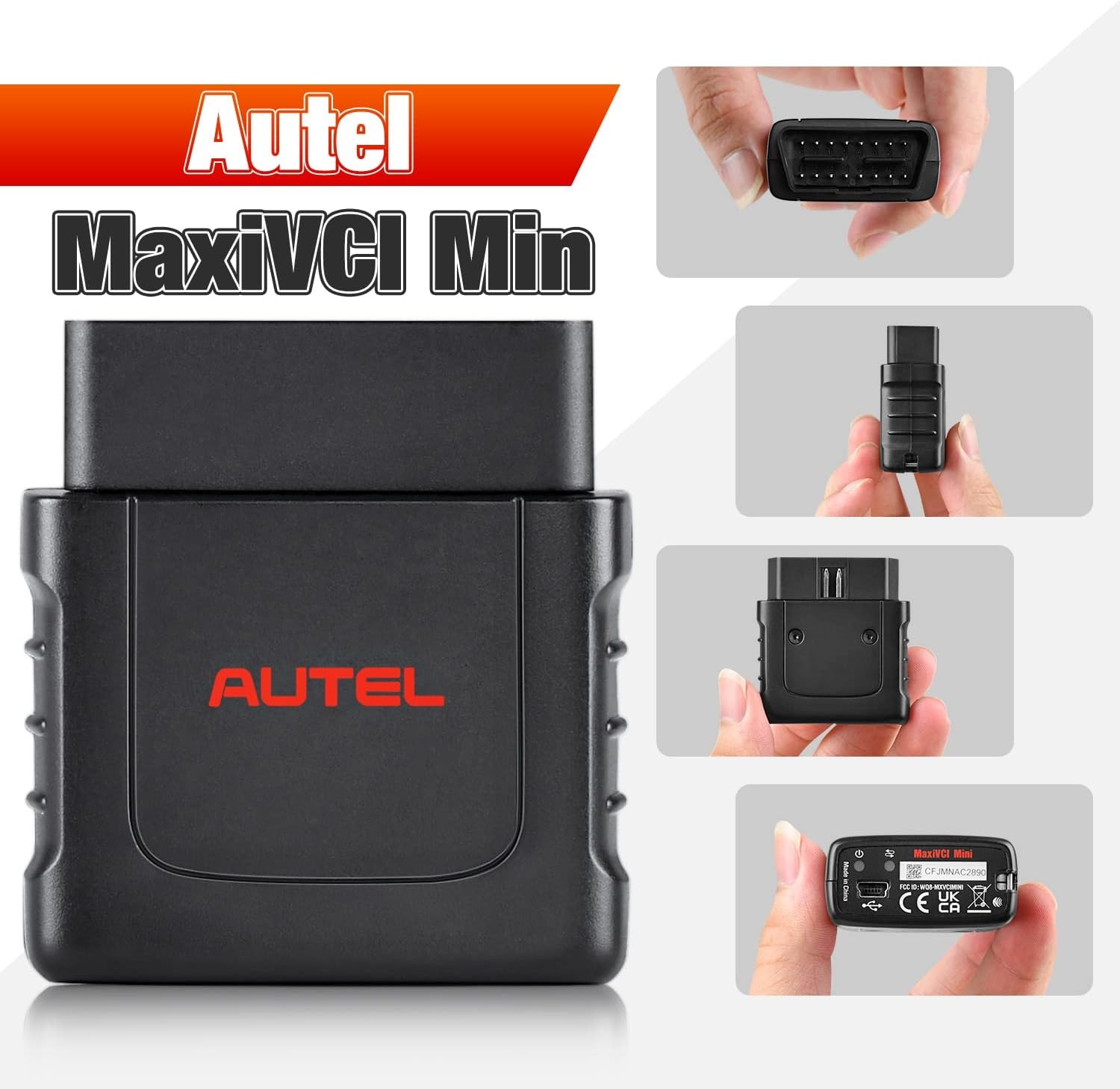

Title Original Autel MaxiVCI Mini/V200 Bluetooth Wireless Diagnostic Interface VCI
PRODUCT DESCRIPTION
Please Note:
Dear customer,we use USA shipping to send this item, it is only shipped to United States.
If you need to return the item for some reasons,pls contact us via message at the fist time to get theRMA# and return addressinstead of sending back directly without permission.Thank you!
Original Autel MaxiVCI Mini VCI Mini Bluetooth-compatible Diagnostic Interface
Autel VCI Mini is designed to connect wirelessly with the MaxiCom / Maxicheck / MaxiPro and MaxiTPMS Display Tablet, as a vehicle communication interface (VCI) for vehicle data transmission. Thanks to the wireless Bluetooth-compatible technology, with which you are allowed to work freely around the vehicle. This interface device can communicate with vehicles' electronic control units (ECUs), guaranteeing performance and speed that redefine multi-brand diagnostics.
Vehicle Communication interface: MaxiVCI MINI
Broad Compatibility: It can work with Autel MK808BT/ MK808BT Pro/ MX808TS/ MK808TS/ MK808S-TS/ DS808TS/ DS808S-TS/ MP808TS/ MP808S-TS/ MP808BT/ MP808BT Pro/ MP808BT Kit/ TS608 etc.
Wireless Bluetooth Technology + 10m Working Range: Thanks to wireless Bluetooth technology, the VCI Mini offers 10-meter wireless diagnostic range that allows you to work unfettered outside the car.
Power Sources: The MaxiVCI Mini operates on 12-volt vehicle power, which is received through the vehicle’s DLC. The unit powers on whenever it is connected to the vehicle’s DLC.
Wirelessly connects ECU to perform ECU Coding, Full TPMS, Bi-directional Control, Services etc.
Connect MaxiVCI Mini to Autel Scanner
Connect the VCI MINI to the scanner in three simple steps
Step 1: Insert the MaxiVCI Mini on the vehicle’s DLC
Step 2: Power up scanner
Steps 3: Turn on scanner Bluetooth icon, connect with VCI MINI
To connect to Non-OBD II Vehicles
1. Locate the required OBD I adapter and connect its 16-pin jack to the Vehicle Data Connector on the MaxiVCI Mini.
2. Connect the attached OBD I adapter to the vehicle’s DLC.
Another way to connect via USB Cable:
NOTE:When both the communication methods are applied at the same time, the MaxiCOM system will use the USB communication as the default priority.
Update Autel MaxiVCI Mini
Update via Scanner:
Before updating the VCI software, ensure the scanner’s connection to the Internet is stable.
To update the MaxiVCI Mini software
1. Power on the scanner.
2. Connect the MaxiVCI Mini to the scanner via USB.
3. Tap the VCI Manager application on the MaxiCheck Job Menu of the scanner.
4. Select Update from the connection mode list.
5. The current version and the latest version of the VCI software will be displayed after a few seconds. Click Update Now to update the VCI software if available.
Update via P-C
1. Download the Maxi P-C Suite from offi-cial we-b> Support > Downloads > Diagnostic Tools, and install it onto your wind-ows-P-C.
2. Connect the MaxiVCI Mini to a P-C using a USB cable.
3. Launch the P-C Suite on the P-C which is installed after the installation of Maxi P-C Suite and click MaxiVCI Mini icon in the Device Selection window.
4. The P-C will automatically recognize the MaxiVCI Mini.
5. Click Update to complete the update if an update is available.
Tips:
1. Connects to The Vehicles OBDII Port
2. Lightweight Vehicle Connection Interface (VCI)
3. Enables The Autel Tablet to Connect to The Vehicles
4. Allows Technician to Perform Testing Outside Vehicles
5. The Tablet in This Advertising is Not Included! It is for Reference Only!
6. The MaxiVCI Need to Be Used With Autel Tablet Device Like MK808BT, MK808TS, MX808TX, MP808TS, etc.
Power Sources
The MaxiVCI Mini operates on 12-volt vehicle power, which is received through the vehicle's DLC. The unit powers on whenever it is connected to the vehicle's DLC.
Autel MaxiVCI – Vehicle Communication Interface
The wireless diagnostic interface MaxiVCI Mini is a small vehicle communication interface (VCI) used to connect to a vehicle's data link connector (DLC) and connect wirelessly with the tablet for vehicle data transmission.
1. Vehicle Data Connector (16-Pin) – connects the MaxiVCI Mini to the vehicle's 16-pin DLC directly.
2. Power LED – refer to Table 2- 2 Power LED on the Front Panel
3. Connection LED – refer to Table 2- 3 Connection LED on the Front Panel
4. USB Port – provides the easiest connection between the device and the tablet via a USB cable.
Table 2- 2 Power LED on the Front style="clear: left;"/>
Green
Lights solid green when powered on
Red
Blinks red when system failure occurs. Note: The power LED briefly lights red each time the device powers on and then lights green when the device is ready
Table 2- 3 Connection LED on the Front Panel
Green
* Lights solid green when the device is successfully connected via the USB cable but is not communicating with the vehicle.
* Blinks green when the device is successfully connected via the USB cable and is communicating with the vehicle.
Blue
* Lights solid blue when the device is successfully connected via BT but is not communicating with the vehicle.
* Blinks blue when the device is successfully connected via BT and is communicating with the vehicle
Specification:
* USB 2.0
Wireless Frequency
2.4 GHz
Input Voltage Range
12 VDC to 24 VDC
Supply Current
150 mA @ 12 VDC
Operating
0°C to 50°C (ambient)
Storage
-20°C to 70°C (ambient)
Package includes:
1pc x Autel MaxiVCI Mini
Autel MaxiVCI V200 Bluetooth Vehicle Communication Interface
Autel MaxiVCI V200 wireless diagnostic interface is a small interface box used to connect to a vehicle's diagnostic connector (DLC) and connect wirelessly with the MaxiSYS Display Tablet, as well as standalone PC, as a vehicle communication interface (VCI) for vehicle data transmission. Thanks to the wireless BT technology, with which you are allowed to work freely around the vehicle. The MaxiVCI V200 can communicate with vehicles' electronic control units (E-CUs), guaranteeing performance and speed that redefine multi-brand diagnostics. The development of this interface has been focused on reducing the communication time, and ensuring the tool is practical to use. The MaxiSYS diagnostic platform combines the MaxiVCI V200 and the display tablet with technical information into a single p-rogram, ensuring quick and simple access to the vehicle to perform comprehensive diagnostics Features:
1. Compatible withAutel BT609,MaxiIM style="box-sizing: border-box;"/>2. Supports The Latest OBD2 Protocols:DoIP and CAN-FD (4-pin sets)
3. Built-In Battery, Internet Update, User Friendly
4. Ultra-Fast OBDII-Port Communication Within 75 Feet
5. Supports Comprehensive Diagnosis and Reading of Control Modules
6. Wirelessly Connects Vehicle E-CU to MaxiSYS Tablets Supporting Bluetooth
7. Features Convenient Wireless Bluetooth Technology Enabling Tech to Perform Diagnostics Outside of style="box-sizing: border-box; color: rgb(33, 37, 41); font-family: -apple-system, BlinkMacSystemFont, "Segoe UI", Roboto, "Helvetica Neue", Arial, sans-serif, "Apple Color Emoji", "Segoe UI Emoji", "Segoe UI Symbol", "Noto Color Emoji"; white-space: normal; background-color: rgb(255, 255, 255);"/>
1. Connects to the vehicles OBDII port
2. Lightweight vehicle connection interface (VCI)
3. Enables the Autel tablets to connect to the vehicles
4. Allows technicians to perform testing outside of the vehicles
5. The tablets mentioned in this advertisement is not included! It is for reference only!
6. The MaxiVCI V200 needs to be used with Autel tablets like MS906 PRO, ITS600, etc.
VCI LED LED
Yellow
The VCl is powered on and performing self-check,
Green
The VCl is ready for use.
Flashing Red
The firmware is updating.
Vehicle/Connection LED
Green
Solid Green: The VCI is connected via USB cable.
Flashing Green: The VCl is communicating via USB cable.
Blue
Solid Blue: The VCI is connected via Bluetooth.
Flashing Blue: The VCI is communicating via Notice:
The new, ultra-compact MaxiVCI V200 features the latest advances in wireless Bluetooth connectivity. It has been carefully designed and tested to comply with OBDII protocols. However, some vehicle models are not in full compliance with these protocols for various reasons. In addition, the computer control systems or sensors on any given vehicle may be malfunctioning.
While Autel's testing and the experiences of the users have shown the unit to be safe and reliable, there is an inherent risk in using any product that may potentially affect the operation or drive-ability of your vehicle.
If you are concerned about the operation of your vehicle at any time while using the MaxiVCI V200
1. Pull off the roadway immediately or as soon as it is safe to do so.
2. Disconnect the device from the OBDII port.
3. Consult a licensed mechanic or automobile service 2.0
Wireless Frequency2.4 GHzInput Voltage Range6-36 VDCSupply Current150 mA @ 12 VDCOperating Temperature-10°C to 60°C (ambient)Storage Temperature-40°C to 80°C (ambient)Built-in Battery3.7V Lithium BatteryLightWhite LED
How to Use Autel MaxiVCI V200
Package Includes:
1pc x Autel MaxiVCI V200
