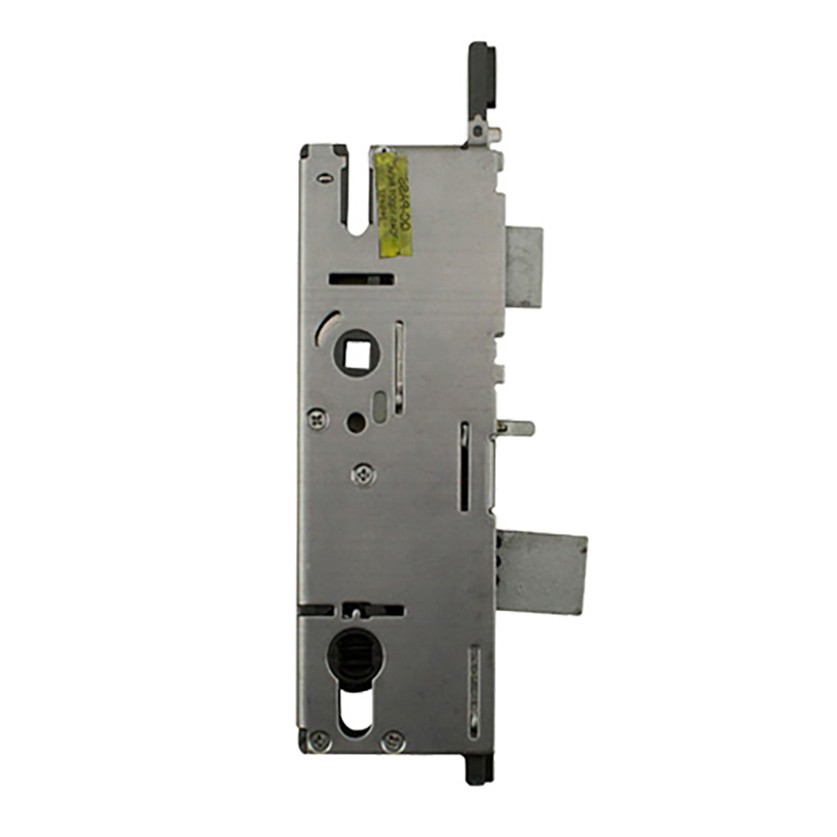

P2000 Active Lock Case/Gearbox Only 45/92 American Cylinder:
$105.89
P2000 Active 45/92 Gearbox Only with American Cylinder - No Faceplate
This is the Gearbox Only with deadbolt and spring latch does not have a faceplate.
NOTE: This is the Lock case Only - The faceplate rail is not included.
This mortise Lock case will replace the active gearbox on AmesburySingle Point (SPL) or Multipoint Lock (MPL) with the same size and configuration. Amesbury has 3 different locks - Please compare measurements
Cylinder Type: American
Backset: 1-3/4 inch (45mm)
Handle PZ: 3-5/8 inch ( 92mm)
Deadbolt Throw: 1 Inch (25.4mm)
FaceplateWidth: NONE
To Change Handing / Latch Reversal:
1. Extend Deadbolt and pull spring latch out
2. Rotate to correct position
3. Check function of the lock before closing the door
Installation Note:
The T-20 torx Star bit screws require 12-13 pounds of torque
