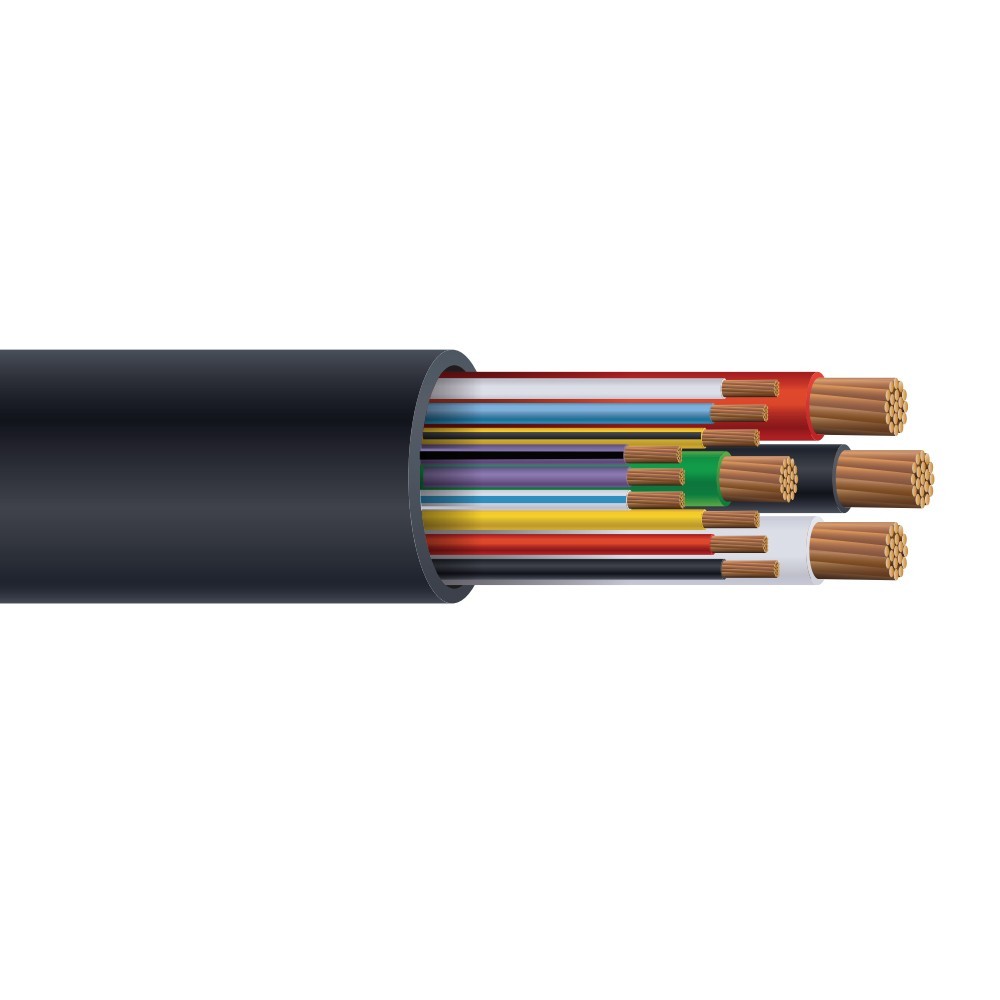

PER FOOT 2/3 with #6 Ground + 18/9C TC-ER-JP 26KW Generator Cable (115 Amp) 600V Click Thumbnails to EnlargeAPPLICATION
- Multi-conductor all in one cable for connecting a 26kW generatorto a transfer switch. JP (Joist Pull) rated per NEC 336.10(9). ULlisted as Type TC-ER-JP for applications not to exceed 600V.
CONDUCTOR
- Element 1: Annealed bare copper Class C
-Element 2: Annealed bare copper Class K
- Element 3: Annealed bare copper Class C
INSULATION
- Element 1, 2 & 3: Polyvinylchloride (PVC) & Nylon
ASSEMBLY
- All 3 Elements or Conductors are cabled together with Non Hygroscopic Polypropylene fillers as required for a circular cross-section with a clear mylar binder tape and jacketed.
JACKET
- Black Sunlight & Flame Resistant and Direct Burial ApprovedPVC with ripcord rated 90°C wet or dry per UL 1277
COLOR CODE
- Element 1: Black, Red,White
-Element 2: Black, Red, Yellow, Yellow/Black, Blue, White,White/Blue, Purple,Purple/Black
-Element 3: Green Ground
STANDARDS
- UL Listed as TC-ER-JP per UL Standard 1277
-Rated 90°C wet or dry to meet UL 83 for THHN/THWN
-Meets cold bend test at -40°C
- ICEA S-73-532. ICEA S-95-658, where applicable
-Meets UL 1581 & 1202 (FT-4) 70,000 BTU/HR & ICEAT-29-520 210,000 BTU/HR requirements
-REACH compliant per Regulation (EC) No 1907/2006 (235)Updated June 14, 2023
-Cable is suitable for use in Class I Division 2 hazardouslocations
-Element 1 & 2 conductors pass UL VW-1 flame test, ratedTHWN/VW-1
-ASTM B3, B8, B174, B787
-UL approved for Direct Burial & Sunlight Resistant Applications
DISCLAIMER
- Picture May Not Represent Actual Cable and is Only Used As a Representation Please Refer to The Specifications for Product Accuracy.
PRODUCT SPECIFICATIONSElement 1: Size 2AWGElement 1: Number of Conductors 3Element 2: Size 18AWGElement 2: Number of Conductors 9Element 3: Size 6AWGElement 3: Number of Conductors 1Jacket Thickness (inches) 0.080Overall Diameter(inches) 1.013Ampacity 115 AmpsRating 26kWWeight (Lbs/1000ft) 1070
