PearTuneMSO Avinox DJI M1 and M2/M2S
ProductData Sheet
Productdescription
ThePearTune MSO Avinox DJItuningchip is an add-on device developed by PearControlfore-bikes with the Avinox drive systemwith M1 and M2/M2S version motors. It is used to remove the speed limitation ofthe e-bike pedaling at 25 km/h. The product is designed with minimaldimensions for easy installation in all e-bike models from allmanufacturers on the market and for flawless cooperation with thespeed sensors in the original Avinox DJI system.
Compatibility
Thedevice is fully compatible with the AvinoxDJI M1 and M2/M2S motor andall displays available on the market for these motors (make a note during the order if you need the one for M1 or for M2/M2S).
Fullycompatible with the latest SW update.
Installation
Ittakes place directly in the engine compartment using waterproofconnectors for connection to the engine, display and speed sensor.
Calibrationand adaptation to the e-bike system is performed completelyautomatically without user intervention during the first switching onor off of the chip.
Activation
Activation/Deactivationcan be done in this way:
Chipactivation is indicated by the display of 19 km/h instead of thecurrent speed for 2-3 seconds. Chip deactivation is indicated by thedisplay of 12 km/h instead of the current speed for 2-3 seconds.
Calibrationis performed completely automatically when the chip is first turnedon or off.
Speedlimit
completelyremoved
Displayingvalues
Whenriding with the chip on, the e-bike display correctly displays theactual speed up to 22.9 km/h. After exceeding this value, the actualspeed is displayed on the last two digits of the display, forexample: 23.3 corresponds to a speed of 33 km/h, 24.2 corresponds toa speed of 42 km/h, etc.

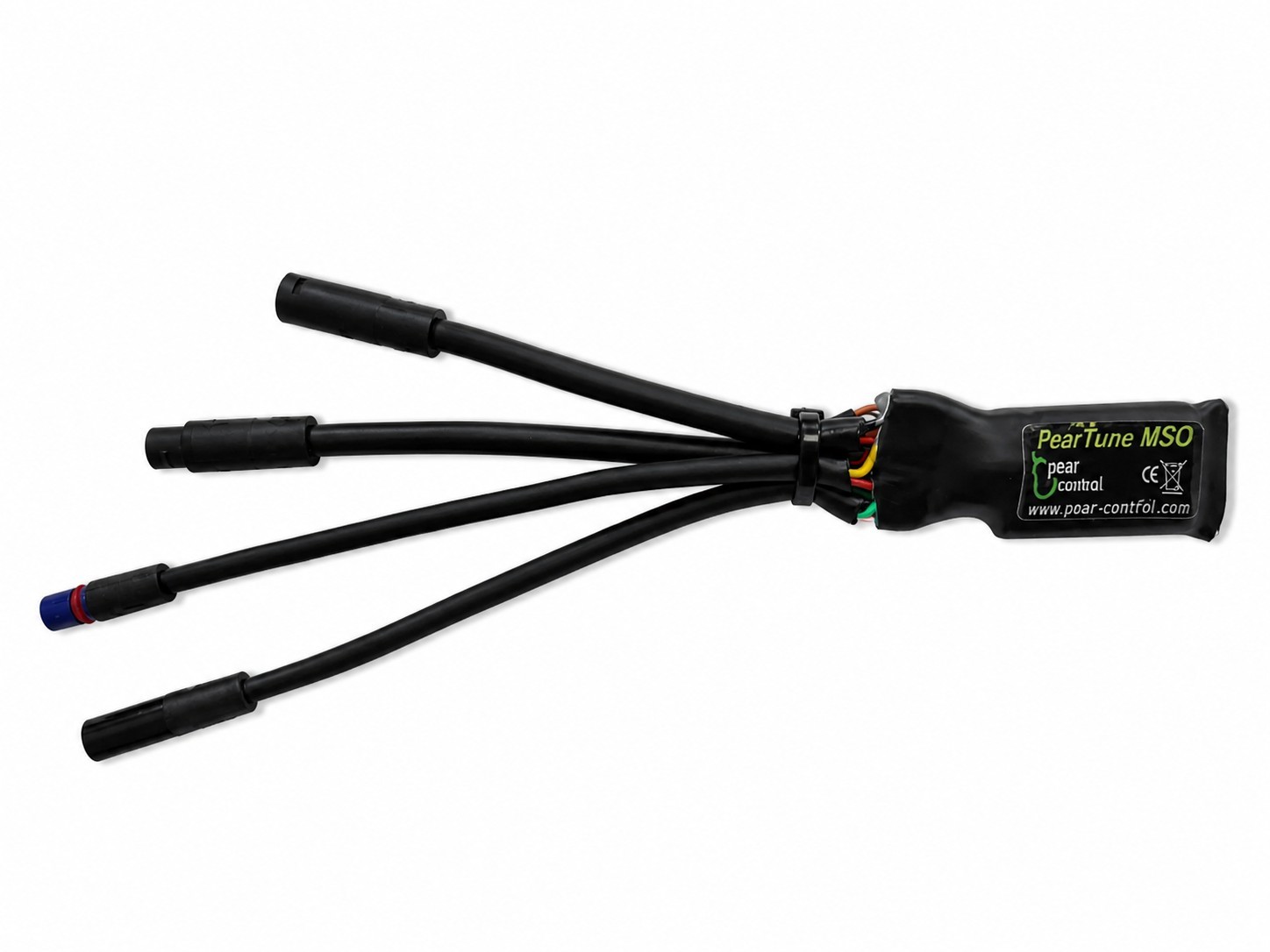

Productphotos
Dimensions without wires (L x W x H): 18 mm × 12 mm × 3 mm
Cable length: 550 mm
Supply voltage: 5-24 V
Maximum current consumption: 100 mA
Maximum power consumption: 1.5 W
Weight of chip + accessories: 19 g + 36 g
Power supply: from the original Avinox DJI system
Operating temperature: -10°C to +50°C
Material: ABS plastic, black 1889, 393 01 Pelhřimov, CZECH REPUBLIC
Notice
Theuse of tuning devices for e-bikes is intended exclusively for sportsand racing purposes outside public roads .By using the PearTune MSO device, the user agrees to use the modifiede-bike in accordance with the applicable legislation of thedestination country. The user also acknowledges that the operation ofbicycles outside one\'s own land or land designated for this purpose,with the PearTune MSO chip installed but deactivated, may not be inaccordance with the legislation. The manufacturer does not guaranteethat the factory warranty of the bicycle will not be violated, nordoes it guarantee the impossibility of damage or blockage of thee-bike system. The manufacturer disclaims any liability for damage tohealth or property that may arise in connection with the installationor use of this product.
