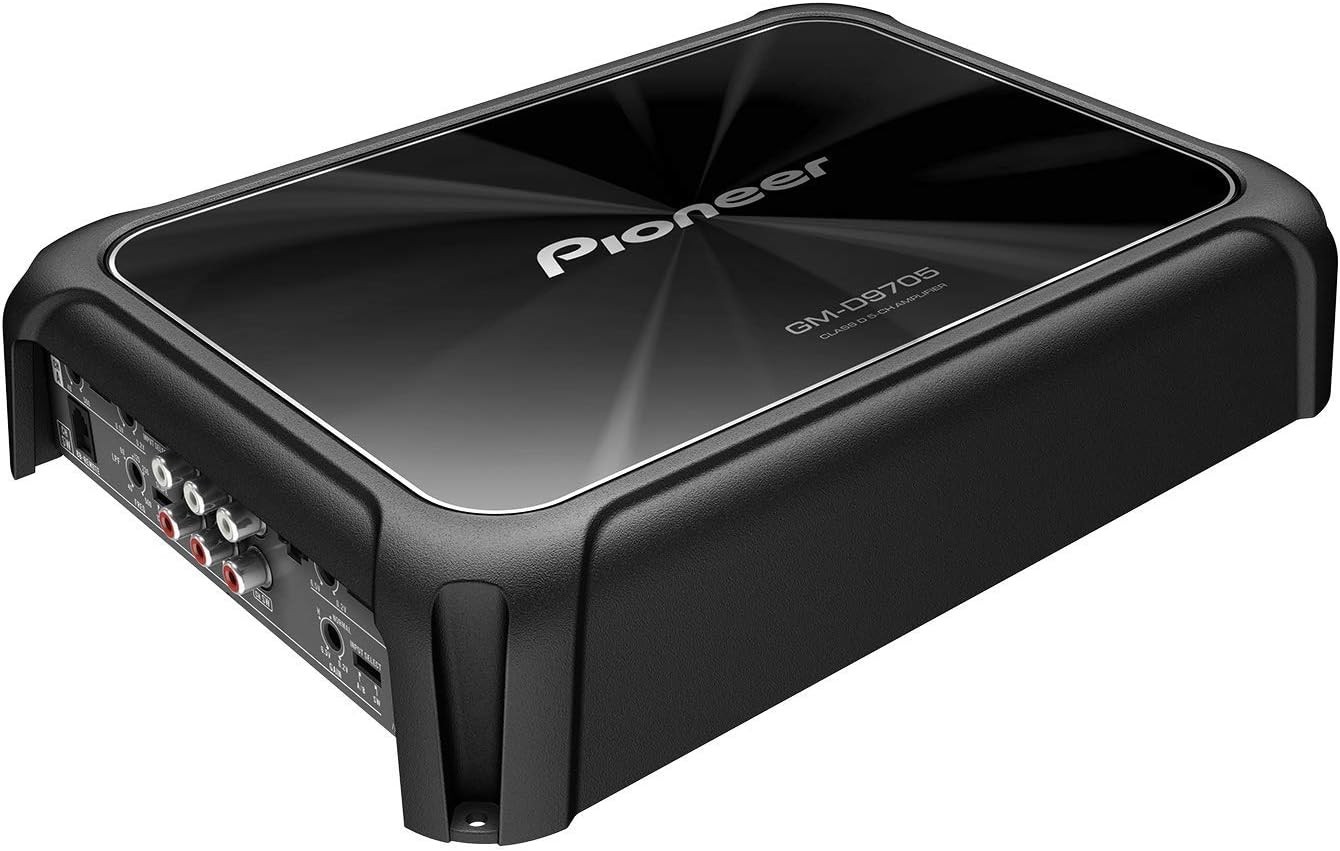

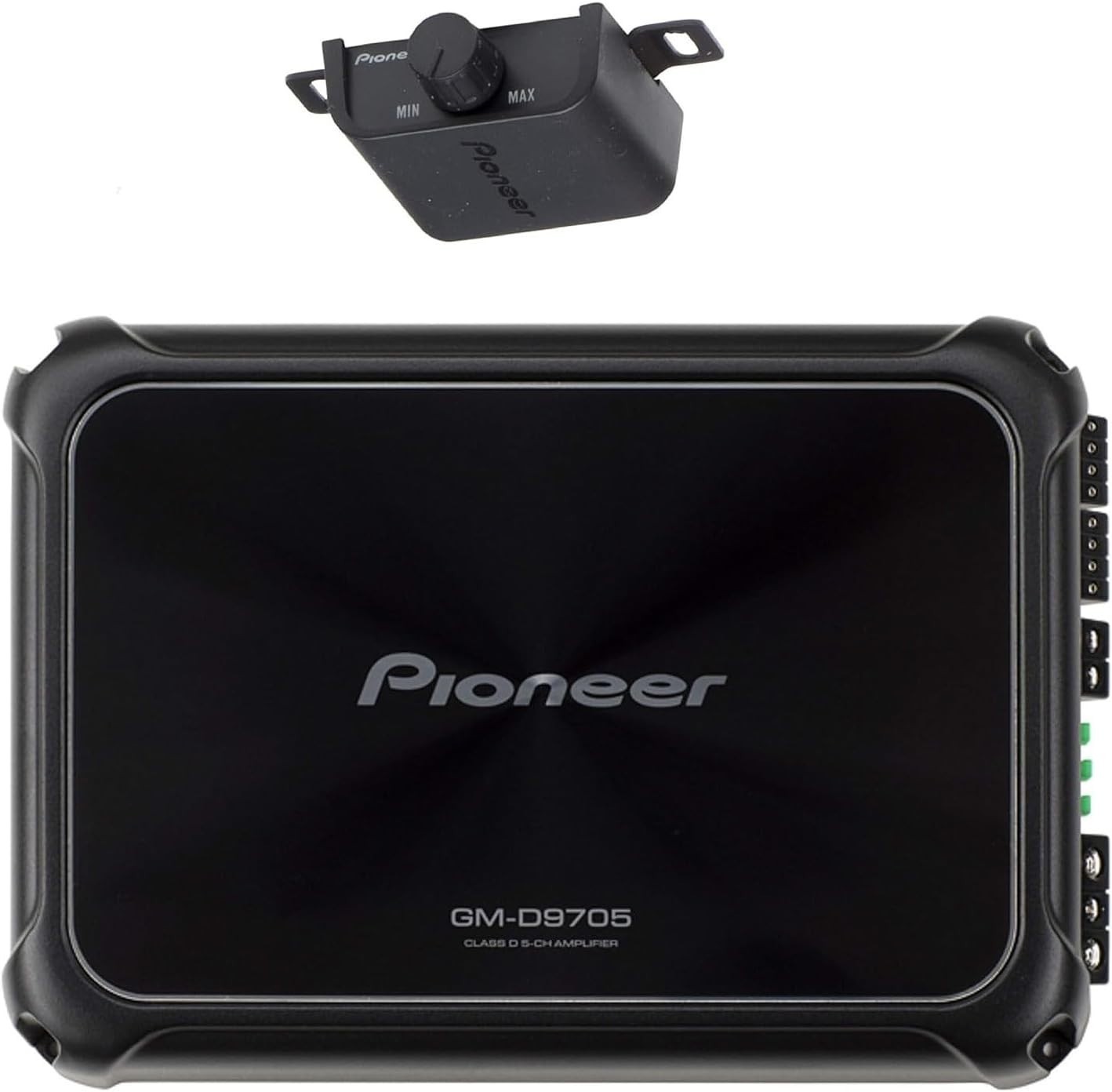

Pioneer GM-D9705 5-Channel Power Class D Amplifier with Wired Bass Boost Remote For Sale

SPECIFICATIONS

• Continuous Power (RMS) Output at 2 Ohms 100W x 4 (Main channel), 600W x 1 (Subwoofer channel)
• Continuous Power (RMS) Output at 4 Ohms 75W x 4 (Main channel), 350W x 1 (Subwoofer channel)
• Continuous Power (RMS) Output - Bridged at 4 Ohms 200W x 2 (Main channel), 350W x 1 (Subwoofer channel)
• Frequency Response A/B CH: 10 Hz ~ 50 kHz (+0dB, -3dB) / SUB CH: 10Hz ~ 500 Hz (+0dB, -3dB)
• Total Harmonic Distortion (THD) A/B CH: <0.05% (1kHz) / SUB CH: <0.05% (100Hz)
• Signal-to-Noise (SN) Ratio 94dB
• Fuse Rating 30A x 3
• Low-Pass Crossover Frequency 40 Hz
• Low Pass Slope (dB/octave) -12dB/oct (A/B CH) / -12dB/-24dB (SUB CH)
• High-Pass Crossover Frequency 500 Hz
• Bass Boost Frequency 50 Hz
• Bass Boost Level 0 dB to 18 dB
• Bass Boost Remote
• Automatic Signal Sensing and Turn-On
• Hi-Volt Input Level Control 200 mV to 6.5 V
• Terminal Type Block
• Load Impedance Allowance (Ohms) 2 to 4
• Protection Control System
• Dimensions 12.4 x 2 x 7.87
