Item #840
Includes 4 lightly used inserts.
Other info on tool...
066 R8
31 KAU

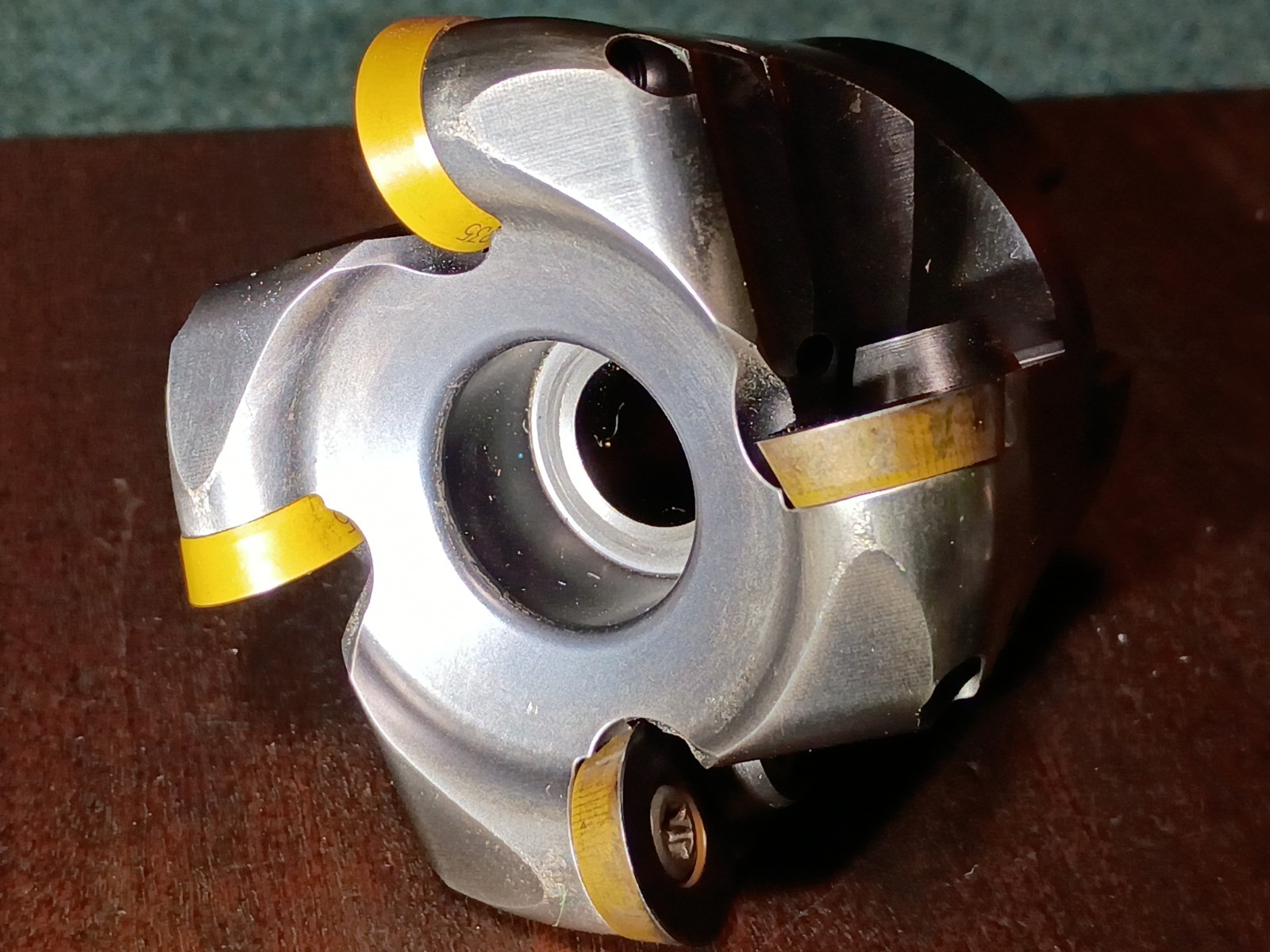

The Pokolm 66mm Indexable Corner Radius Profile Face Mill/Copy Cutter utilizing RDMT1604MOTN (or standard 16mm / 5/8\" inscribed circle round) inserts is an engineered toolhead optimized for heavy 3D profile milling, roughing, die/mold cavity profiling, and high-feed face milling.Pricing for a clean pre-owned or new-surplus 66mm cutter body sits between $149.99 and $199.95 on secondary machinery markets. A companion package of standard round indexable inserts (such as 10-piece factory packs) generally retails from $23.30 to $99.95 depending on the specific coating matrix and target substrate grade.
- Superior Machine Tools (Used Surplus): Priced at $199.95 for the bare 5-flute cutter head (Part Number / MPN: 3 66 300/5).
- items (New / Surplus Stock): Available in brand new-surplus condition for $149.99 at indexable tooling providers.
- RDMT1604MOTN Caroffere Inserts (10-Pack Box): Budget-oriented generic imports start near $23.30, whereas premium production-grade variations (like Pokolm-proprietary P25 or K10 series) trade closer to $99.95 per box via Superior Machine & Tool.
Component ParameterEngineering & Dimensional SpecificationsManufacturer[Pokolm Frästechnik GmbH & Co. KG (Made in Germany)]([link removed by ] \"PremiumtoolsCutter Body Code (MPN Options)3 66 300/5 (5-flute layout) or 66 300/7 (High-density 5 to 7 flute layout)True Cutting Diameter66 mm (Approx. 2.60\" Nominal Sweep)Pilot / Arbor Hole Connection27 mm (Standard metric drive arbor pilot mount)Flute Count (Pocket Capacity)4 to 5 Effective Pockets (designed to utilize 4 active inserts dynamically per user setup)Coolant IntegrationIntegrated internal coolant-through supply channelsCompatible Insert ProfileRDMT 1604... / RDHX 1604... (16mm true diameter round geometry)Insert Dimensions16mm Inscribed Circle (IC) × 4.76mm Thickness (0.187\")Max Depth of Cut (APMX)0.157\" (4.0 mm maximum recommended plunging limit)The defining advantage of Pokolm\'s round copy milling system is structural edge strength. Because round inserts lack fragile corner points or fixed 90-degree rake facets, they distribute mechanical shock uniformly along the entire rotating edge path. The built-in coolant-through design allows this toolholder to clear heavy chip columns smoothly from enclosed mold cavities, preventing chip re-cutting.
