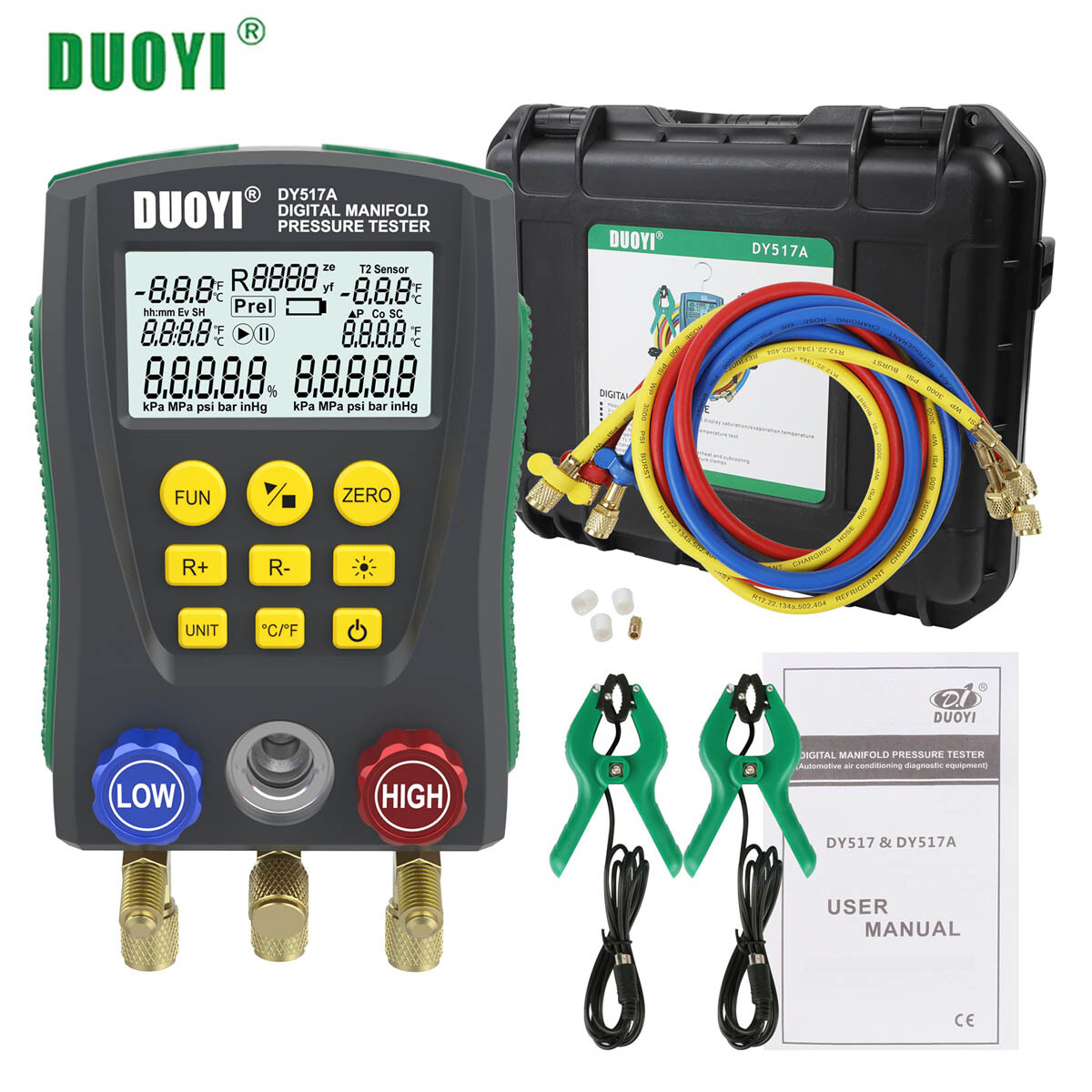

Professional Refrigeration Manifold Gauge Set Digital Gauges HVAC System Tester For Sale

Professional Refrigeration Manifold Gauge Set Digital Gauges HVAC System TesterDescriptionThe intelligent electronic refrigerant group instrument is an auxiliary instrument for the installation, testing and maintenance of refrigeration equipment such as air conditioners,fridge and cold storage. The instrument has double pressure test, dual temperature test , digital readout, multi-unit switching, multi-mode function and built-in refrigerant database. The instrument uses high-strength engineering plastics and flexible non-slip silicone design, the whole machine is solid and comfortable to hold. Built-in 32-bit digital processing unit and high-precision data acquisition unit, high data and stability. Large-size liquid crystal display, LCD backlight support, data display clear and easy to read, convenient light operation. Long-life valve switch, 1/4-inch standard interface design to ensure that the instrument's durability and versatility.Features

• 【MUST HAVE】- The intelligent electronic refrigerant group instrument is an auxiliary instrument for the installation, testing and maintenance of refrigeration equipment such as air conditioners, fridge and cold storage. HVAC System Gauge Set has double pressure test, dual temperature test, digital readout, multi-unit switching, multi-mode function and built-in refrigerant database.
• 【SUPER CONVENIENT TOOL】- The instrument can measure double pressure at the same time, as well as dual temperature measurement, with automatic multi-unit pressure conversion, automatic conversion of temperature Celsius / Fahrenheit, to facilitate different needs.
• 【WHAT YOU CAN GET MORE】- Built-in 93 kinds of refrigerant pressure-evaporation temperature database, also calculate the subcooling superheat, to facilitate direct reading of operating process data. Also it tests percentage of vacuum measurement, pressure leak measurement, leak time speed record. It is deserved to have this multi-functional, accurate and simply operated digital manifold let you do the job right.
• 【PREMIUM DESIGN】- Large-size liquid crystal display, LCD backlight support, data display clear and easy to read, convenient light operation. Long-life valve switches, 1/4-inch standard interface design to ensure that the instrument's durability and versatility.
• 【HIGH-PRECISION 】- The instrument uses high-strength engineering plastic and flexible non-slip silicone design. The whole machine is solid and comfortable to hold. Built-in 32-bit digital processing unit and high-precision data acquisition unit, high data and style="text-align: left;">Pressure test: gauge pressure
• Pressure test unit: Kpa; Mpa; bar; inHg; PSI.
• Pressure test range: 0 Kpa – 6000 Kpa
• Pressure test resolution: 1 Kpa
• Pressure test accuracy: +/- 0.5 %(FS)+ 5dgt
• Pressure overload limit: 10000 Kpa (10 Mpa; 100 bar;)
• Vacuum test: relative vacuum
• Vacuum test unit: Kpa; Mpa; bar; inHg; PSI.
• Vacuum test range: -101 Kpa – 0 Kpa
• Vacuum test resolution: 1 Kpa
• Temperature test unit: °C (Celsius), °F (Fahrenheit)
• Temperature test range: -40°C–150°C (-40°F–302°F)
• Temperature test resolution:
• 0.1°C (-40°C–99.9°C), 1°C (100°C–150°C)
• 0.1°F (-40°F–99.9°F), 1°F (100°F–302°F)
• Temperature test accuracy: +/- 0.5 °C + 2dgt +/- 0.9 °F + 2dgt
• Built-in 89 kinds of refrigerant NIST: According to American NIST standard
• Power Supply: 4 X 1.5V (SIZE.AA / LR6) Battery not include
• Dimensions: 170*110*50mm
• Weight: 3085g

Packing list:

1x Refrigerantion Digital Manifold Gauge

1x User Manual (in English)

2x Temperature Clip

3x Test Pipe

1x Toolbox

Air Hose Manifold

Equipped with three air hose manifolds, easy to operate and install, strong sealing, durability and safety.

The burst pressure of the hose set is 3000 PSI, which is equivalent to the burst pressure of other units.

Temperature Clamps

Equipped with one pairs of temperature clamps with a length of 1.5 meters, which can test the real-time temperature and replace.

TOOLBOXThis toolbox can store a complete set of refrigeration tools and is easy to carry. HIDDEN HOOKThe hidden hook design is convenient for hanging and testing the refrigeration equipment, and it is convenient to free both hands to record data, and it can be recycled and hidden without occupying space. EC/EN61010-1 Safety Standards for Design and Production.
1) The pressure measured by the digtal manifold pressure tester is gauge pressure.
2) Pressure testing ranges from -101Kpa to 6Mpa (-0.1bar to 60bar).
3) The limit pressure is 10 Mpa (100 bar).
4) The maximum operating pressure of standard hose is 600 PSI ( approximate 4.13 Mpa, 41.3 bar ). The limit pressure is 3000 PSI approximate 20.68 Mpa, 206.8 bar ).
5) Please confirm the rated pressure value of the tested equipment before testing. Do not use it if it exceeds the range of the instrument. Also for DY517A, if the packed
hoses does not match the pressure requirement, you can use suitable replacements for testing.
6) Do not use and store the instrument in high temperature, high humidity, flammable, explosive and strong electromagnetic fields.
7) Please do not change the instrument internal circuit, to avoid any damage of the instrument or danger occurring.
8) Please wear qualified protective equipment to protect user during testing.
