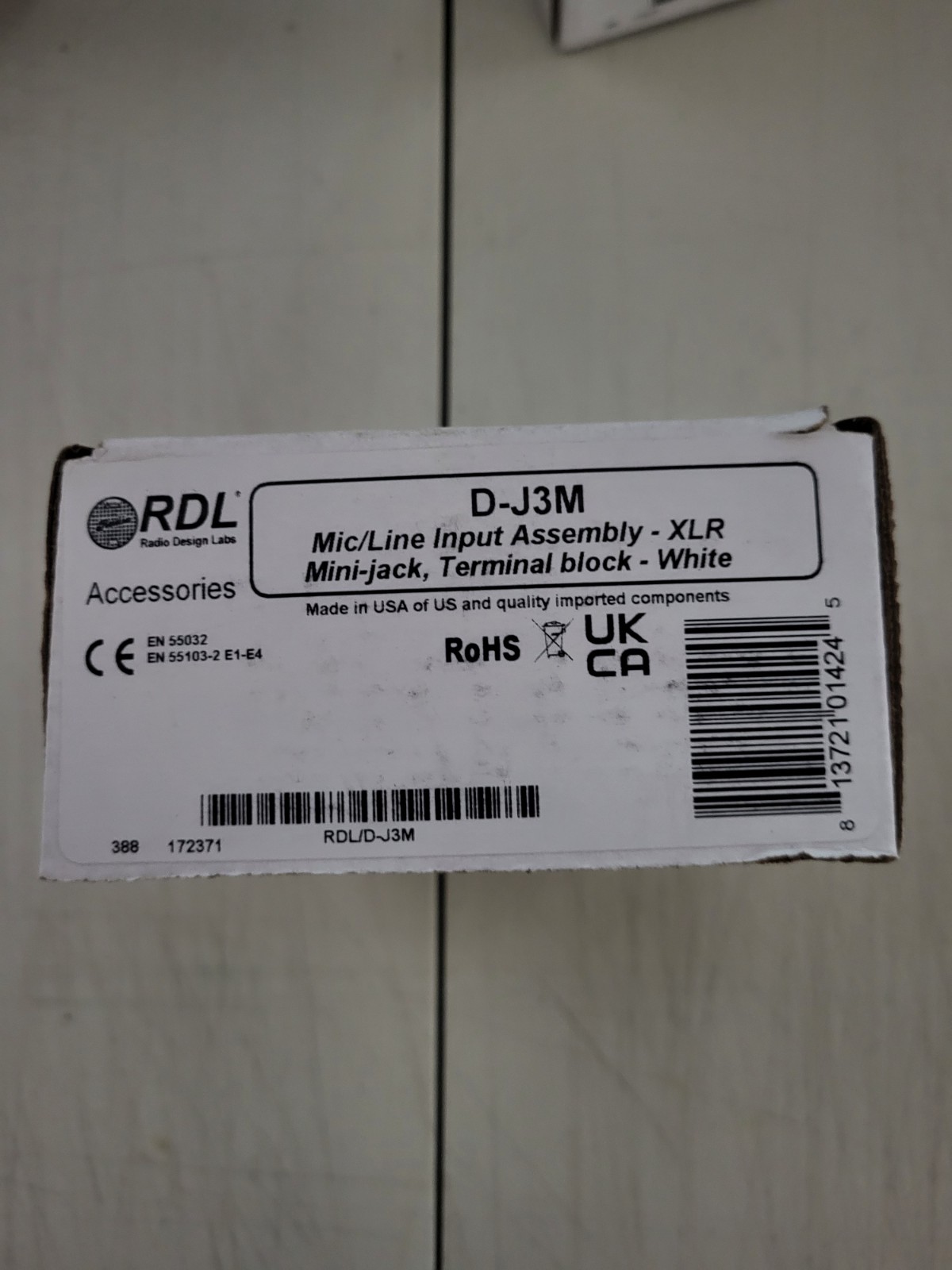

RDL D-J3M Mic/Line Input Assembly - XLR, Mini-Jack, Terminal Block - White
This is a brand new, passive, wall-mounted audio input panel assembly from Radio Design Labs (RDL), designed for professional AV installations. It provides high-quality input connectivity in a durable, single-gang Decora-style faceplate.
Key Features
Wall Mounted Audio Inputs: Designed for clean, in-wall installation into standard US single-gang electrical boxes or compatible RDL back boxes.
High-Quality Connections: Features an XLR female microphone input with gold-plated contacts and a 3.5 mm (mini-jack) stereo line input.
Hum Cancellation & Isolation: The line-level inputs are transformer-isolated to cancel induced hum and balance the audio signal.
Balanced Mono Output: Combines stereo or mono consumer line-level sources into a balanced mono output for connection to other professional audio equipment inputs.
Easy Installation: Rear panel features clearly labeled terminal blocks for secure, direct wiring of both microphone and line outputs.
Passive Design: Requires no external power supply to operate.
Technical Specifications
Input Connectors 1x Female XLR (gold contacts), 1x 3.5 mm Mini-jack
Output Connector Full-size Barrier Terminal Block
Power Requirement Passive (no power needed)
Frequency Response 30 Hz to 20 kHz (±1 dB line level)
Dimensions (HxWxD) 4.13\" x 1.7\" x 2.15\" (10.49 x 4.32 x 5.47 cm)
Color White
