Fit rear left & right on the following Yamaha ATV models: 2009-2014 Grizzly 550, 2007-2013 Grizzly 700, 2018-2025 Kodiak 450, 2016-2025 Kodiak 700. Features stronger than OEM chromoly forged steel axle bars. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance. Replaces OEM # 28P-2530V-00-00, 28P-2510F-00-00, 28P-2518E-10-00.
- Our store
- About Us
- Contact Us
Free Shipping - Same Day If Ordered Before 3 EST

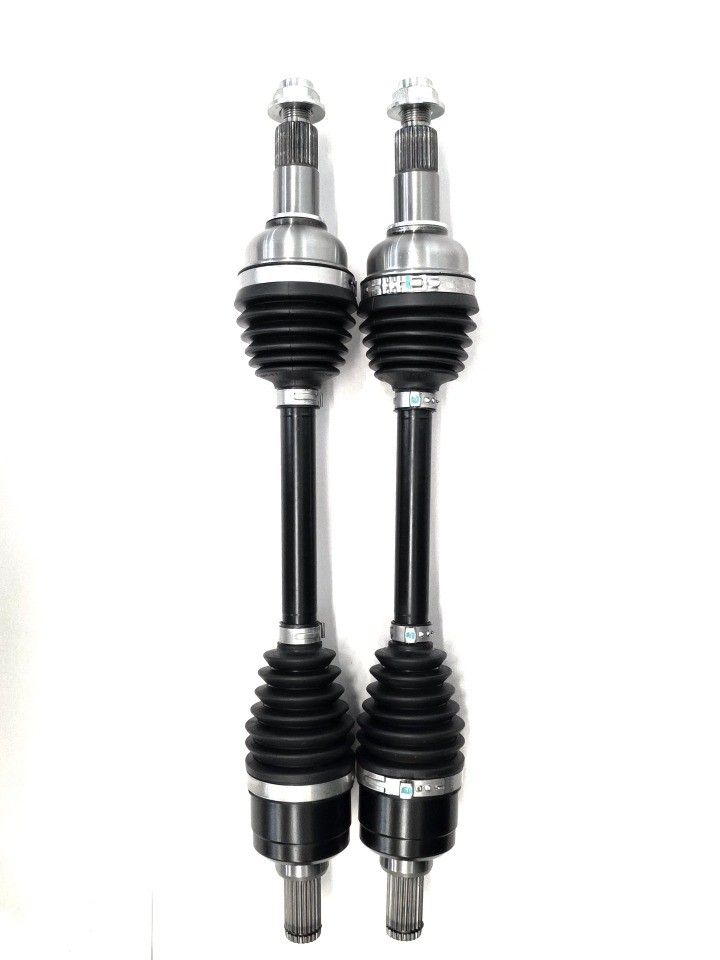

This is a pair of new OE type CV axles.
Precision machined and made as a direct replacement, no modifications necessary.
Quality tested for smooth articulation and reliable performance.
Ships fully-assembled and ready to install.
*made as an OE replacement, and not guaranteed to work with lifted vehicles or modifications of any kind
Product details:
- Fits rear, left and right on the following Yamaha ATV models: 2009-2014 Grizzly 550, 2007-2013 Grizzly 700, 2018-2025 Kodiak 450, 2016-2025 Kodiak 700.
- Built with chromoly steel from end to end for superior strength and longevity. Made to OEM specs for easy installation. Ships fully-assembled and ready to install.
- Each axle is engineered using the latest technology and is tested vigorously for quality assurance. CV Boots are packed with high-temperature, high-performance moly grease and fastened with stainless steel straps.
- Replaces OEM # 28P-2530V-00-00, 28P-2510F-00-00, 28P-2518E-10-00. Compressed length - 530mm (both), Inboard spline count - 23 (both), Outboard spline count - 27 (both).
- Warranty: 1 year. Please note lift kits, oversized tires or other modifications will void warranty, for use with stock equipment only. Torn boots are also excluded from warranty.
