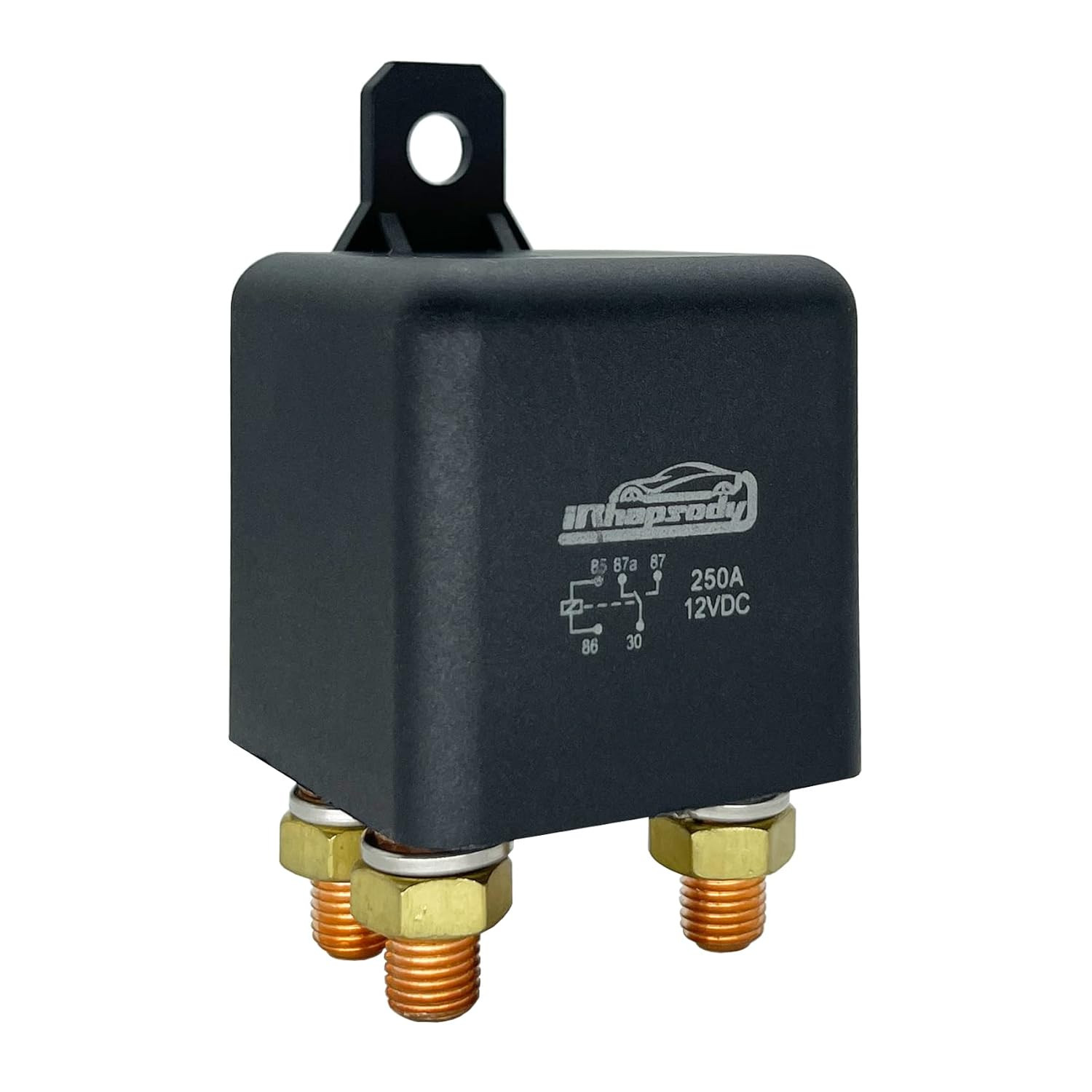

Relay 250A 12V Continuous Duty SPDT 5-Pin High Power Relay For Sale

• Our coil power is 1.8W, and coil resistance is 80ohms. It is more reliable than 2.4W (60 ohms) and 4.8W (30 ohms) relays on the market
• Large capacity, high current carrying capacity, heavy-duty make/break relay. But never go beyond its capabilities, try to stay 10 to 15% below what the rate is for
• Rated voltage: 12vdc; Pickup voltage: 8v; Dropout voltage: 1.2v
• The size of the round stud terminals: M8/8mm
• Ideal for split charging or any vehicle needing a high power relay

12 V DC 250 Amp Split Charge Relay
Heavy Duty 5 Pin SPDT (Single Pole Double Throw) relay
Nominal coil voltage: 12 V DC
Pickup voltage: 8 V DC
Dropout voltage: 1.2 V DC
Maximum applied voltage: 14 V DC
Max Switching Current: 250A
Max Switching Voltage: 14 V DC
Temperature Range: -30 ~ +80 degrees Celsius
Feature
1), Advantage - coil power: 1.8W; coil resistance: 80 ohms. It is more reliable than 2.4W (60 ohms) and 4.8W (30 ohms) relays on the market.
2), Large capacity: 250 amp high current carrying capacity, heavy duty make/break relay.
3), Ideal for split charging or any vehicle needing a high power relay.
Package Content: 1 x 250 Amp 5 Pin Relay
