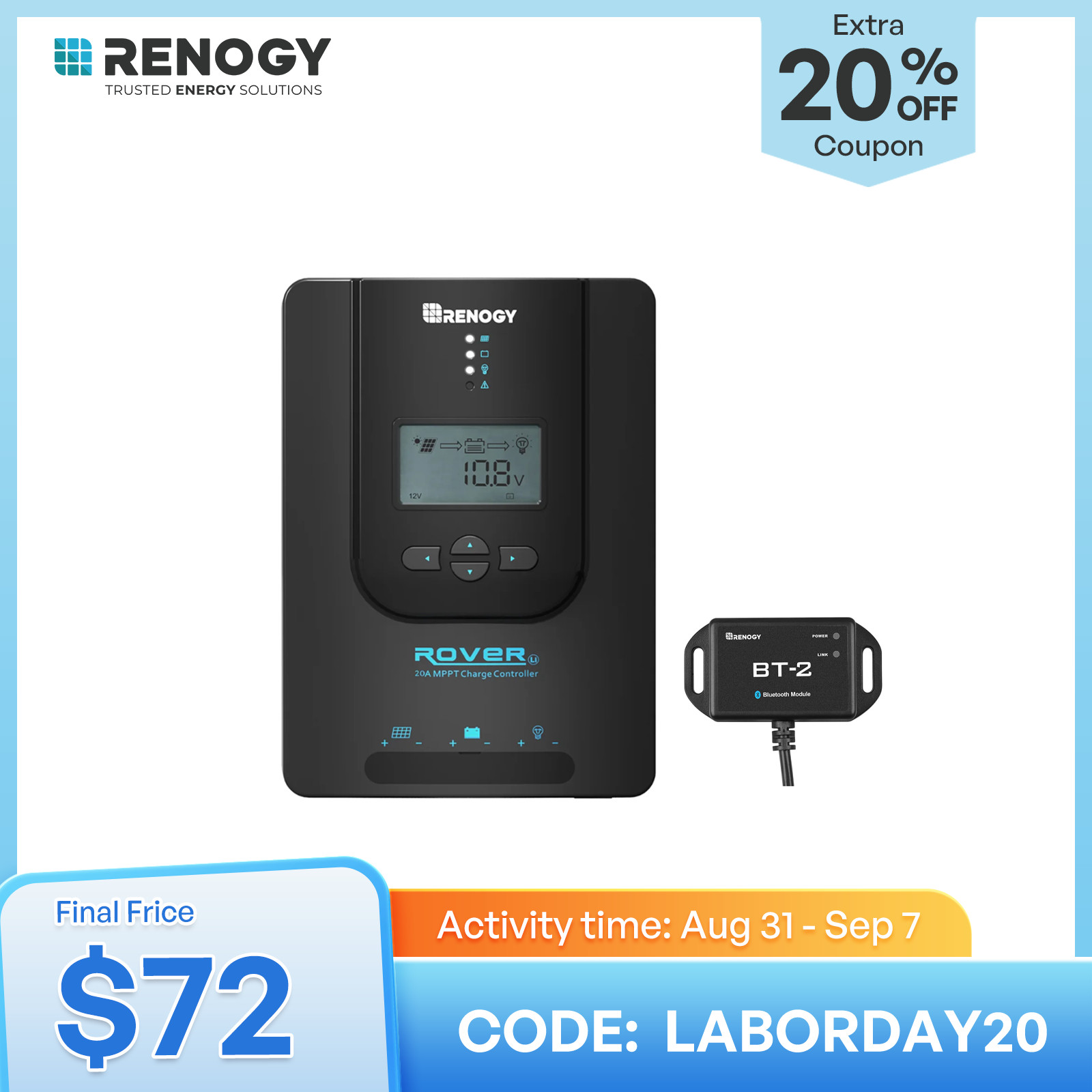

Renogy Rover 20A 12V/24V MPPT Solar Charge Controller LCD Regulator w/ Bluetooth
Renogy Rover
Accessories
- Bluetooth Module BT-1: 16.4 ft cable lengthT
- emperature Sensor：9.8ft cable length 4
- * Mounting Brackets
- Max. Terminals Size 8 AWG 10mm2
- Communication Protocol : RS232 (Renogy BT-1)
- CE and FCC Class B Part 15 Compliant
20A/30A/40A MPPT Solar Charge Controller w/ Bluetooth ModuleRapid, Efficient, and Safe Charging
It has up to99% tracking efficiencyto allow you to charge the battery from solar panels at the maximum power point!
Capable of automatically detecting12V/24V battery systems, this crucial system component can also work with all popular battery types, such asSealed, AGM, Gel, and Flooded.
The controller also has theself-diagnostic capabilityand will highlight any system errors usingadvanced fault-targeting technology.
- Nominal System Voltage: 12/24V (Auto-Detect for Non-Lithium types)
- Rated Charge Current 20A
- Max. PV Input Voltage: 100 VDC
- Max. PV Input Power 12V/260W, 24V/520W
- Dimensions 210 x 151 x 59.5 mm; 8.27 x 5.94 x 2.34 in
- Weight 1.4kg / 3.08 lb
Advanced Ultra Fast Maximum Power Point Tracking
Renogy Innovative MPPT technology with high tracking efficiency of up to 99% and peak conversion efficiency of 98%. It is the best charging solution even in cloudy environments where the max power point of the solar panels will fluctuate all day.
Temperature Monitor and Compensation
Die-cast aluminum design ensures excellent heat dissipation. Fitted with a Remote Temperature Sensor, the Rover MPPT Charge Controller can measure battery temperature in real-time and use this data for very accurate temperature compensation, assuring stable and constant charging.
Incredibly Easy to Install and Maintain
Mounting Brackets is in the package and the RS232 communication port the Renogy Rover to communicate with the Renogy BT-1 Bluetooth module will enable you to monitor the status and productivity of your panels throughRenogy DC Home App.
Intelligent Charging Protection
Renogy Rover MPPT provides 4-stage charging (Bulk, Absorption, Float, and Equalization) and features a comprehensive set of electronic protection functions such as stopping reverse current at night (from the battery back to the solar panel), automatic cut off to prevent over-charging and deep discharge, solar panel over-voltage, overload, short circuit and reverse polarity protection.
Max. Solar Input Power 12V/260W, 24V/520W
The Rover MPPT charge controller can work with standard off-grid 12/24V solar panels with high voltage or multiple panels with voltage up to 100V. In particular, this controller will significantly increase the efficiency of a solar system where the solar panel voltage is much higher than the battery voltage.
Upgraded Energy Monitoring Experience
By adding the Renogy ONE M1 to your system, Wi-Fi connectivity uploads energy status to the data cloud in real-time. Now you can monitor the system from Renogy ONE M1 when you are at home, or through the DC Home app on your phone when you are out to explore.
