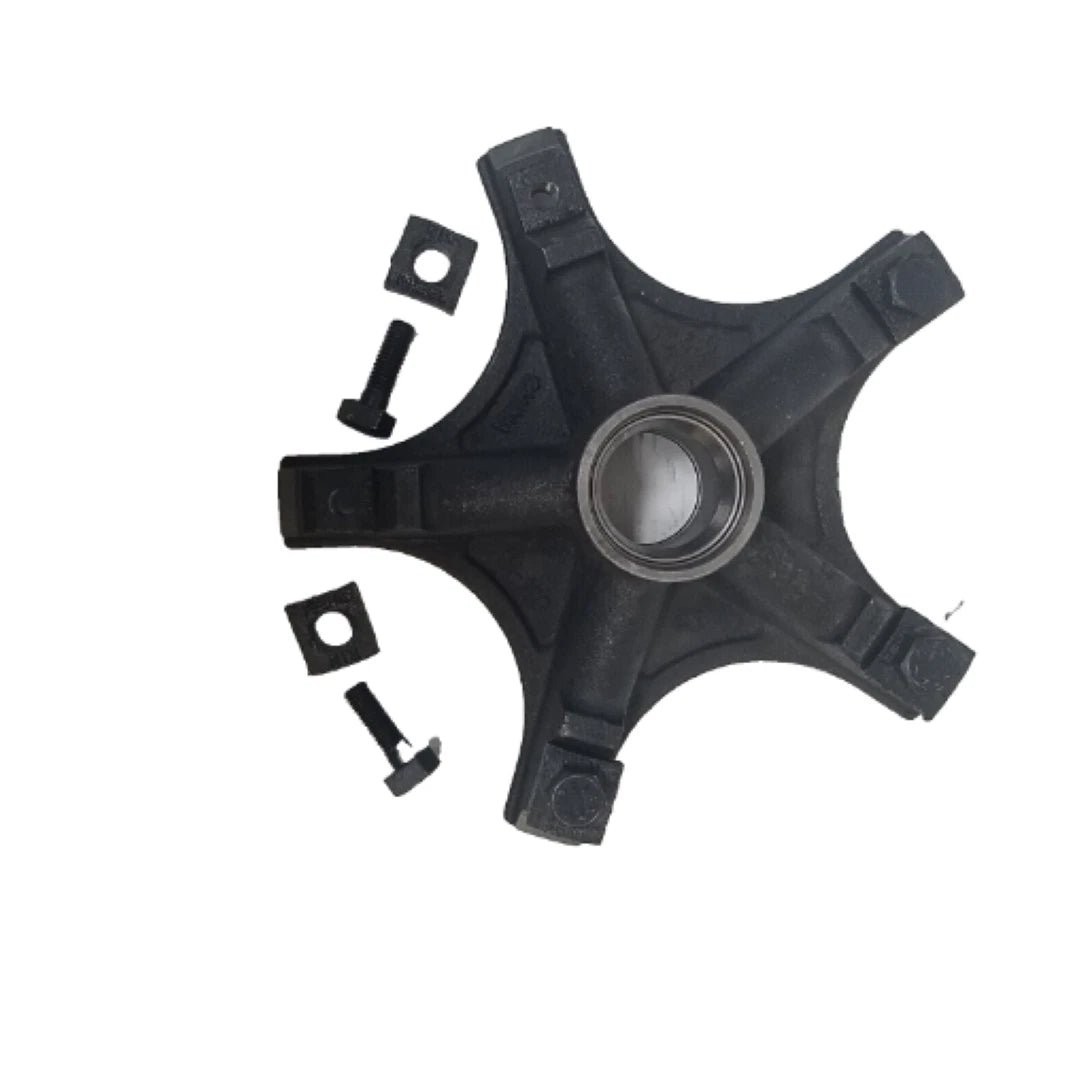

Mobile Home Style Idler Hub – 5 Lug – Fits Dexter 8-261-24 – Open Center
Part Number: MHI-122458-RCB
Replacement mobile home style idler hub for select trailer applications using open center 5-lug wheels and 14.5" rims.
This hub is cupped with bearing races pressed in and is commonly used on mobile home and certain utility trailer axles.
Designed to fit Dexter hub reference 8-261-24 when used with the specified bearing set.
Included
Component
Details
Idler Hub
Mobile Home / Utility Style – 5 Lug – Cupped
Bearing Cups
Pressed In
Wheel Type
Open Center Wheels – 14.5" Rim
Required Components (Not Included)
Part Number
Specification
L68149
1.378" I.D. Inner Bearing
LM67048
1.250" I.D. Outer Bearing
010-040-00
Mobile Home Seal – 1.938" x 2.51"
DC-250L
2.44" Grease / Dust Cap
R&P Knowledge Hub
Mobile home style hubs are commonly used on transport and certain utility trailers that utilize 14.5" open center wheels.
These hubs are typically designed for specific bearing combinations and seal diameters that differ from standard 5 on 4.5" trailer hubs.
When replacing a hub, confirm bearing numbers, seal dimensions, and wheel type before installation to ensure proper fit and safe operation.
Specifications
Specification
Value
Bolt Pattern
5 Lug (Mobile Home Style)
Wheel Compatibility
14.5" Open Center Rim
Bearing Races
Pre-Installed
Dexter Reference
8-261-24
Hub Type
Idler (Non-Brake)
Verify specifications before installation.
