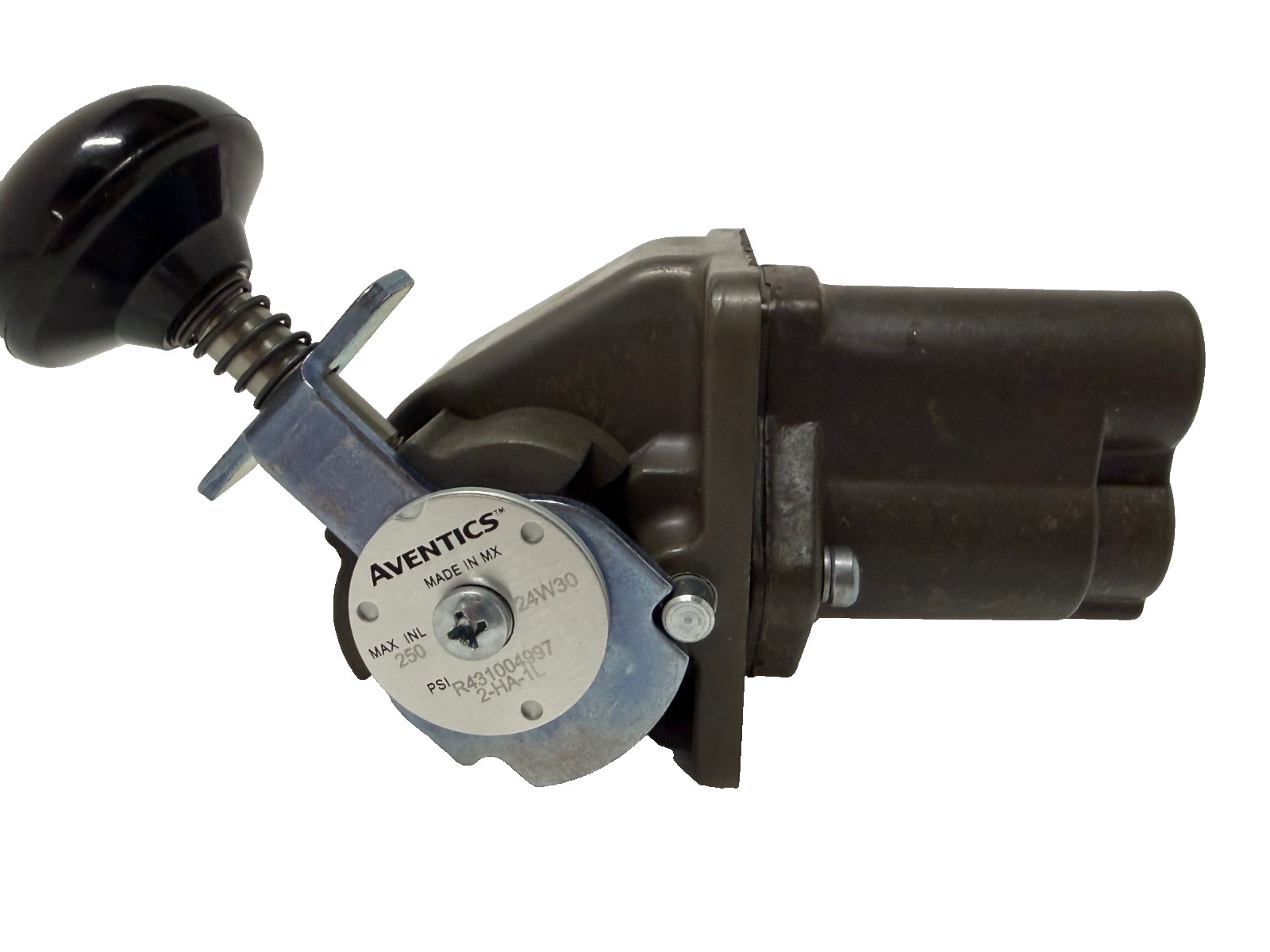

The model 2-HA-1 \"A\" PILOTAIR Valve is a panel mounted, handle operated 3-way valve with 1/4\" NPT inlet and outlet ports. It contains a spring opposed detent cam to hold the handle in either of its two extreme positions. The 2-HA-1L model is available with an additional external handle latch which requires manual release to insure against unintentional operation. The 2-HA-1W model is spring returned from position 2 to center position, which is the same as position 1 (normally closed).
The model 2-HA-1R, 2-HA-1LR and 2-HA-1RW \"A\" PILOTAIR Valves are the same as the 2-HA-1 and 2-HA-1L models except that the cam is reversed to obtain pull instead of push operation. The 2-HA-1R model may also be mounted with the handle on the left hand side for tandem push operation with the 2-HA-1 model.
The Panel-Mounted \"A\" PILOTAIR Valve is a poppet-type pneumatic directional control valve consisting of a cam housing portion and a valve portion containing from one to four 3-way valve units.
The \"A\" PILOTAIR Valves’ streamlined compact design makes them especially suited for deluxe panel mountings such as in consoles or control panels. They can be mounted in either horizontal or vertical panels. The internal parts are enclosed to make them ideal for outdoors installations or other unfavorable working conditions.
