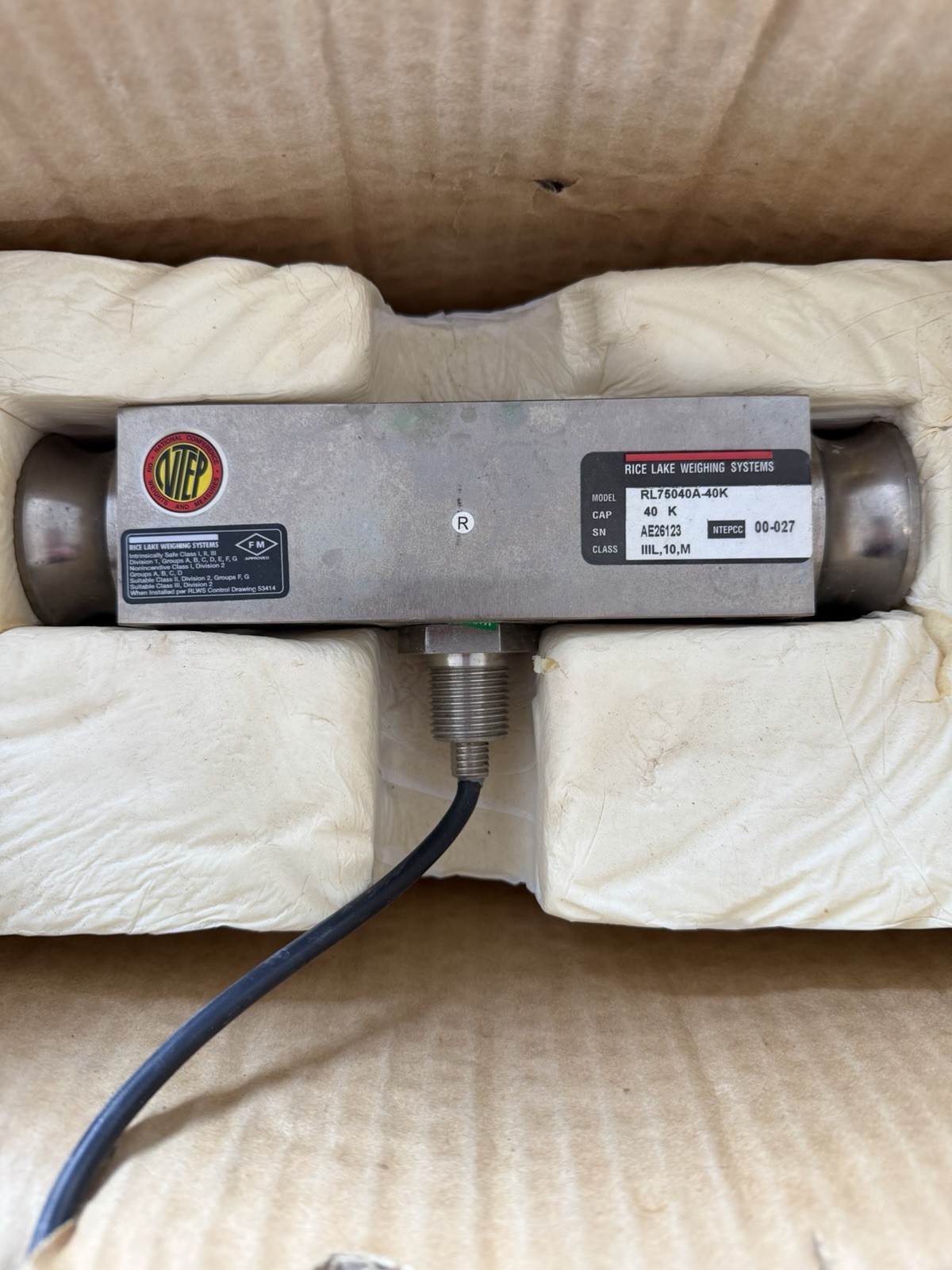

The Rice Lake RL75040 double ended beam load cells are designed for center mounting and double link loading. The RL75040 is most commonly used in truck scale applications. The RL75040 is compatible with Unilink/Translink suspension up to 75,000 lb. The RL75040 series load cells come with a 35 ft load cell cable and are constructed of alloy steel with nickle plating. The RL75040 is NTEP approved Class III 1:10,000 for legal for trade applications.
RL75040 load cells are used in the following Rice Lake Weighing module kit: Translink. The RL75040 load cells are interchangeable with VPG Sensortronics 65040A, Artech 80310, Thurman TSC 840, and VPG Celtron DLB load cells.
Features
40,000 lb capacity rating
NTEP approved Class III 1:10,000
Stainless steel construction
Environmentally sealed IP 67 rating
3 mV/V output
Load cell cable length 35 ft
Safe overload up to 150% capacity
Safe sideload up to 100% capacity
