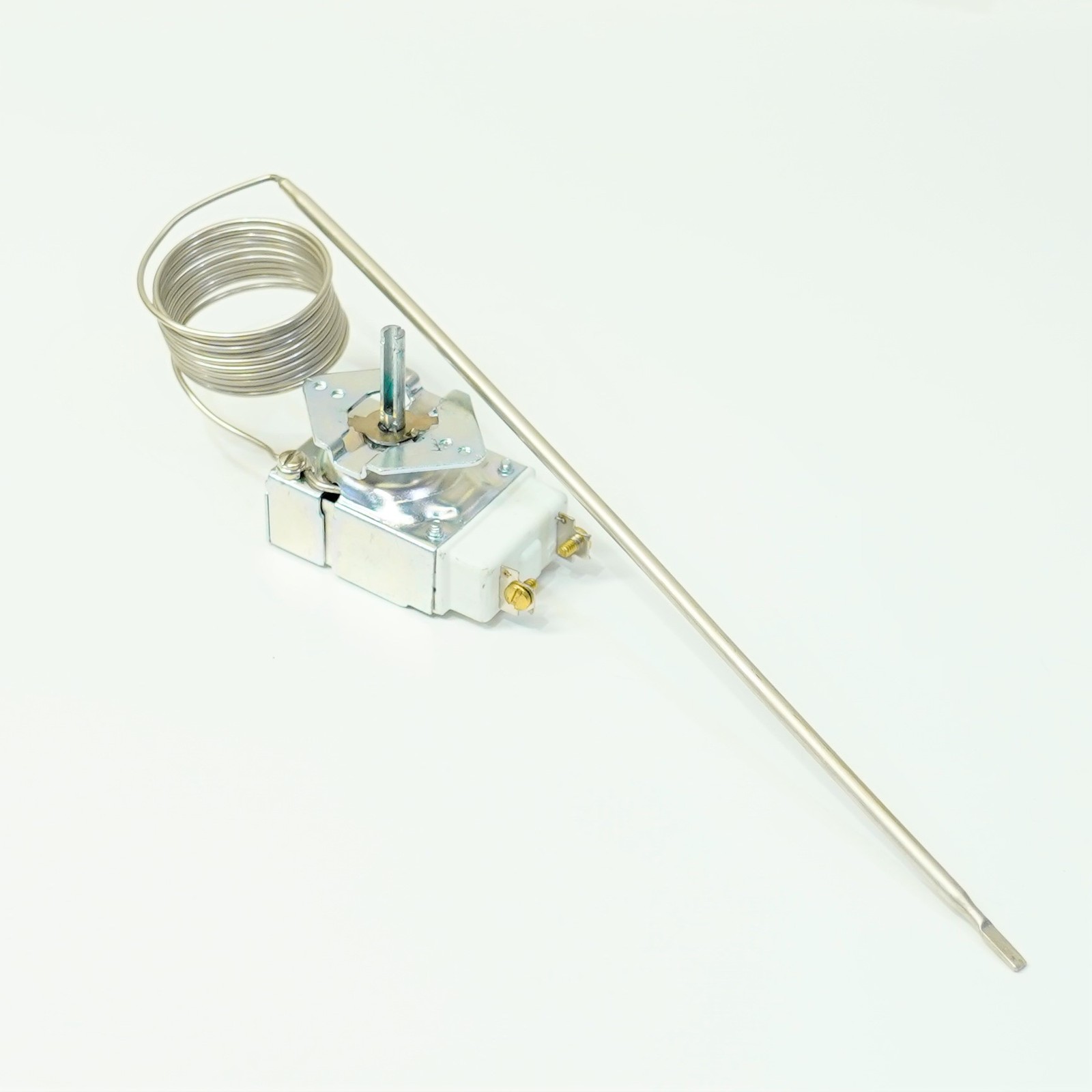

Robertshaw RX-34-60 Electric Thermostat Replacement for Southbend 1191727
Robertshaw Part Number RX-34-605300 Series Electric Thermostat for Southbend RangeReplacement for numbers 1191727 and 46-1767Temperature Range: 175 to 575 degrees F (79 to 302 degrees C)Model RX, Millivolt
The Robertshaw 5300 Series Electric Thermostat is a snap-acting, single pole single throw (SPST) type thermostat. Most thermostats use silver contacts and have heavy-duty terminals for durability and sustained accuracy. The snap-action mechanism is precise and reliable. This direct acting series of thermostats is suitable for the commercial cooking industry.
Features and Benefits
- Rugged and compact design for versatility and long life
- Bulb and capillary available in copper, nickel plated copper and stainless steel (most models)
- Plastic coating available for protection against moisture, dust, etc. (most models)
- Dials of heat resistant plastic available
- RX millivolt models with hermetically sealed reed switch
- Stem flat in down position
- Ambient temperature 200 degrees F (93 degrees C)
Specifications
- Series Application: Electric Cooking Control
- Temperature Range: 175 to 550 degrees F (79 to 302 degrees C)
- Capillary Length: 60\"
- Bulb Size: 3/16\" x 11.250\"
- Stem Length: 1\"
- Mounting Type: (2) #6-32 @ 1.750\" (2) #6-32 @ 1.312\"
- Dial Type: \"D\" shape .250 x .186 fl t
- Mechanical Differential: 12 degrees F
- Stuffing Box: NA
- Electrical Rating: .67 Amp @ 5V DC
