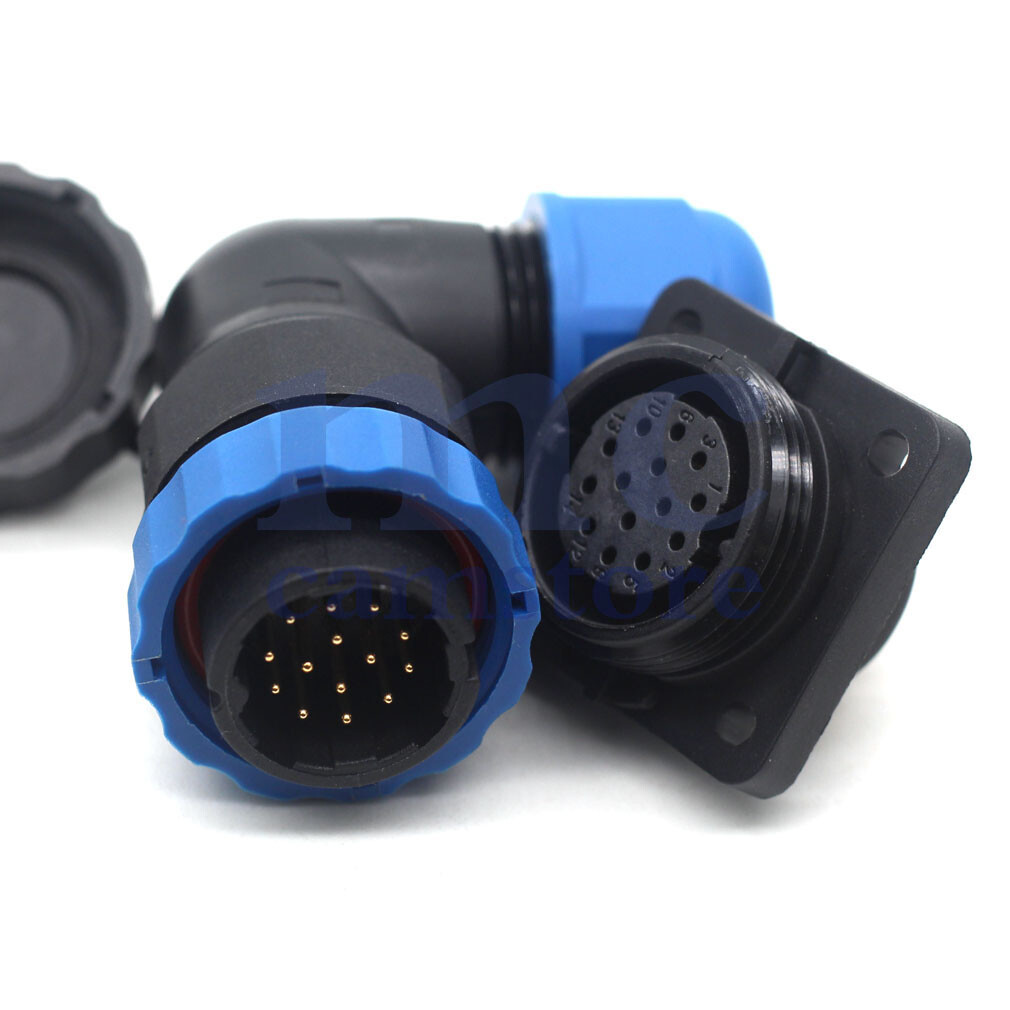

SD20 1 2 3 4 5 6 7 9 10 12 14 pin IP68 Bulkhead Waterproof Connector Plug Socket,Aviation Cable ConnectorSpecifications:1pin ，2pin， 3pin， 4pin， 5pin
Rated current (A): 25A
Contact diameter×quantity: Φ2.8x1/ Φ2.8x2/ Φ2.8x3/Φ2.8x4/ Φ2.8x5
Rated voltage (AC.V.): 380V
Withstand voltage (AC.V) 1 minute: 1500V
Contact resistance: 1mΩ
Wire recommendation: AWG9/ <2.8mmSpecifications , 6pin, 7pin :
Rated current (A): 10A
Contact diameter × quantity: Φ1.8x6 / Φ1.8x7
Rated voltage (AC.V.): 380V
Withstand voltage (AC.V) 1 minute: 1500V
Contact resistance: 2mΩ
Wire recommendation: AWG13/ <1.8mmSpecifications , 9pin, 10pin 12pin 14pin:
Rated current (A): 5A
Contact diameter × quantity: Φ1.0x9 / Φ1.0x10 / Φ1.0x12 / Φ1.0x14
Rated voltage (AC.V.): 250V
Withstand voltage (AC.V) 1 minute: 1500V
Contact resistance: 5mΩ
Wire recommendation: AWG18/ <1.0mmCoupling: Threaded Coupling
Shell Material: Nylon 66, Fire Resistance: V0
Insert material: PPS man temperature 260°
Contact Material: Brass (Gold Plated)
Termination: Solder
Cable outer diameter range: A8-12mm
Protection class: IP68
Durability: ≥500 times
Working temperature: -25℃～85℃
Insulation resistance: 2000MΩWhat\'s in the package:
1 plug + 1 socket + 4 sets of screws
