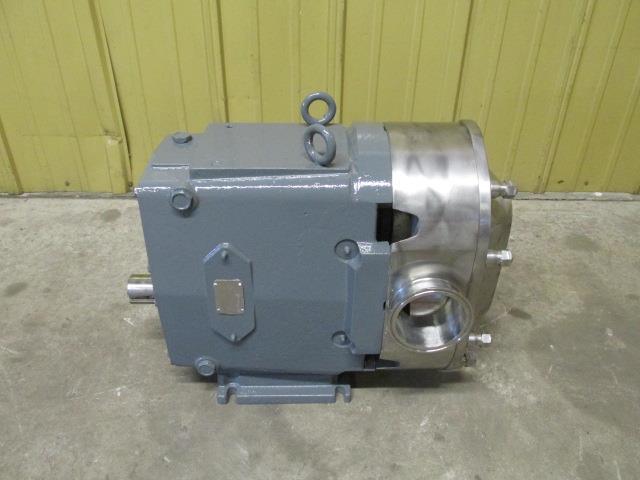

Refurbished SPX Waukesha Cherry-Burrell stainless steel rotary positive displacement pump.
Model 220U2 Waukesha pump specifications:
- Displacement – 0.521 GPR (1.972 LPR)
- Nominal capacity to 310GPM (70.4 m3/hr)
- Port size – 4”
- Max pressure – up to 300 PSI (20.7 Bar)
- Maximum RPM – 600
Features of Universal 2 series pumps are listed below.
- 316 stainless steel pump body and cover; 316L optional.
- Exclusive, non-galling Waukesha “88” alloy rotors standard;permits running at tighter clearances and pumping a wide range of viscosities. 316 stainless steel rotors also available.
- No internal rotor contacteliminates need to rely on pump fluid as a lubrication.
- Rotor/shaft connection sealedfrom product zone.
- Mechanical seals standard.Options include single, knife edge, low pressure flush, and high pressure barrier double seals.
- Up to 500 (34.5 bar) psi pressure capability.
- Rotor nutdesigned for extended service without loosening.
- No bearingsin product zone.
- Larger diameter 17-4 PH shaftsin seal area for greater strength and stiffness. Helps eliminate vibration; extends seal life. 316SS optional.
- Heavy duty cast iron bearing frame. (Stainless steel available as an option)
- Double tapered roller bearings on all models.Contribute further to precise rotor position and longer seal life.
- Grease lubed bearingsfor positive lubrication to all bearings over entire speed, temperature and pressure range.
- Body retaining screwsfor maintaining mechanical seal contact during inspection.
Installation Features
- Bi-directional flow.Rotors, locked with unique washers and torqued nuts, rotate securely in either direction.
- Interchangeable installation dimensionswith Universal 1 and Universal Lobe PD Series pumps.
- Versatile 3-Way mountingof gear case, including vertical alignment of ports.
- Upper or lower drive shaft position.
