Well, it’s been a while since I’ve introduced a new part and here it is, AND the revision is done.Our STV-X+ replaces the Sanken STV series of “Silicon Temperature Compensating Diodes”. Not a Varactor diode, I’ll explain the difference later, and hope a picture is worth a thousand words.I was working on an SX-1010 the other day and needed the STV-3H. I had two in stock, but I realized I should make some.

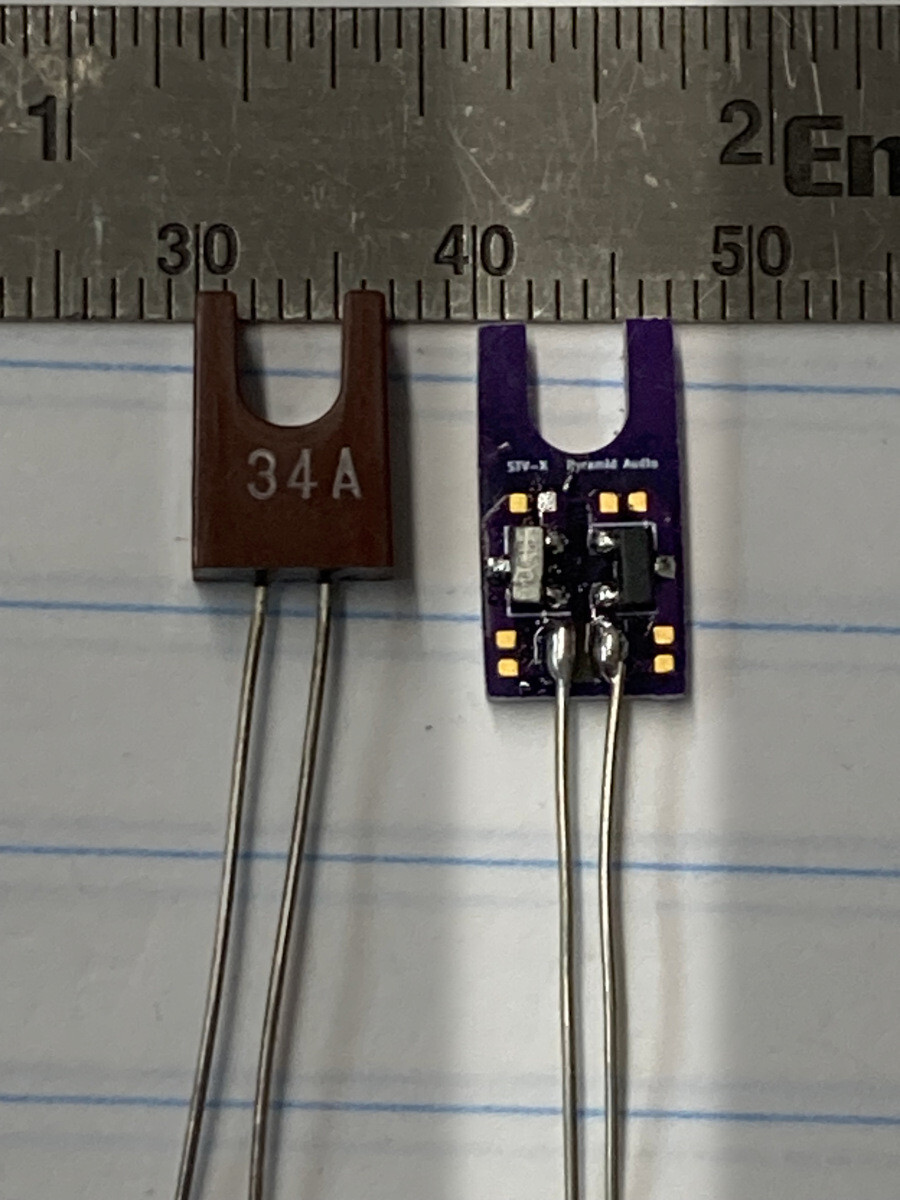

My part is four diodes in series with solder pads. Each solder pad you bridge, you are shorting out one junction. You can choose to have 1, 2, 3, or 4 junctions. So several different part numbers can be replaced with my single part.I did tests at 6mA like older designs use. TWO of the junctions are BAV99 signal diodes and TWO are BAT54 Schottky. The result is a +/- 100 mV match to a new STV-4 I have in stock. I carefully matched the physical dimensions best I could, including the U shaped mounting hole.
The family picture shows the STV-3 is brown and the STV-4 is black. the green dot is polarity.As for the VARACTOR diode confusion:The SC-15 and SC-20 SILICON VARACTOR DIODES are voltage variable capacitors mainly used in electronic tuners. The STV-3H and STV-4H SILICON TEMPERATURE COMPENSATING DIODES are for stabilizing bias in amplifiers. In the Sanken Databook they are on the same page. There is at least one photo of a Marantz parts bag perpetuating this error.
Other Products on Offer:
S-100+..........Sony SS-120A, Optonica S-100
SP-40W+.........SX-650, SA-7300, SA-6700, Rotel RA-414, Technics SA-425
STK0050+........SX-780, SR4000, KR-5010, RS-2004A, JA-S44, JCX-2050
STK0059+........Technics SA-300, SU-8044, Sanyo DCX-811, Pioneer SX-680, SX-690
STK0080+........Fisher RS-2010, CA-880, CA-800, Marantz SR6000
STK1060+........Sanyo STK1030, STK1040, STK1050, STK1060
STK1080+........Sanyo STK1070/80, Akai AA-R42STV-X+..........Sanken STV-2H, STV-3H, STV-4HTA-100W+........Kenwood KA-9100/9150
TA-200W+........Kenwood KR-9600
ODR OUTER+......Converts Pioneer ODR Head units proprietary socket to Sensor for Home AutomationNOTE: The TA100W and TA-100WA are very similar, but do not run at the right temperature if swapped.
