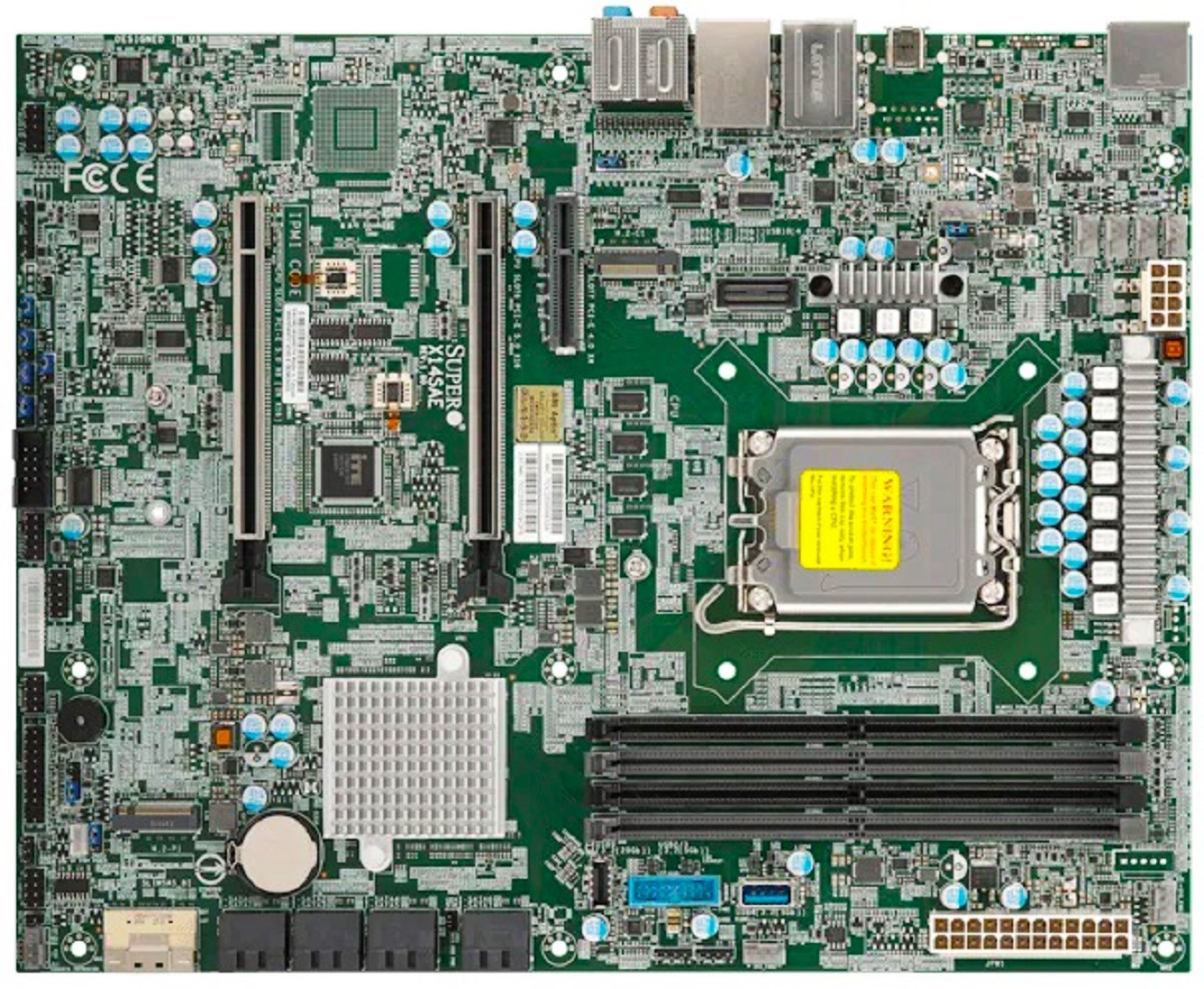

SUPERMICRO MBD-X14SAE-B ATX Workstation Motherboard LGA-1851 Intel Ultra 4x DIMM For Sale

NewSupermicro MBD-X14SAE-BWorkstation BoardLGA-1851 | Intel Core Ultra 9/7/5 | 4x DDR5 | PCIe 5.0 & 4.0 | Dual M.2 | 2.5G & 1G LAN | AMT/vProBuy with confidence save and get free and fast shipping
SpecificationsPhysical StatsForm Factor

• ATX

Dimension

• 12\" x 9.6\" (30.5cm x 24.4cm)

ProcessorCPU

• Single V1 (LGA-1851)
• Intel® Core™ Ultra 9/7/5 and Core™ Ultra 7/5 Plus Processors

Core Count

• Up to 24C

Note

• Supports up to 125W TDP CPUs

System MemoryMemory

• Slot Count: 4 DIMM Slots
• Max Memory (1DPC): Up to 256GB 5600MT/s ECC/non-ECC DDR5 UDIMM

Memory Voltage

• 1.1V

Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)

On-Board DevicesChipset

• Intel W880

SATA

• 8 SATA (6Gbps)

Network Controller

• Single LAN with Intel® I226LM Ethernet Controller
• Single LAN with Intel® PHY I219LM LAN controller, for AMT/vPro

Input / OutputUSB

• 2 USB 3.2 Gen1 port(s) (Header)
• 3 USB 3.2 Gen2 Type-A port(s) (Rear)
• 1 USB 3.2 Gen2x2 Type-C port(s) (Rear)
• 1 USB 3.2 Gen2x2 port(s) (Header)
• 1 USB 4 Type-C port(s) (Rear)

Video

• 1 Intel® Thunderbolt™ 4 Type C (Shared w/ USB4/ DP2.1) 2.1 port(s)
• 1 Display Port port(s)
• 1 HDMI 2.1 (8K@60Hz) port(s)

Serial

• 1 COM port(s) (header)

Audio

• ALC 888S HD Audio

TPM

• 1 TPM 2.0 onboard

Expansion SlotsPCI-Express (PCIe) Configuration

• 1 PCIe 4.0 x4 slot
• 2 PCIe 5.0 x16 slots
• 1 PCIe 4.0 x8 SlimSAS slot

M2

• 1 M.2 PCIe 4.0 x4 slot (M-key 2280/22110)
• 1 M.2 PCIe 5.0 x4 slot (M-key 2280)

System BIOSBIOS Type

• AMI 32MB UEFI

BIOS Features

• ACPI 6.5
• UEFI 2.9
• SMBIOS 3.8 or later

ManagementSoftware

• Supermicro Server Manager (SSM)
• Supermicro SuperDoctor® 5 (SD5)
• Super Diagnostics Offline (SDO)
• SAA (limited support)

SecurityHardware

• Trusted Platform Module (TPM) 2.0

PC Health MonitoringVoltage

• +1.8V CPU,+12V,+3.3V,+5V,1.05 (PCH),3.3V standby,CPU temperature,CPU thermal trip support,Memory temperature,PCH temperature,System temperature,Triple Cooling Zones,UID,VBAT

FAN

• 7x 4-pin fan headers (up to 7 fans)
• 5 fans with tachometer status monitoring
• Fan speed control
• Overheat LED indication

Other Features

• 8-pin 12v DC power connector
• ACPI power management
• ATX power connector
• Chassis intrusion header
• Control of power-on for recovery from AC power loss
• CPU thermal trip support for processor protection
• RoHS
• Voltage and frequency overclocking
• WOL
