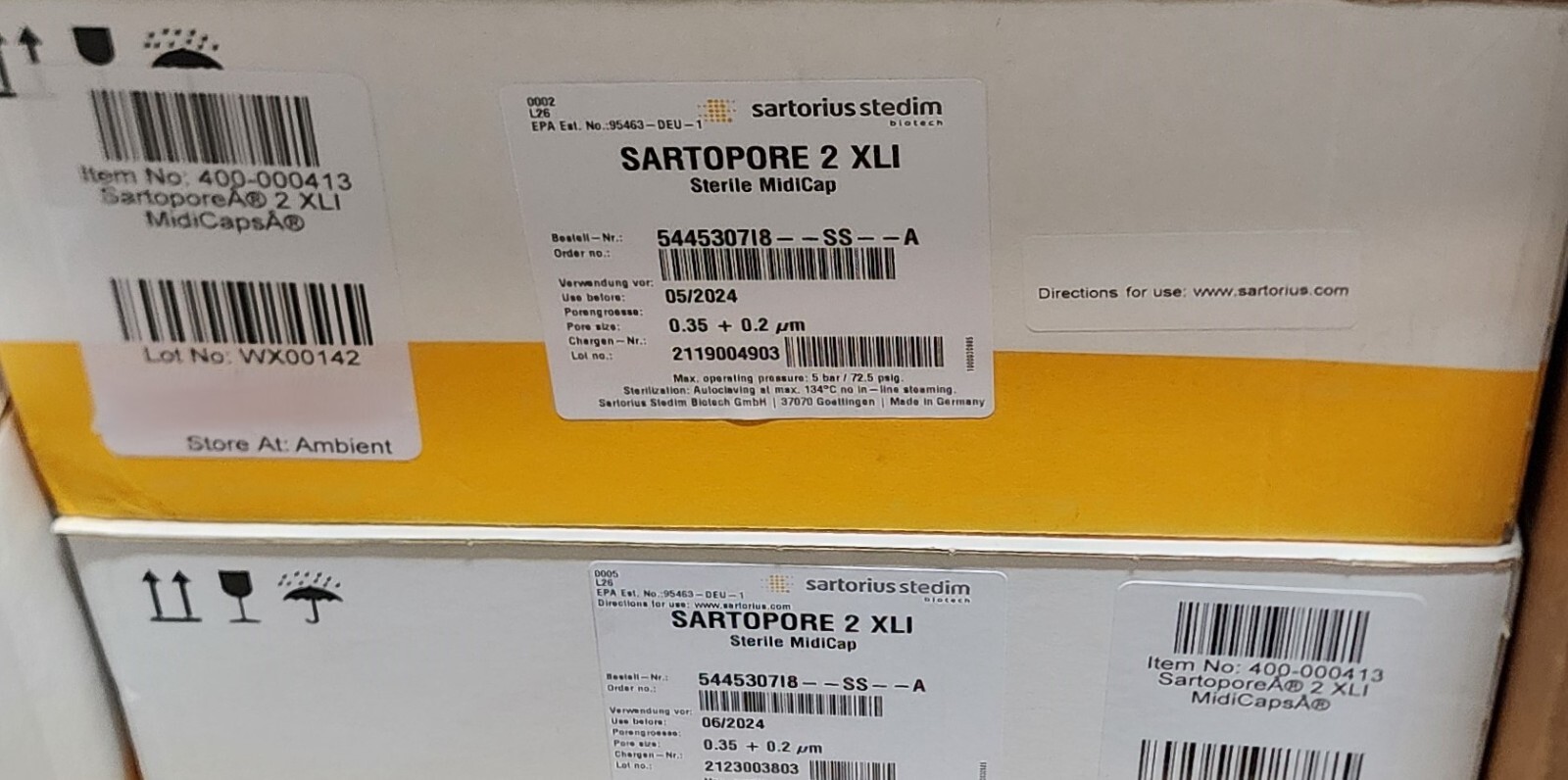

Sartorius 5445307I8--SS--A , SARTOPORE 2 XLI STERILE Midicaps 0.35 | 0.2 µm:
$259.00
Applications - ApplicationHigh capacity platform for conventional sterile filtration
- IndustryPharma / Biotech
Biological Information - Bacterial RetentionQuantitative Retention of 1 × E7 CFU/cm² Brevundimonas Diminuta ATCC® 19146 per ASTM methodology
Compliance Information - Bacterial Endotoxins< 0.25 EU/mL as determined by the LAL test
- Biological ReactivityAll materials of this filter element meet the requirements of the current USP Biological Reactivity tests <88> for plastics Class VI (Systemic Injection, Intracutaneous and Implantation tests).
- ExtractablesThe total amount of extractables is well below the limits established by the current USP unter "Sterile Water for Injection".
Connections (Physical) - Connector Inlet1.5" Tri-Clamp 50 mm
- Connector Outlet1.5" Tri-Clamp 50 mm
Dimensions - Filter Sizesize 8 (0.13 m² / 1.4 ft²)
- Filtration Area0.13 m²
- Outer Diameter108.5 mm (77 mm without Connection / Valves)
General Specifications - Capsule/Cartridge FormatMidicaps®
- Maximum Allowable Back Pressure2 bar (29 psi) at 20°C; 1.5 bar (21.8 psi) at 50°C
- Minimum Required Bubble Point3.2 bar | 46 psi
- Vent ValveStandard
Materials of Construction - Housing MaterialPolypropylene (PP)
- Material o-ring | sealSilicone (SI)
- Support FleecePolypropylene (PP)
Operating Conditions - Maximum Differential Pressure20 °C: 5 bar, 50 °C: 3 bar
- Maximum Operating Pressure5 bar (72.5 psi)
Physicochemical Information - Non-Fiber ReleasingThis filter product complies with the title 21 of the Code of Federal Regulations (CFR), section 210.3(b)(6) and 211.72.
- Pore Size Final-filter0.2 µm
- Pore Size Pre-filter0.35 µm
Product Information - BrandSartopore® 2 XLI
- Pack Size4
Sterility/Purity - Sterilization MethodAutoclavable
Usage Protocols - Sterilization ProceduresAutoclaving: at 134°C, 30 min, 2 bar, min. 25 Cycles
|
|
