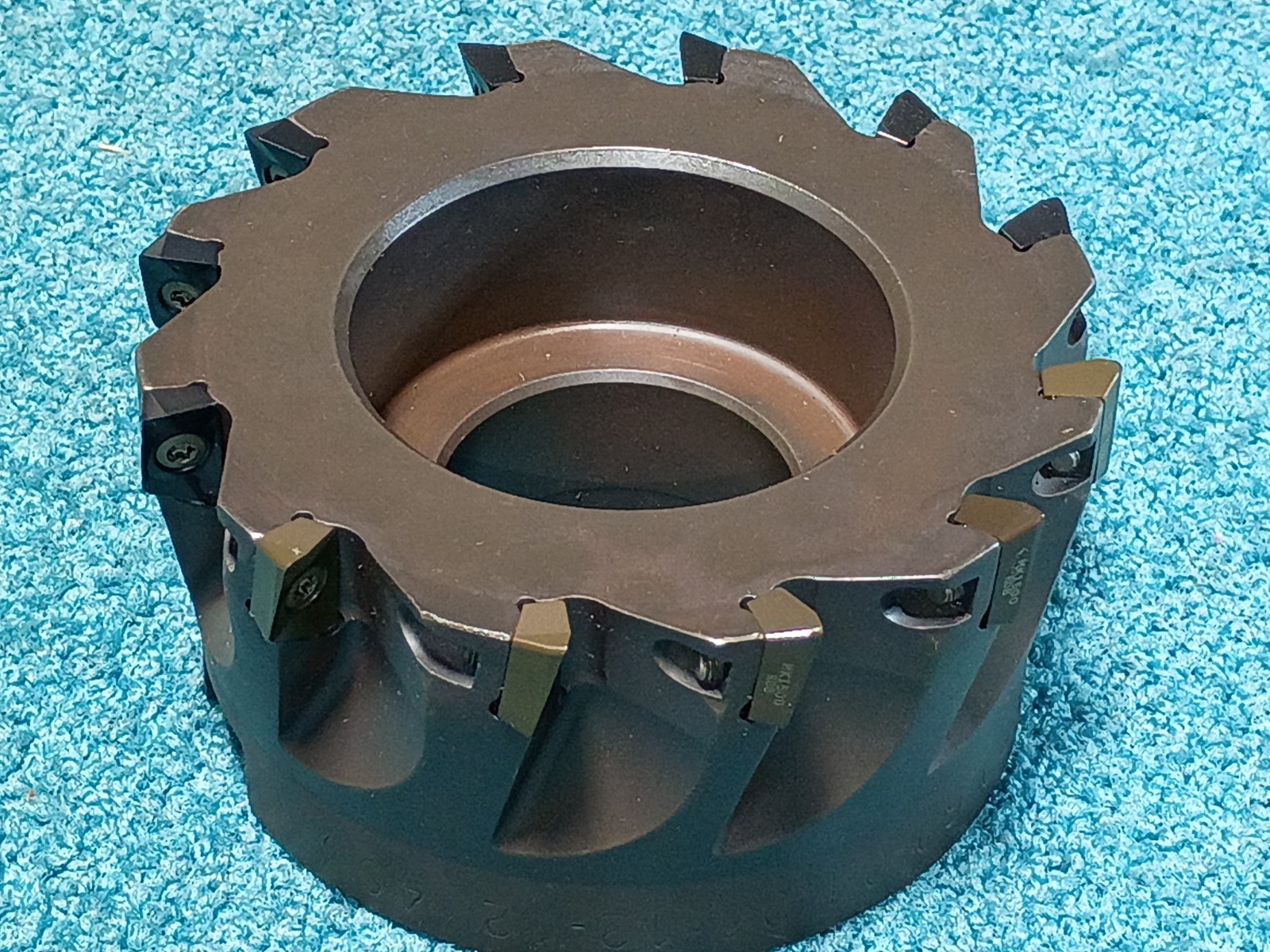

Seco R220.69-04.00-12-12 4\" Facemill 1-1/2\" Arbor New XOMX120408TR-M12 Inserts For Sale

Item #246Ready to use with brand new inserts.Seco R220.69-04.00-12-12 4\" Facemill 1-1/2\" Arbor New XOMX120408TR-M12 Inserts
The Seco R220.69-04.00-12-12 (often associated with Carboloy/Seco) is a 4\" indexable face milling cutter designed for heavy-duty metal removal. It features a 90° included angle, a 1.5\" arbor hole, and 12 insert stations.
Key Specifications
• Tool Type: Indexable Face Mill
• Cutting Diameter: 4 inches
• Arbor Hole Diameter: 1-1/2 inches
• Number of Inserts: 12
• Included Angle: 90 degrees
• Maximum Speed: 13000 RPM
Insert Information
This cutter typically utilizes XOMX1204... style indexable inserts. The 12 insert pockets provide excellent feed rates and material removal capabilities, making it well-suited for squaring, facing, and profiling operations on CNC machining centers and milling machines
The Seco R220.69-04.00-12-12 is a 4-inch indexable face mill that uses XOMX 12 series inserts (such as XOMX 1204).These 12mm inserts are designed specifically for high-performance face milling and are available in various grades and radii depending on your specific material (steel, stainless steel, cast iron, etc.).
