Description

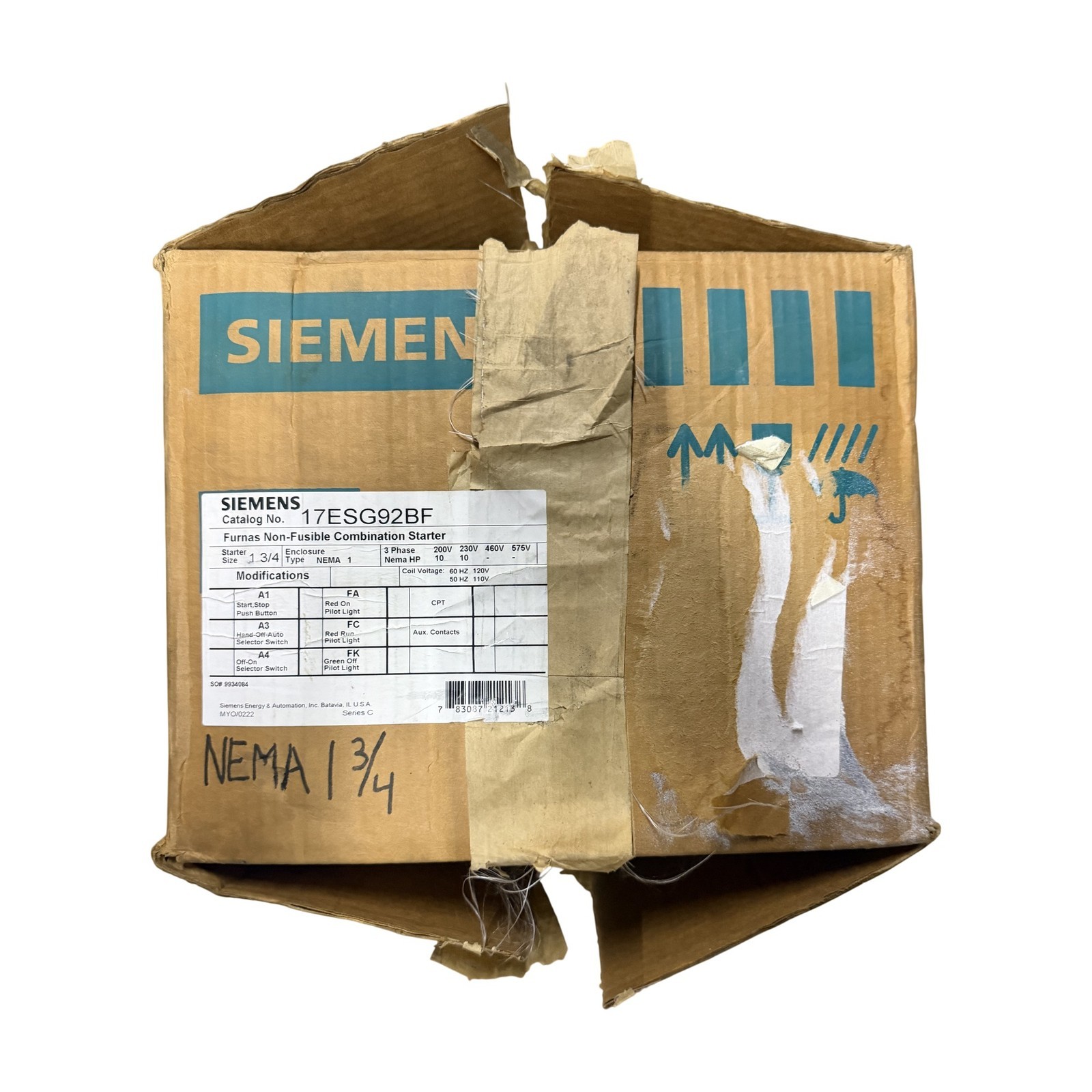

This is a Siemens (Furnas) catalog number 17ESG92BF non-fusible combination magnetic motor starter, Size 1-3/4, housed in a NEMA Type 1 enclosure. It is a Class 17/18 three-phase combination starter featuring a built-in disconnect circuit breaker, Furnas contactor, Furnas ESP100 solid-state overload relay, Hand-Off-Auto selector switch, red ON pilot light, and associated control wiring — all factory-assembled and Series C. The unit appears unused and in new condition despite arriving in a heavily worn outer shipping carton.
Features & (Furnas)Model Number17ESG92BFProduct TypeNon-Fusible Combination Magnetic Motor StarterSeriesSeries CStarter ClassClass 17/18Starter Size1-3/4Enclosure TypeNEMA Type 1 (Indoor)Phases3-PhaseHP Rating (200V / 230V / 460V)10 HP / 10 HP / — (per label)Coil Voltage120V / 110V (60Hz / 50Hz)Overload RelayFurnas ESP100 Solid-State Overload RelayDisconnect TypeNon-Fusible Circuit BreakerControl FeaturesHand-Off-Auto Selector Switch, Red ON Pilot Light, Overload Reset ButtonModificationsA1 Start/Stop Push Button, A3 Hand-Off-Auto Selector Switch, A4 Off-On Selector Switch, FA Red On Pilot Light, FC Red Run Pilot Light, FK Green Off Pilot LightEnclosure ColorGrayCountry of OriginUSA (Batavia, IL)What's Included
- Siemens 17ESG92BF Combination Magnetic Starter Assembly
- NEMA 1 Enclosure with factory-installed components
- Furnas Contactor (Size 1-3/4)
- Furnas ESP100 Solid-State Overload Relay
- Non-fusible disconnect circuit breaker
- Hand-Off-Auto selector switch
- Red ON pilot light
- Factory wiring diagram / instruction sheet (inside door)
- Replacement protective device with three-phase motor applications up to 10 HP at 200-230V. Designed for use with copper wire only. Field modification kits available per Siemens catalog for auxiliary interlocks, additional pilot lights, and transformer kits. Consult the enclosed wiring diagram for proper installation per NEC requirements.
