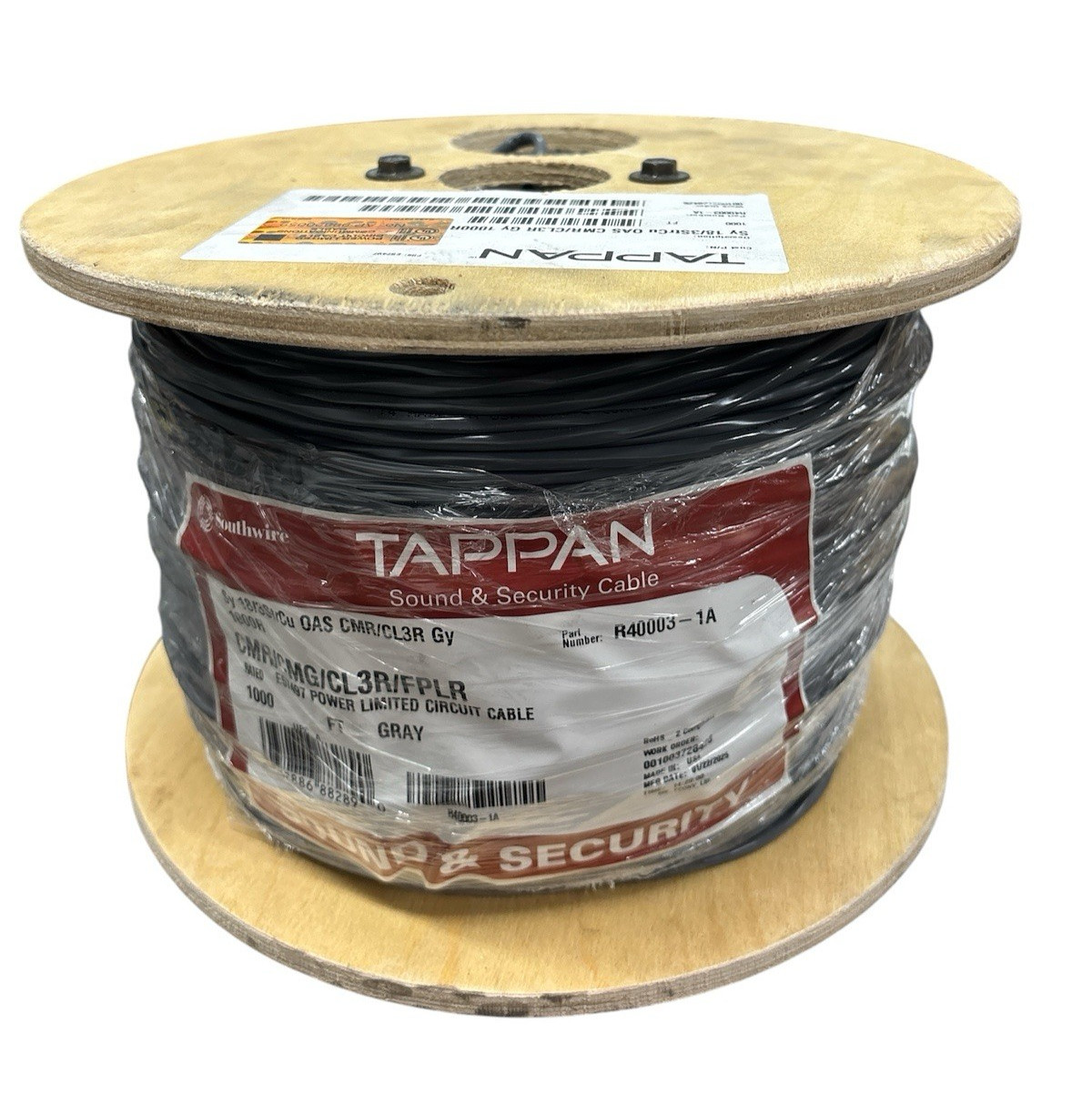

Southwire/Tappan R40003-1A 18/3C Communication/Alarm Cable CMR Gray 1000ft For Sale

Southwire/Tappan R40003-1A 18/3C Communication/Alarm Cable CMR Gray 1000ftBuyer will receive a 1000' reel of wire.
For use in Remote Control, Signaling, and Power-Limited circuits per NEC Article 725. Sizes 22 AWG - 16 AWG can also be used as communication circuits per NEC Article 800. Can be used in security, sound and audio, speaker cable, public address, intercom, sound reinforcement, alarm and access control circuits and power-limited controls. The conductors are cabled together; lay length varies depending on conductor count and gauge size.

• Flame Test: UL 1666
• Cable Type: CL3R, Also, CMR where UL permits (Sizes 16 AWG and smaller)
• Voltage: 300 Volts
• Temperature: 75ºC
• ASTM B8 Concentric-Lay-Stranded Copper Conductors
• UL 13 Power-Limited Circuit Cables
• UL 444 Communications Cables (90ºC, 300V)
• ASTM B8 Concentric-Lay-Stranded Copper Conductors
• UL 13 Power-Limited Circuit Cables
• UL 444 Communications Cables (90ºC, 300V)
• Cable Type:CL3R/FPLR/CMR/CMG
• Cond. Size:18 AWG
• Conductor Number:3
• Cond. Type:CU
• Cond. Strands:7
• Diameter Over Conductor (in):0.045inch
• Insulation Thickness (mils):5mils
• Jacket Thickness (mils):15mils
• Approx. OD (in):0.171inch
• Copper Weight (lbs/1000'):16lbs/1000'
• Approx. Weight (lbs/1000'):23lbs/1000'
• Shield Type:none
• DC Resistance at 25C (ohms/1000'): 6.669ohms/1000'
• AC Resistance at 75C Reactance is brand new.Shipping is FREE for this item.
  We strive to ship everything out within a day of purchase.
  Please click on our store link above to view more great items like this.LOCATION:
