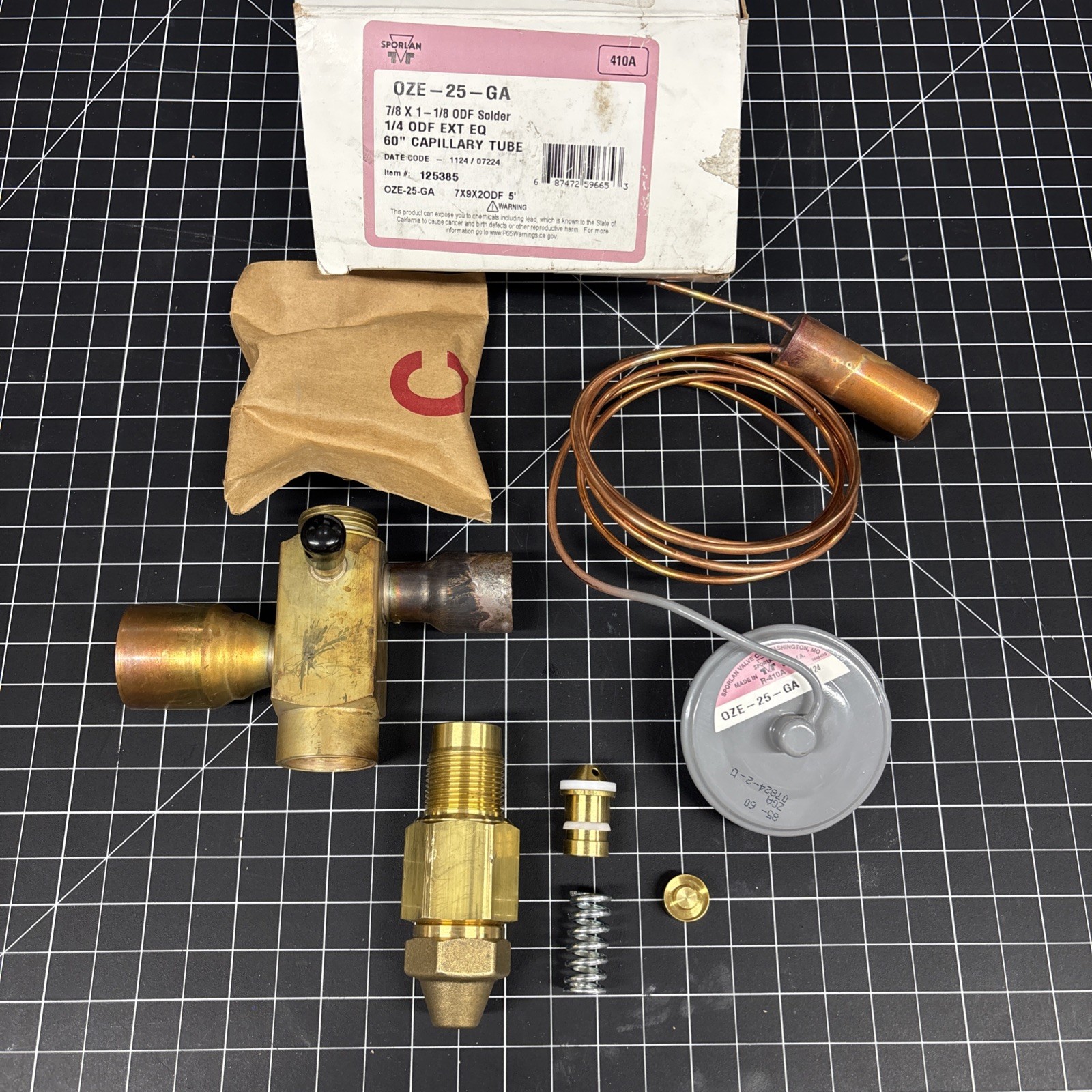

Sporlan OZE-25-GA Thermostatic Expansion Valve (TXV) — 25 Ton R-410AMPN: OZE-25-GA | Sporlan #125385 | 7/8" x 1-1/8" ODF | Used, Partially installed but zero operational time. — Genuine Sporlan / Parker Hannifin Sporlan (Parker Hannifin) OZE-25-GA Type O Balance PortThermostatic Expansion Valve — Sporlan #125385.All internal components are in new, unused condition, but body appears to have been partially installed.
SPECIFICATIONS:- Sporlan Part Number: 125385- Capacity: 25 Ton Nominal- Refrigerant: R-410A (GA Thermostatic Charge — Pink Element)- Inlet: 7/8" ODF Solder- Outlet: 1-1/8" ODF Solder- Equalizer: External | 1/4" ODF- Capillary Length: 60" (5 ft)- Element: KT85 Powerhead, Long-Life Replaceable- Bulb: 3/4" x 2"- Strainer: 12 Mesh Permanent- Body: Brass Bar Stock | Max Pressure: 425 PSI- Weight: 2.28 lbs
CROSS-REFERENCE PART NUMBERS:Sporlan OZE-25-GA | 125385 | OZE25GA | Parker Hannifin OZE-25-GA
KEY FEATURES:✅ Balance Port Design — stable operation regardless of system pressure drop✅ Adjustable Superheat — field adjustable✅ Replaceable KT85 Power Element — no full valve replacement✅ Accessible Internal Parts — cleanable & inspectable✅ Factory Tested — positive leak-free performance✅ Synthetic Seat — tight shut-off during off cycles
COMPATIBLE APPLICATIONS:- Large commercial split systems and rooftop units (RTUs)- Commercial air conditioning — 25 ton R-410A systems- HVAC systems requiring Type O TXV with external equalizer- Systems using 7/8" liquid line x 1-1/8" suction connection
Ships fast — carefully packaged to protect the capillary tube.
