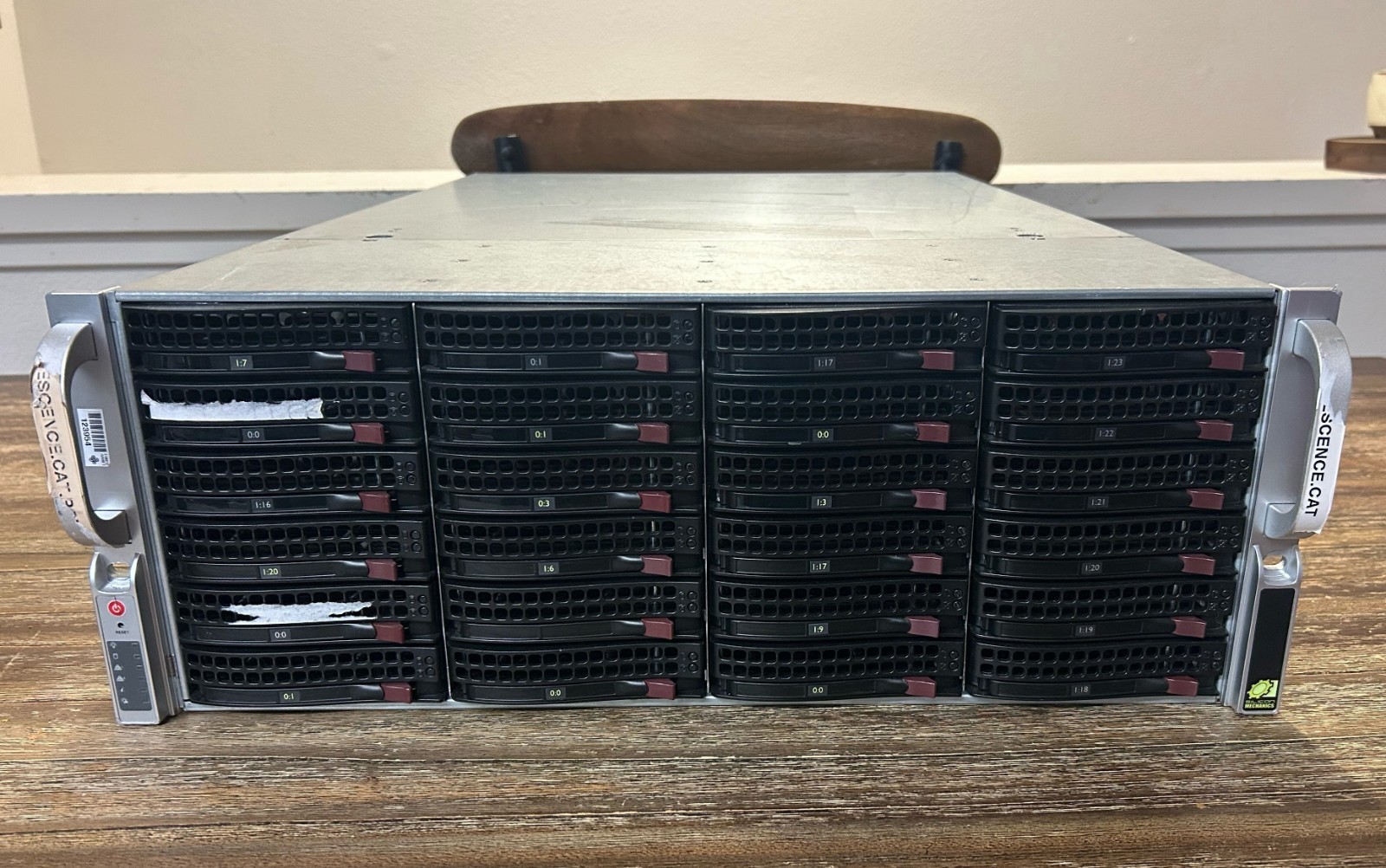

Supermicro CSE-846 24-Bay 2x E5-2620 256GB Dual SAS2308 24 Caddies For Sale

Supermicro CSE-846 / Silicon Mechanics-branded 4U 24-bay storage server in used condition.

Includes all 24 front 3.5-inch hot-swap drive caddies. The caddies are empty—no hard drives are included.No complete rack rail kit is included. Any inner rail pieces visible in the photographs will remain attached.

• Supermicro X9DRH-series dual-socket motherboard
• 2x Intel Xeon E5-2620 processors
• 12 total physical cores / 24 threads
• 256GB DDR3 ECC registered memory
• 2x Broadcom/LSI SAS2308 storage controllers
• Controllers detected using the Linux mpt3sas driver
• Dual onboard Ethernet ports
• Dedicated IPMI management port
• 2x hot-swappable power supplies
• All 24 front hot-swap caddies included
• Front rack handles/ears installed

Testing performed:
• One complete Memtest86+ pass completed with 0 errors
• Both processors and all 24 threads detected
• 30-minute stress-ng CPU test completed successfully using all 24 threads
• CPU temperatures approximately 33–41°C after testing
• Both onboard Ethernet ports established link and were checked individually
• Both SAS2308 controllers detected by Linux
• Both power supplies tested
• Fans operating
• IPMI verified
• No relevant hardware, ECC, MCE, or controller errors observed in the Linux system log during testing

Important storage disclosure:
The SAS controllers were detected successfully, but the drive backplane and individual drive bays were not functionally tested with hard drives. No drives or operating system are included.

Cosmetic condition:
The chassis has scratches, scuffs, old inventory labels, handwritten drive-slot labels, and label residue consistent with prior commercial/institutional use. Please examine all photographs for the exact cosmetic condition. No major structural damage was observed.

• 24 empty drive caddies
• 2 power supplies and power cords

The server will be carefully packed for shipping.
