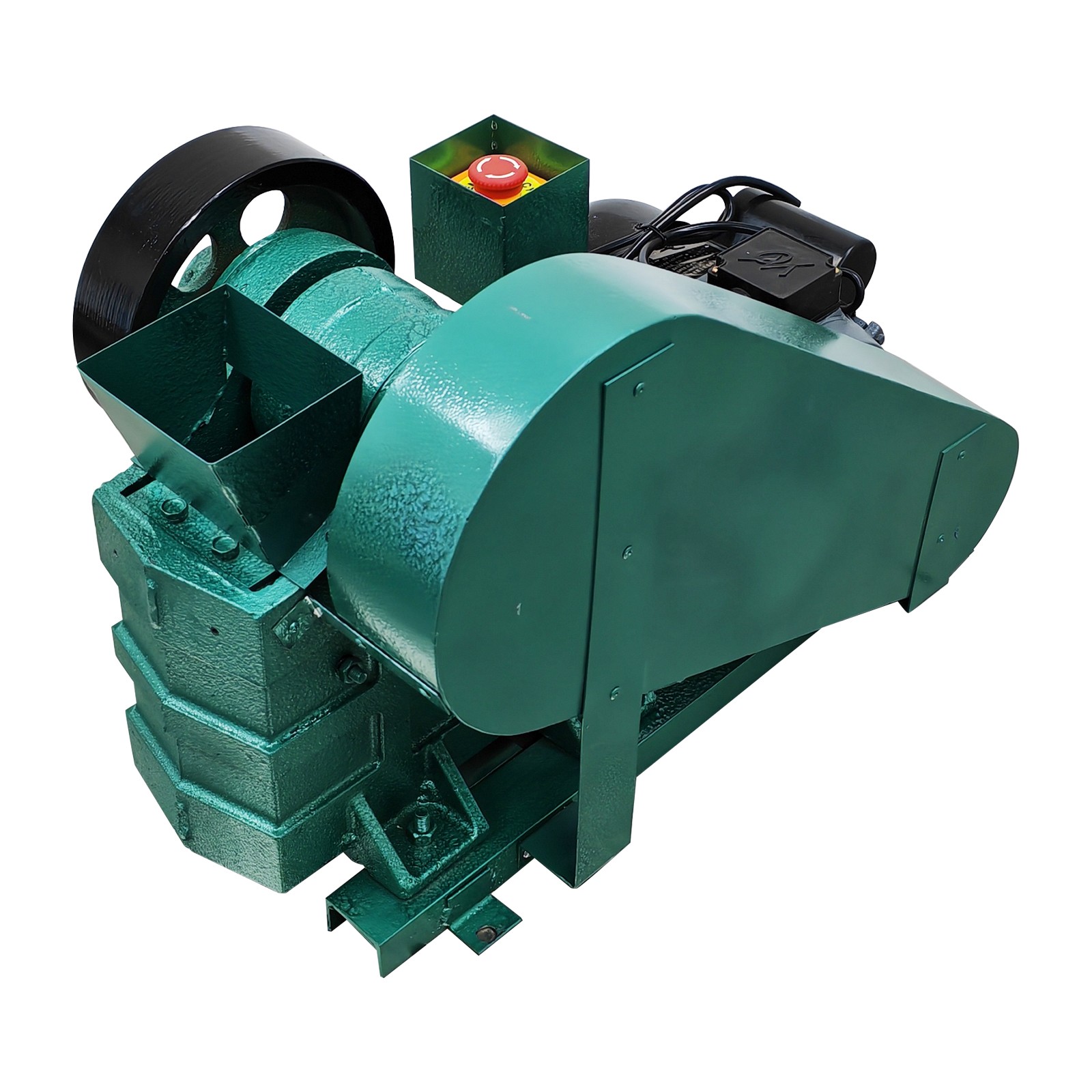

220V100X60 Adjust Jaw Crusher Rock Ore Slag Steel Coal Stone Crushing
This jaw crusher is made of manganese steel which has higher hardness than carbon steel.
Suitable for crushing materials: Calcite, talcum, cobblestones, kaolin, slag, steel slag, diabase, coom, coalgangue, maifanstone, basalt,
iron ore, quartz sand, CaCO3, bentonite ect.
Attentions:
1.Install the machine on a sturdy base to avoid uneven force.
2.Put the side of strap against the wall for safety.
3.For the convenience of outlet, install the machine on a proper height.
4.Check the screws and strap before testing machine.
5.No-load test. It’s available to use after half an hour of test.
6.It’s better to crush medium-hard materials for prolonging the lifespan of the machine.
7.There’s a sample power line on the motor, replace a new line in the same way.
Parameters:
Voltage : 220V
Power:1.5KW
Feeding Inlet Size : 60*100mm
Feeding size: ≤55mm
Output size: 2mm~10mm (Adjustable)
Rotating Speed: 1400 RPM
Capacity: 250kg/h
Maximum Input size 3.9 * 2.3inch,
Output size 0.078-0.393inch
Material: Cast iron
Shipped by a wooden box.
Crushing size can be adjusted.
Crushing size can be adjusted.
1. After receiving the goods, check whether the machine packaging is intact and remove any abnormal situations that may occur during
transportation.
2. Fix the body horizontally and firmly on a solid ground to reduce vibration and noise.
3. The machine needs to be connected to the air switch. After turning on the power, rotate the emergency stop switchto ensure normal operation
of the machine and ensure that the motor direction is consistent with the arrow mark ofthe crusher.
4.Start the motor for a few minutes and load the material into the hopper. Equipment into the normal operation phase,should pay close attention to
whether the abnormal, if abnormal must immediately stop inspection, remove theexception. After the preparation of the sample, should continue to
use the machine running for a minute, and then stop cleaning equipment, remove sieve block and debris.
Note:
2.When using the machine, preventive measures must be taken. During machine operation,hands, clothing,
and tools should be kept away from moving parts to avoid touching them with hands and prevent harm to the
human body.
3.After working for about 2 hours, let the motor rest and cool down before continuing to use it.
Items included:
1 set of 220V 100X60 Mini Jaw Crusher (021088)
You can make order with no worries.
Any concerns just feel free to let us know, we\'ll reply in 24 hours in normal condition.
Handling Time: Shipping is usually made in 1-3 business days after payments cleared. Orders are processed from Monday-Friday; Not on the weekends & public holidays.
Warranty: 6 months\' warranty for the machines, not for the consumables.
We stand behind our products all the item, so even if your warranty period has expired, you can still seek for service or technical support from us with low cost.
