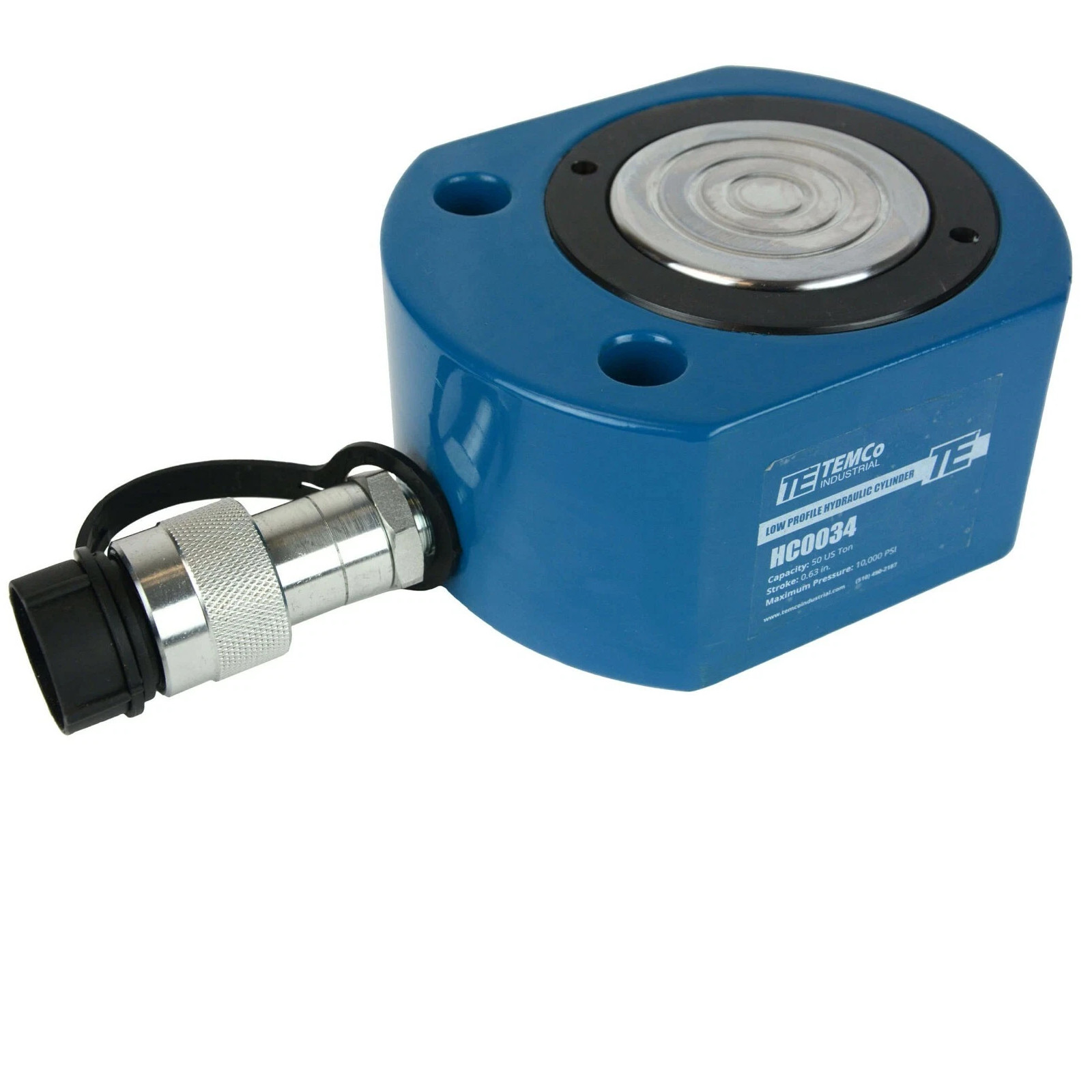

Hydraulic Cylinder - HC0034
Capacity (Tons): 50Stroke (in.): 0.63\"Maximum Pressure (PSI): 10,000Type: Telescoping Hydraulic CylinderAction: Single acting - Pressure extend, Spring returnRam Material: Hard black oxide plated high carbon steelShell Material: Proprietary Heat-treated SteelOil Volume (Cubic in.): 6.163 in3Effective Area (Square in.): 10.974 in2Closed Height (in.): 2.834\"Extended Height (in.): 3.464\"Weight (lbs): 17.7Max Pressure: 10,000 PSIMinimum Operating Temperature: -15°CConnector Type: 3/8\" NPT ISO 14540 quick hydraulic coupler with dust capCoupler Specifications
Standard: ISO 14540Thread (between male poppet end and coupling ring): M30 x 1.5 mmThread: 3/8\" NPTOcclusion Type: PoppetRated Pressure: 10,000 psiRated Flow: 6 GPMSealing Material: Nitrile Rubber (Buna-N, NBR)Interchangeable With:
Enerpac C-604Parker 3000 SeriesSafeway S30 SeriesStucchi IVHP SeriesPerfecting T SeriesSnap Tite 76 SeriesDnp PVM SeriesFaster PVVM Series
![TEMCo HC0034 Low Profile Height Hydraulic Cylinder Puck 50 Ton, 0.63\](img-large/g/kQIAAeSw3alqtgF4/s-l1600/TEMCo-HC0034-Low-Profile-Height-Hydraulic-Cylinder.jpg "TEMCo HC0034 Low Profile Height Hydraulic Cylinder Puck 50 Ton, 0.63\")
