TOGGLER® SNAPTOGGLE® 25014 Heavy-Duty BB Toggle Anchors, Zinc-PlatedSteel Channel, 3/8-3-5/8" Grip Range, For 1/4"-20UNC Fastener Size (Box of 50) Made in U.S.A.
This revolutionary anchorcan turn a two-person job into a one-man install. The TOGGLER SNAPTOGGLE® issuperior to conventional toggle bolts, such as wing toggles or gravity toggles,in more ways than one. The strong plastic straps work in the thickest basematerials and will not break prematurely like other plastic straps. The strapssnap off flush with the wall every time, assuring precise alignment. Inaddition, the metal channel pushes aside insulation. This anchor puts thestrongest toggle bolt in the smallest hole, and allows for removal of bolt orfixture without the anchor falling behind wall. This anchor is strong; it won’tdamage or break through the wall even when vibrated!
Key Features
Anchor affixes to thewall before adding the bolt and fixture, allowing one-person installation andfixture changesMade in USA, and workswith 1/4"-20 UNC-threaded metal bolts (sold separately)Ultimate tensilestrength is 265 lb. in 1/2" drywall and 1,080 lb. in concrete block with a1/4"-20 UNC boltUse one-fourth or less oflisted maximum values for safe working loads (as required by local regulations)Specifications
3/8 – 3-5/8 Inch Grip RangeMetal Channel Material: Zinc-Plated Carbon SteelDrill Diameter: 1/2 inchThread Size: 1/4 – 20 inchesShipping Weight: 1.85 poundsApplications
TOGGLER’s SNAPTOGGLE anchors can be used with almost anymaterial, including: hollow masonry, and wallboard/drywall. It's easy to use – pre-install itwithout a bolt. It's accurate – therugged pre-installation mechanism centers the metal channel in a small hole,before bolt insertion and the bolt won't sag. It's quick – it can be used with a screw gun, and the anchor won'tspin in the hole. Use a 1/4" x 20 bolt with this anchor (see SKY5058).

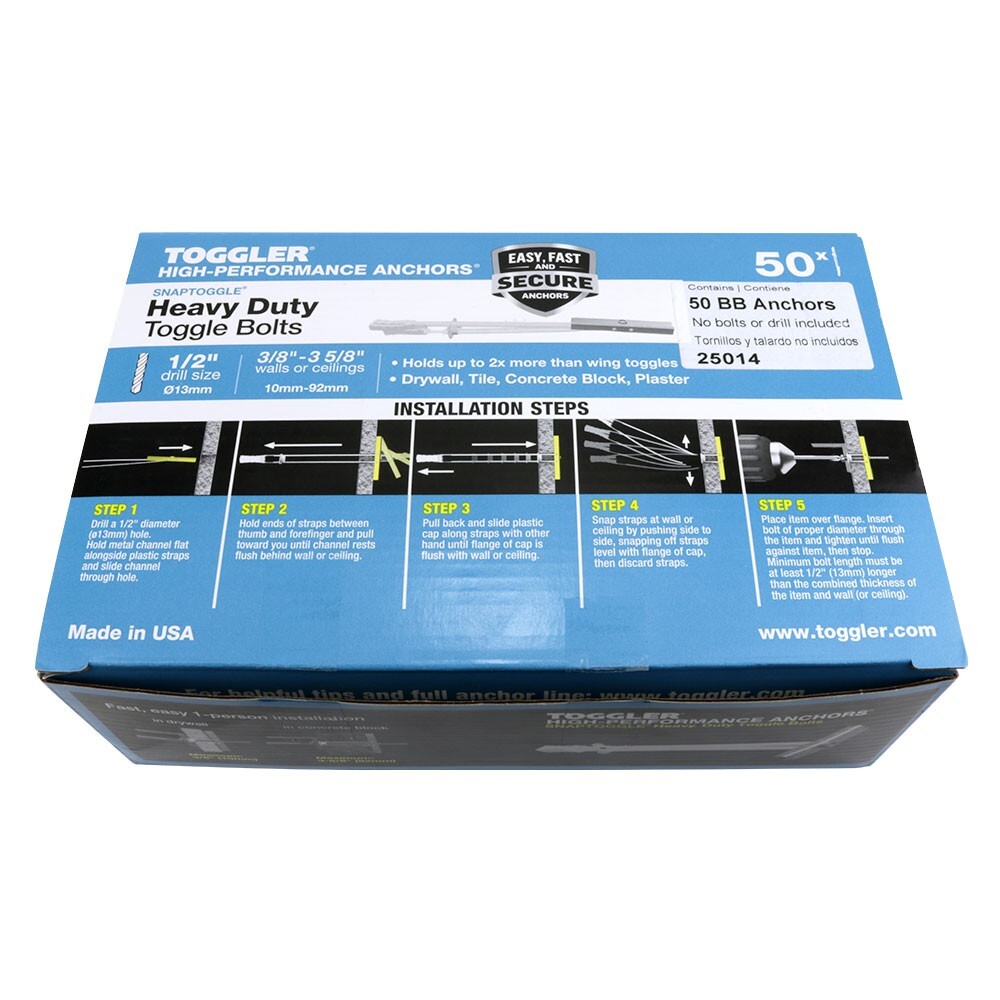

- Drill appropriate sized hole. Hold the metal channel flatalongside plastic straps and slide the channel through the hole.
- Hold the ends of the straps together between thumb andforefinger and pull toward you until channel rests behind the wall. Ratchet capalong straps with your other hand until flange of cap is flush with wall.
- Place your thumb between the straps at the wall. Push yourthumb side to side, snapping off the straps level with the flange of the cap.
- Place item over flange. Insert bolt and tighten until snugagainst item, then stop. Use a machine screw or bolt to thread in the metalchannel.
How much will ithold?
356lbs in 5/8" Drywall1,080lbs in Concrete1,283lbs in 1/2" Steel Plate(Industry safety standards recommend 1/4 of ultimate testload.)Perfect for FlatPanels – In case you were wondering if TOGGLER’s anchors, lags, and screwsare suitable for mounting flat panel displays, you can stop wondering and restassured that they do. In fact, we highly suggest that you use TOGGLER hardwarefor its reliability. So, whether you’re mounting a TV above your fireplace on abrick wall, or even on just drywall, TOGGLER has you covered. Their anchors,lags, and screws are ideal for any masonry and/or hollow wall install.
TOGGLER® – Sinceits inception in 1968, TOGGLER Anchor Systems has continued to invent,manufacture, and sell only TOGGLER® BRAND Anchors, the highest quality, andbest-performing anchors on the market. All are designed to solve real problemson the job site, and, at home. Their high-strength, multi-functional TOGGLER®High-Performance Anchors™ provide fast, easy, and secure fastening in almostall applications and substrates – from light- to heavy-duty. They are the onlyAmerican anchor manufacturer that makes all of its anchors in the USA.
