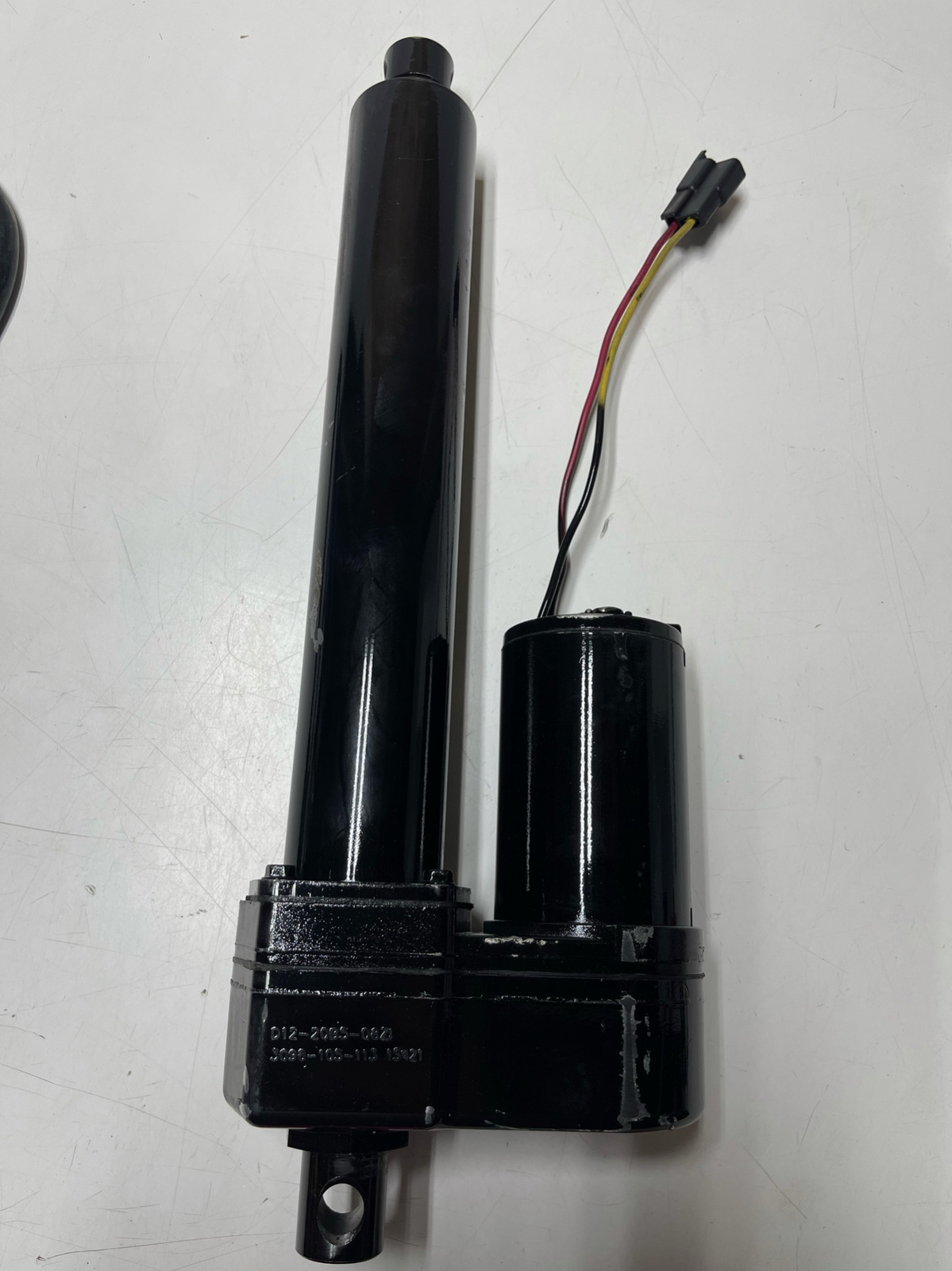

Thomson Electrak 10 D12-20B5-08Z1 Linear Actuator 12V DC 12VDC 1000lbf Zico 3098 Thomson Electrak 10 D12-20B5-08Z1 Linear Actuator 12V DC 12VDC 1000lbf Zico 3098
These are brand new but they do have some paint scuffs on them from rubbing against one another in the crate.
Part: Electrak 10, 12 Vdc, 1000 lbf, 8 in, No response, Cable length 7 in, Connector, Adapter at 0° (Standard), 0.45 in/s Travel Rate @ Full Load
Adapter PositionAdapter at 0° Holding Brake Cable TypePackard Electric 56 series 2984883 with terminal 2962987 End Play, Max0.04 inresponseNo response Gear Reduction20:1 IP RatingIP66 Manual OverrideNo MaterialCopper; Steel; Zinc; Aluminum; Plastic Motor ControlNone Nominal Stroke8 inProtection, End-of-strokeClutch Protection, OverloadClutch Screw TypeBall Temperature Max150 °FTemperature Min-15 °FVoltage12 Vdc Weight12 lb
If there\'s something you\'re not sure about or have a question about anything, just send us a message by clicking \"Ask a question\" below the listing. Free Shipping is only for the inner 48 states (Large Freight Shipments Do Not Apply).
,
