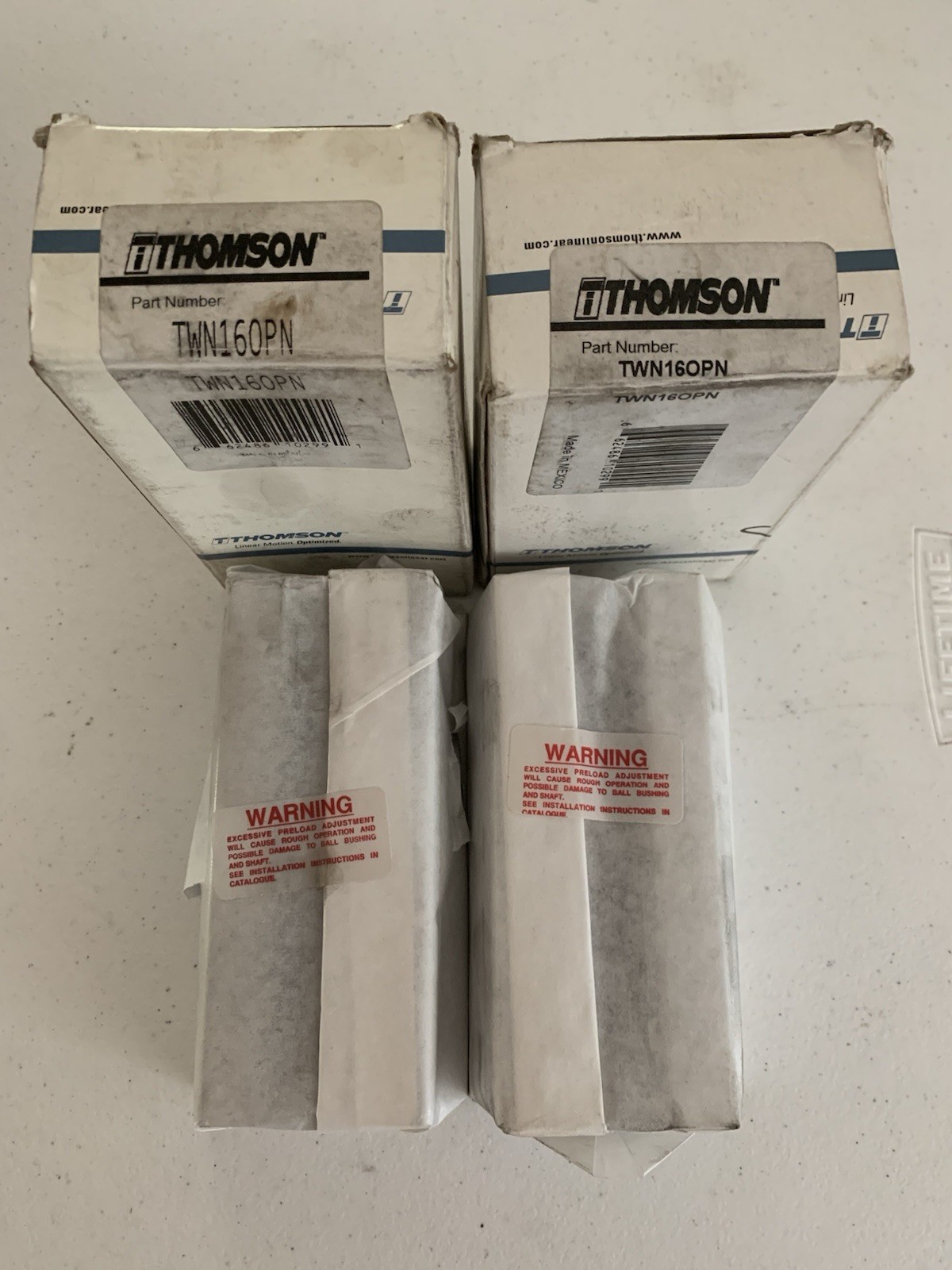

Thomson TWN160PN Pillow Block Bearing Manufactured by Thomson Linear, a high-performance Super Ball Bushing Twin Pillow Block Bearing designed for 1” linear shafting applications.
Bore Diameter: 1.000 in
Housing Style: Open Type (designed for continuously supported shafts)
Pillow Block Type: Twin / Tandem (houses two linear ball bushings for increased stability)
Alignment: Self-aligning
Dynamic Load Capacity: 1,560 lbf
Housing Material: Aluminum Alloy
Maximum Operating Temperature: 185 °F (85 °C)
Key Dimensions:
Overall Length: 6.00 in
Overall Height: 2.00 in
Overall Width: 3.25 in
Mounting Hole Center-to-Center:
4.50 in
Mounting Surface to Shaft Center:
1.187 in
