TiAL GENUINE 304L Stainless MVS 38mm Black Wastegate With V-Band &Flanges MV-S:
$354.90

Tial Wastegate MV-S 38mm V-Band External 0.3 to 1.7 Bar All Springs ( Black )
Part #MVS-BK

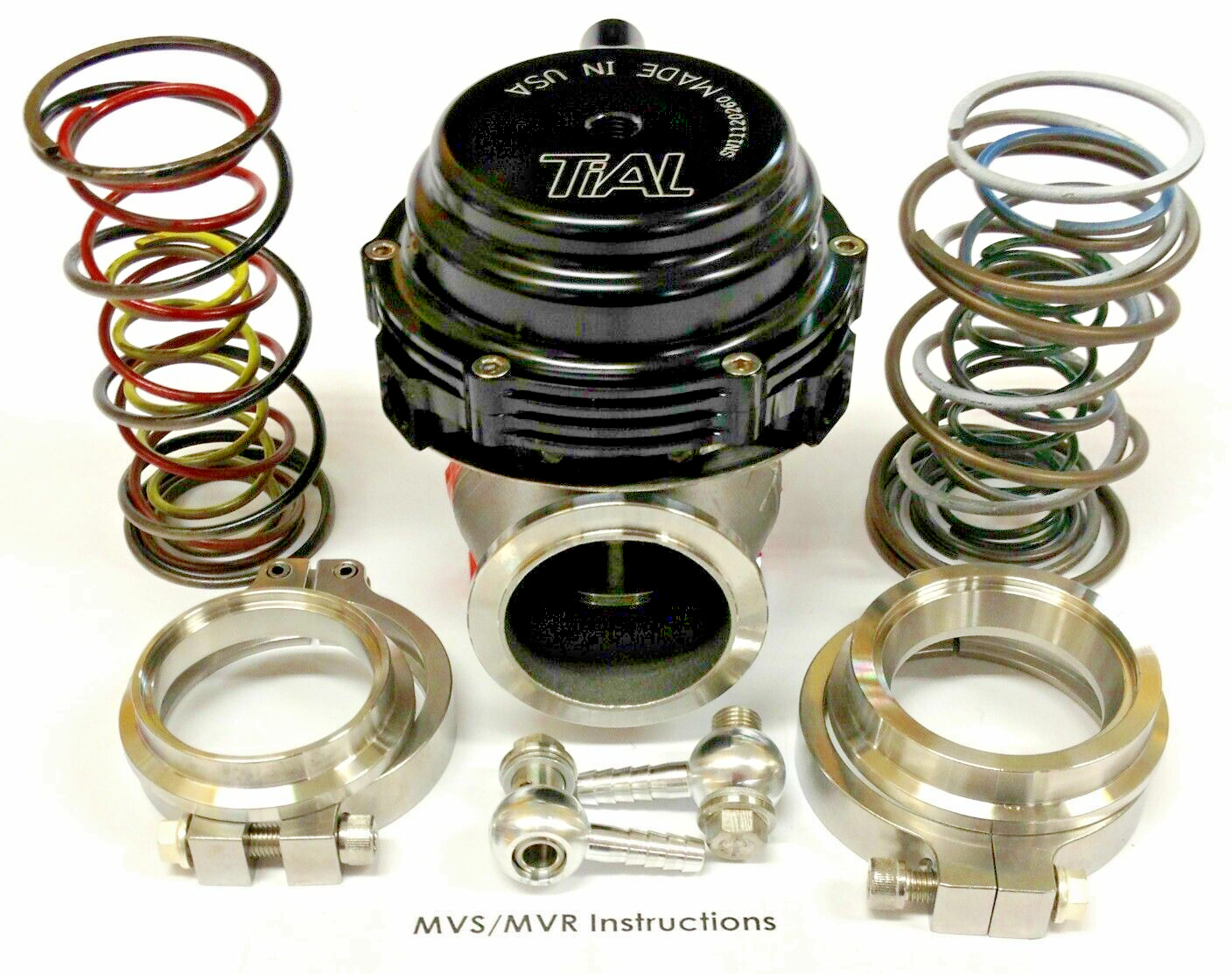

What\'sin the Kit

MV-S Assembly
Inlet V-band Clamp & Flange
Outlet V-Band Clamp & Flange
CNC machined air and coolant fittings
Plugs for unused air ports
All six optional springs

About

The MV-S 38mm unit is much more compact than its F38 predecessor - standing only 3.7” in height. The v-flanged design allows for significantly more flexibility for fabrication and temp alloy is used for valve and stainless steel valve housing will offer longer product life compared to competing designs.

High temperature silicone reinforced actuator diaphragm.

Stainless Steel actuator spring gives consistent pressure at high temperature.

Stainless Steel is used for the valve seat, and valve bushing.

All Stainless Steel hardware.

Mating weld flanges are 304L.

3 lower ports and 2 top air signal ports for easy install, no need to rotate the actuator top at all, plugs included for unused ports.

Ultra compact design fits in very tight spaces, the unit stands only 3.7\" tall.

V-Band inlet and outlet make install easy, flanges and clamps are in the box!

Integrated -4 AN water cooling ports that cycle a small amount of coolant through the actuator housing to keep the temperatures down in extreme conditions.
