US 2\"-18\" in Stroke Linear Actuator 6000N/1500N/1000N Max Lift 12V Volt DC Motor For Sale

Product Description2\"-18\" in Stroke Linear Actuator 6000N/1500N/1000N Max Lift 12V Volt DC Motor

We also provide thePositive Inversion Controllerfor the linear actuator, if you need,PlsClick Here

Package Included:

*1PCS DC 12V Linear Actuator.
* 2PCS Mounting Brackets W/ 2PCS

Bolt and 2PCS Cotter Pin.

1000N/1500N Linear Actuators

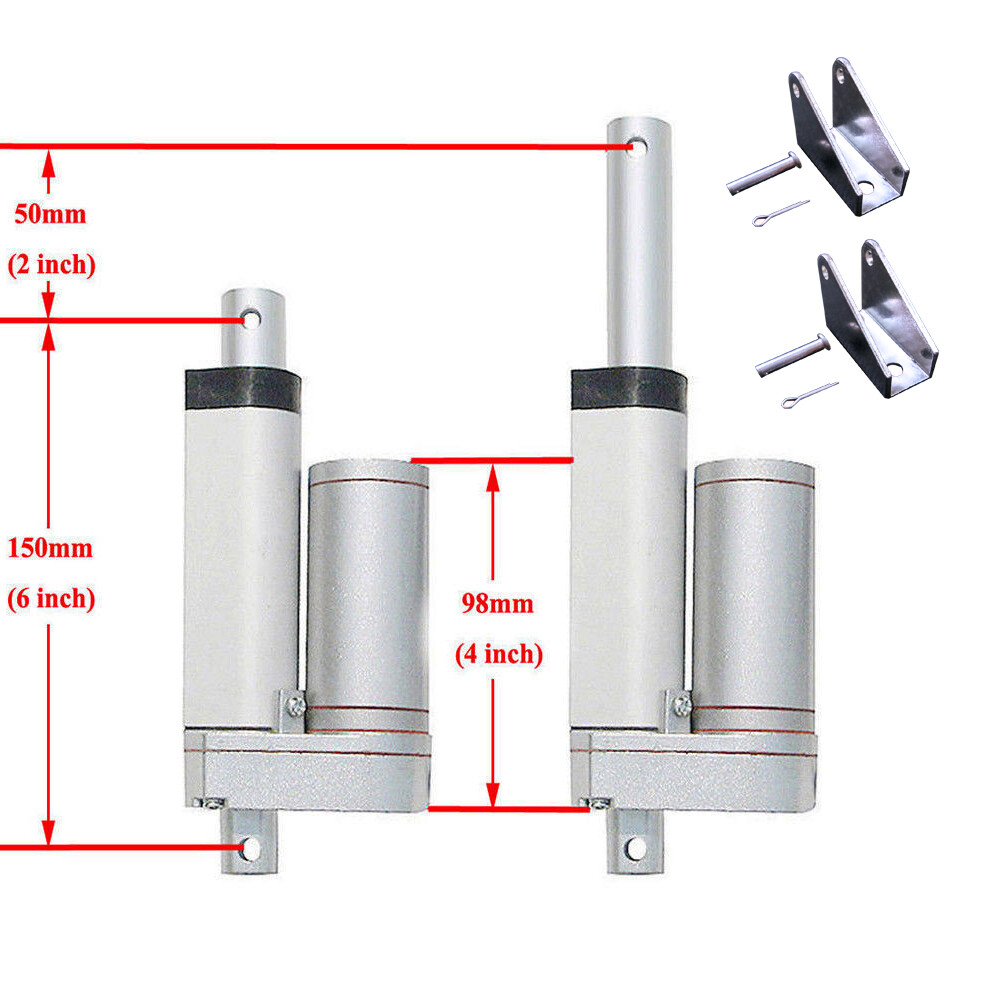

Dimensional Drawing:

Stroke Length

2\"

4\"

6\"

8\"

10\"

12\"

14\"

16\"

18\"

Stroke Length

50mm

100mm

150mm

200mm

250mm

300mm

350mm

400mm

450mm

Retracted Length

155mm

205mm

260mm

320mm

370mm

420mm

470mm

550mm

600mm

Extended Length

205mm

305mm

410mm

520mm

620mm

720mm

820mm

950mm

1050mm

Note: Please check the dimensions carefully and choose the right one as you need.

Specification:

Product Name

Linear Actuator

Input Voltage

DC 12V

Speed

5.7mm/s

14mm/s

Max Push Load

Max Pull Load

Power Cord Length

1.5Meters

Duty Cycle

25%

Operating Frequency

20%

Material

Aluminum Alloy

Color

Silver Grey

Operation Temperature

-26 ° C ~ +65 ° C

Protection Class

IP54

No-load Current

< 0.5A

Max load Current

3A

Certification

CE

Warranty

Standard 1 Year

For more details of our 1000N/1500N Linear Actuators,PlsClick Here

6000N Linear Actuators

Dimensional Drawing:

Stroke Length

100mm/4\"

150mm/6\"

200mm/8\"

300mm/12\"

400mm/16\"

450mm/18\"

Retracted Length

260mm/10.24\"

310mm/12.20\"

360mm/14.17\"

460mm/18.11\"

580mm/22.83\"

650mm/25.59\"

Extended Length

360mm/14.17\"

460mm/18.11\"

560mm/22.05\"

760mm/29.92\"

980mm/38.58\"

1100mm/43.31\"

Note: Please check the dimensions carefully and choose the right size as you need.

Specification:
Input Voltage: DC 12V
Material: Aluminum Alloy
Color: Black, Silver
Power Cord Length: 1 Meter / 40inch
Load Capacity: 6000N/1320Lbs
Max Push Load: 6000N/1320Lbs
Max Pull Load: 4000N/880lbs

Speed: 4.5mm/s

Stroke Length: 100/150/200/300/400/450mm Stroke Optional

No-load Current: 1A

Max Load Current: 3A

Duty Cycle: 10%
Operating Frequency:2min/18min (Max)

Noise Level: 48db

Protection Level: IP54

Working Temperature: -26°C to +65°C
Notice: Built-in limit switches,not adjustable after leave factory.

For more details of our 6000N Linear Actuators,

PlsClick Here

Application
* Autos;
* The wedding system;
* Solar tracking system;
* Agricultural machinery;
* Industrial electric lifting system;
* The medical electric bed, surgical bed, traction bed;
* Chair for medical use: Electric wheelchair, Massage Chair, dental chair;
* Electric equipments: Electric sofa, Electric lifting lever, Electric booth, Electric sunroof, etc
