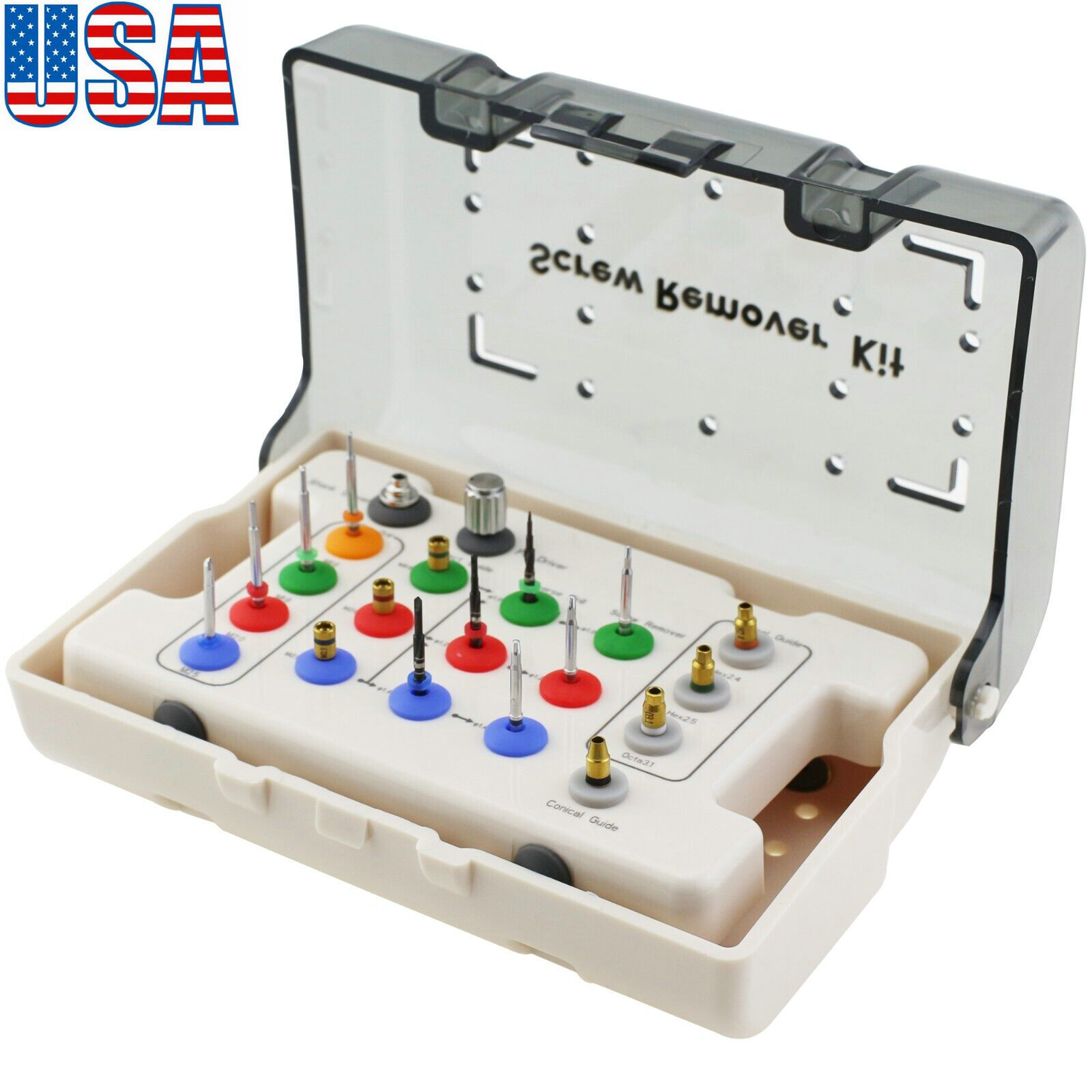

US Universal Implant & Fractured Screw Removal Kits Master FSRK-02 NeoBiotech
Ship from US warehouse
MCT Fixture & Fractured Screw Removal:Made in South Korea by MCTBIOThe implant fixture and fractured screw removal kit is the only kit you need to remove failed dental implants and fractured screws.Our new Next Generation Kit features 7 extra parts at the same unbeatable price! Watch videos below.Remove a fractured/broken screw and save the implant, orRemove a failed implant while minimizing trauma to the bone.This kit include the following items
- Fixture removal drills FRD-01 (mini), FRD-02 (regular), FRD-03 (Wide), Adapter 1
- Screw removal guide3i Internal NP,3i Internal RP,External mini,External Regular,ITI Octa,Nobel Replace Tri-Lobe RP,Nobel Replace Tri-Lobe WP,Nobel Replace Tri-Lobe NP,Zimmer TSV 3.7/4.7,Zimmer TSV 5.7,Astra Hex,Noble Active NP,Noble Active RP,FRW-01 Wrench
- Screw Removal Drill & TapSRD-01,SRT-01,SRT-02 (Wide),SRA-01(Adapter)
- Fixture Removal Trephine BurFRT-3.7/4.4 (Ø3.5),FRT-3.9/4.6 (Ø3.7),FRT-4.3/5.0(Ø4.1),FRT-4.7/5.4 (Ø4.5),FRT-5.2/5.9 (Ø5.0),FRT-5.7/6.4 (Ø5.5),FRT-6.2/6.9 (Ø6.0),SRG-H,Adapter H
GSM Broken Screw Remover Kit
1. Claw
This is a surgical tool that removes a screw that has become fractured inside the Fixture.
After selecting the size that is appropriate for the size of the screw that is to be removed, it must be used by connecting a guide to the Fixture (Conical/Internal/External Guide). Then it is connected to the Shank Driver, and the fractured screw can be removed by rotating by hand in the reverse direction. If the fractured screw cannot be removed using the Claw, it must be removed using the Reverse Drill and the Screw Remover.
Product Name
Fractured Screw size
Product Name
Fractured Screw size
CD16
M1.6
CD20
M2.0
CD18
M1.8
CD25
M2.5
2. Reverse Drill
- This is a tool that creates a hole on the fractured face of the Screw that will be used bythe Screw Remover.
-After selecting the appropriate Reverse Drill for the size of the screw that needs to beremoved, it must be used by connecting a guide for the fi xture (Perfect/ Conical/Internal/External Guide). The depth of the drill can be adjusted from 1 mm to 3 mm, becausethe Drill body has markings.
-The removal of an M1.6 size Screw Should utilize the Claw.
-Although diff erent manufacturers produce diff erent sizes of abutment screws, except inrare cases, typically they utilize screws of Size M1.6, M1.8, M2.0, or M2.5.(‘M’ stands for a metric screw. The number indicates the external size of the screw. Forexample, “M1.6 Screw” indicates that it is a metric screw the external diameter of Whichis 1.6 mm).
Product Name
Diameter(Ø)
Fractured Screw size
RCD10
Ø 1.0
M1.8
RCD12
Ø 1.2
M1.8
RCD14
Ø 1.4
M1.8
3. Screw Remover
-This is a device that removes a fractured screw. Insert a Screw Remover that isappropriate for the size of the hole that has been formed using the Reverse Drill androtate at a low speed (at or below 80 rpm) in the reverse direction.
-The Screw Remover was designed in a tapered shape so as to increase, as it turns, theamount of friction, which is necessary to loosen the Screw.
Product Name
Diameter(Ø)
Fractured Screw size
SR10
Ø 1.0
M1.8
SR12
Ø 1.2
M2.0
SR14
Ø 1.4
M2.5
4. Shank Driver
- This is a surgical tool that was designed to be connected to the Screw Remover to allow the use of the hand, Torque Wrench, or Ratchet.
Product Name
Standard
Applicable Products
SHD00
for Hand or Ratchet
Screw Remover
(SR10, SR12, SR14)
5. Perfect Guide & PG Hand Driver
- The Perfect Guide acts as a Guide for the Reverse Drill. It is used when the screw is fractured at the lower part of the female screw inside the Fixture. It is connected to PG Hand Driver and is directly applied to the Fixture female Screw.
- The Perfect Guide can be safely used because it has a stop structure inside that prevents the Reverse Drill from drilling more than 2 mm.
6. Conical, Internal, External Guide
- They act as the Guide when using the Reverse Drill. They are used when the Perfect Guide cannot be used, or if the screw was fractured at a location deeper than 2 mm into the lower part of the female screw inside the Fixture.
- The Guide appropriate for connecting to the Fixture must be selected.
7. SR Driver Holder
This can be easily affixed to the Fixture by connecting it to the 3.5 Double Hex part of theConical, Internal, or External Guide.
