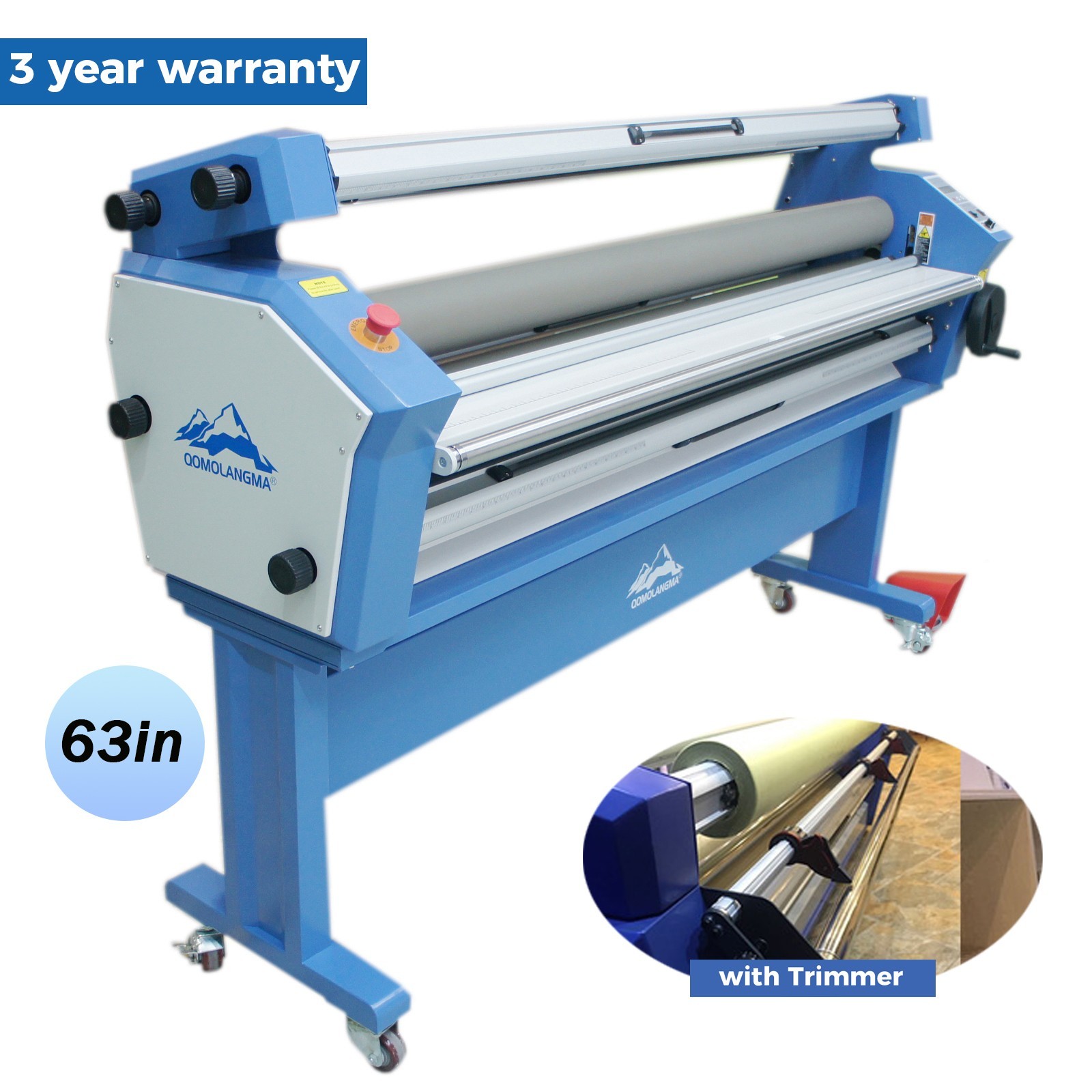

USA-63\" Full-auto Wide Format Cold Laminator, Heat Assisted with Trimmer For Sale

US Stock Qomolangma 63in Full-auto Wide Format Cold Laminator, with Heat Assistedwith Trimmer

Qomolangma 63in full-auto wide format roll to roll top heat assist laminator and mounting machine. No wrinkle, no silvering, no slidding!
Equipped with heat on the top roller to activate the adhesive on your pressure sensitive lamination film, you can rest assured that you will achieve the perfect finish every time.

3 years warranty!!

Door to Door Service by truck for USA customers

24-hour technical support by email or calling

We have USA warehouse, it can save much shipping fee and time for you.

All of our products are high quality, perfect aftersales service. please buy with confidence!

Any questions, plz send us message, we will do our best for you.

Used for:A perfect fit for entry level customer, who is looking for an affordable and professional cold laminator for their projects. This new model can be widely used for pre - masking vinyl graphic, mount prints on substrate, over laminating inkjet prints and so on.
Cold roll laminators are the perfect option for someone looking to enter the wide format graphics market. Equipped with all of the features needed to produce most applications, Qomolangma cold roll laminator promises quality, performance and safety – at an affordable price.
• Great for mounting prints to boards
• Over laminating digital prints
• Applying application tapes, applying double side adhesives and vinyl

Features:
• Good color reducibility and light transmittance, free of bubbles and snowflake point!
• Free heavy duty floor stand with caster wheels
• Laminates graphics up to 63in wide
• Drop in type interchangeable 3 inches aluminum shaft
• Manual nip adjustment up to 1.38 inch for handling of most substrates
• 102mm (4in) bigger rollers for best quality laminating control
• Safety eyes for increased operator safety
• Foot switch for hands free operation
• Removable front worktable for easy film setup
• Adopt new - style aluminum alloy supporting roller.
• One side hand crank lift up system
• Button type control panel
• Variable speed control
• Forward and reverse direction control
• E-stop and photocell installed for safety
• Both auto and foot pedal switch mode
• Equipped with Trimmer function
• Removable pressure plate
• Stand assembled at customer site

Qomolangma 63in full-auto wide format roll to roll top heat assist laminator and mounting machine.
Roller maximum load capacity: 250 kg (551.16lbs)

FMJ-1600-WA-PLUSMax. Working Width1600mm (63in)Variable Working Speed0 - 6m / min (19.685ft / min)Max. Nip Opening35mm (1.38in)Roller Diameter102mm (4in)Top Roller MaterialSilicon rubberBottom Roller MaterialNatural rubberDrive Motor90WPower Consumption1400WPower Requirement

AC110V / 60Hz, 16A

Maximum Internal Diameter of Film Core3 inchesDiameter Rolls of Media

Roll of laminates: 180mm (7.1in)

Roll of prints: 150mm (5.9in)Forward / ReverseYesFoot PedalYesAuto Rewind Liner PickupYesAfter Laminating PickupYesEmergency StopsYesMachine Size2020mm x 550mm x 1250mm (79.5in x 21.65in x 49.2in)Net Weight204kg (448.8lbs)Shipping Dimensions2105mm x 605mm x 900mm (83in x 23.8in x 35.4in)Gross Weight258kg (568.8lbs)Maximum heating temperature40℃ (104F)

Customer\'s Case:


Detail Pictures:

Qomolangma Laminator\'s Advantages:
Hand crank and electric lifting: compared with pneumatic lifting structure, the roll parallel setting is more stable, meet the needs of high end customers with high laminating quality request, and there are fewer after-sales problems;
Rubber roller: the original raw rubber roller has good elasticity and durability compared with the recycled rubber;
Mechanical installation: the sheet metal is cut by laser to ensure the correct installation of the mounting hole, so as to ensure that the unwind/rewind shaft is parallel and finishing lamination is without wrinkle and air-bubble;
Electric wiring: the design of electrical structure is humanized and easy to operate.

Application:
Sign & display, window graphics, banner, poster, POP, vehicle wrapping, wallpaper, cutting sheet sticker, labels & decals, proof, POS display, package, sign board, flyer, document finishing, floor graphics, rigid and flexible indoor displays, board and many more.

Package:

Exhibition Gallery:
